BV Series PVC Wiring Cable
discuss personally
Basic info
Brand Wone
Series BV
Product Detail

Executive standard

GB/T5023.3-2008  IEC60227-2007-3:1997 JB/T8734.2-2012

Usage

This product is applicable to power units with rated voltage up to and including 450/750V

The maximum allowable operating temperature of the conductor

Max permissible working temperature of cable conductor for long-term operation is 70 ℃.

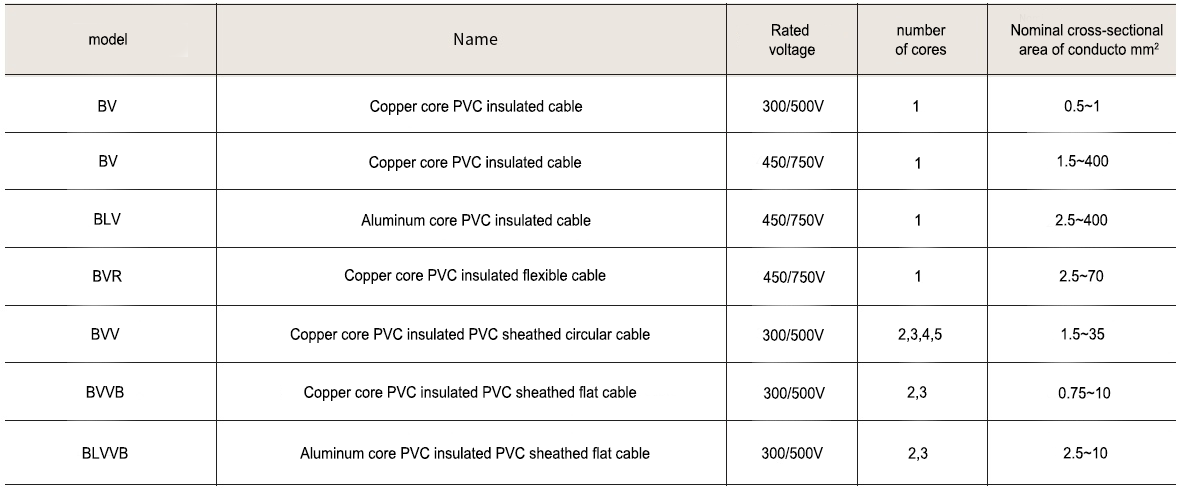

Model, name, rated voltage and conductor cross-sectional area型号.pngSpecifications and technical parameters

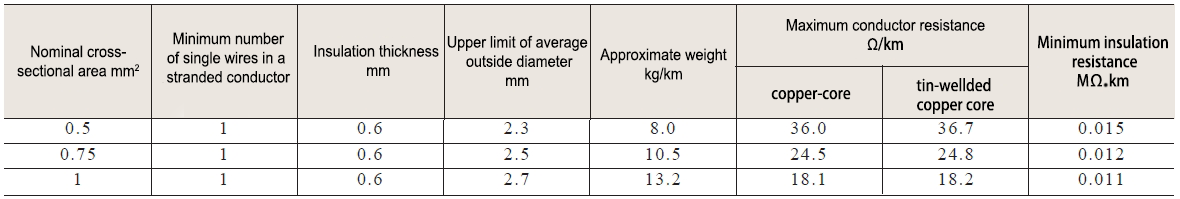

60227IEC01(BV) 300/500V Copper core PVC insulated cableBV.png

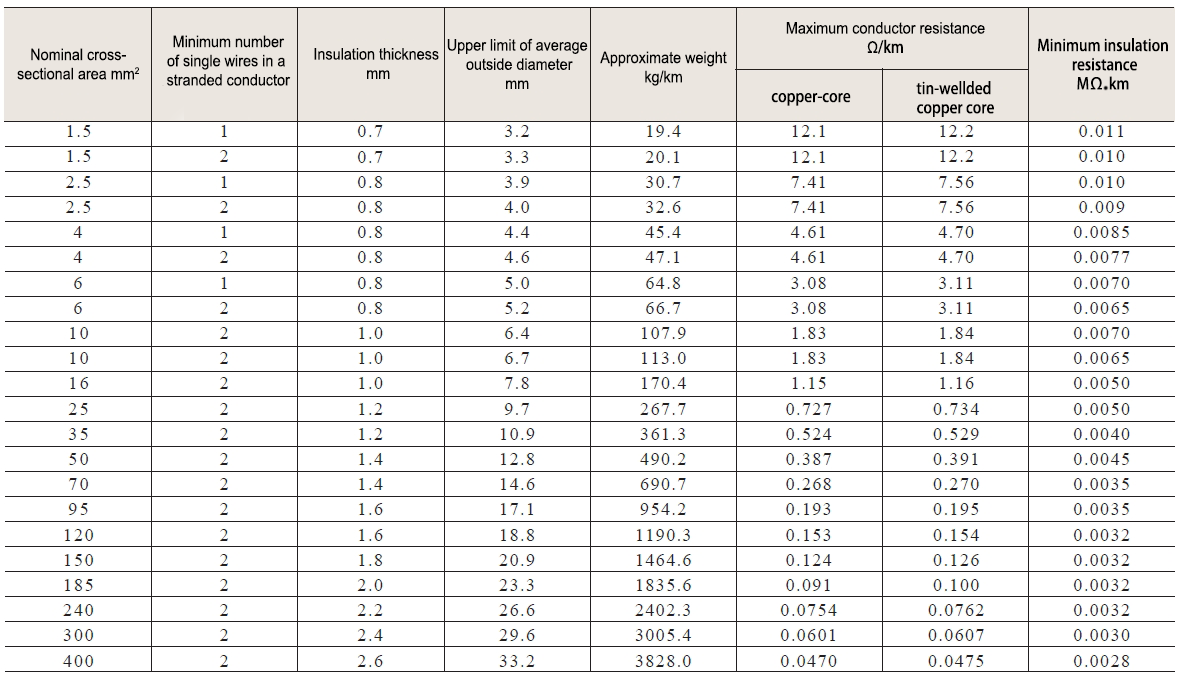

60227IEC05(BV) 450/750V Copper core PVC insulated cableBV2.png

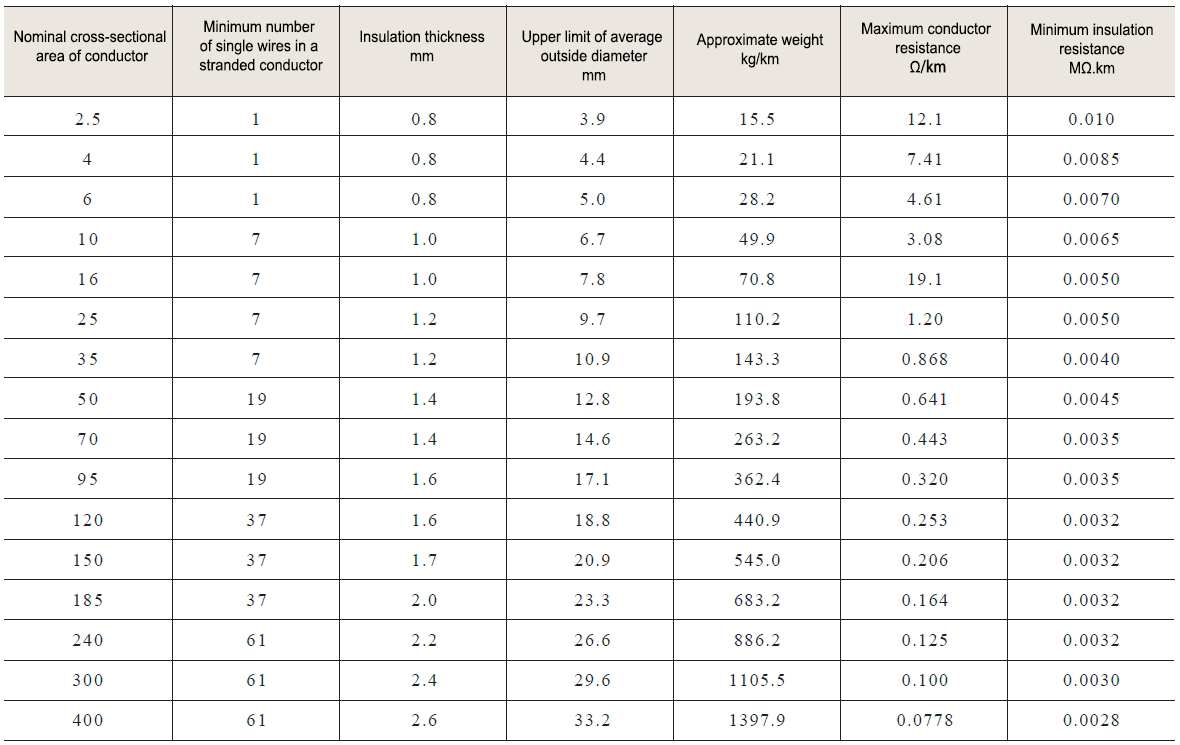

60227IEC(BLV) 450/750V Aluminum core PVC insulated cableBLV.png

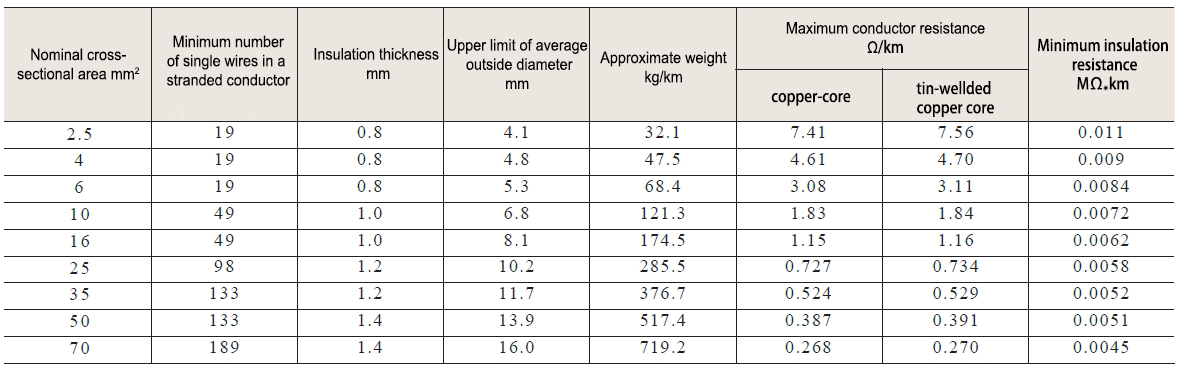

60227IEC(BVR)450/750V Copper core PVC insulated flexible cableBVR.png

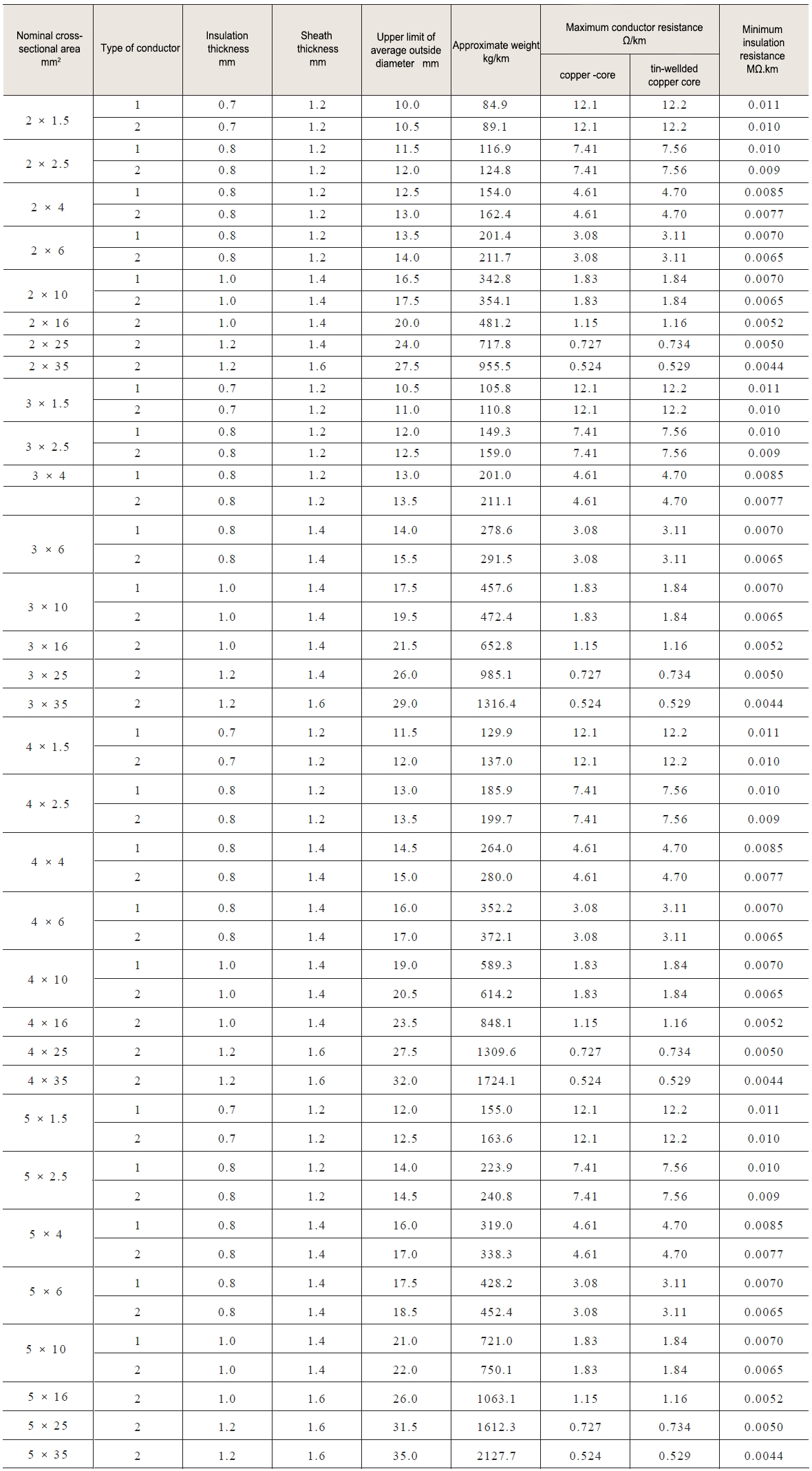

60227IEC08(BVV)300/500V Copper core PVC insulated PVC sheathed circular cableBVV.png

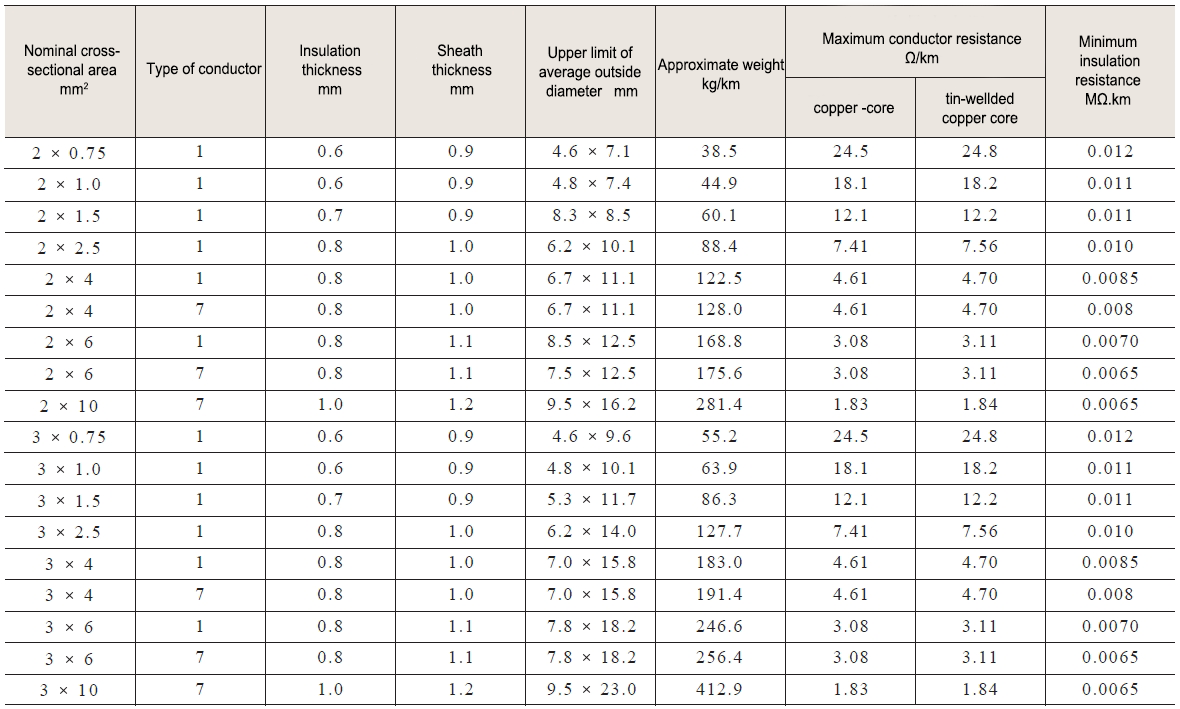

60227IEC08(BVVB)300/500V Copper core Pic ingulsisd Pyc sheathed figt catleBVVB.png

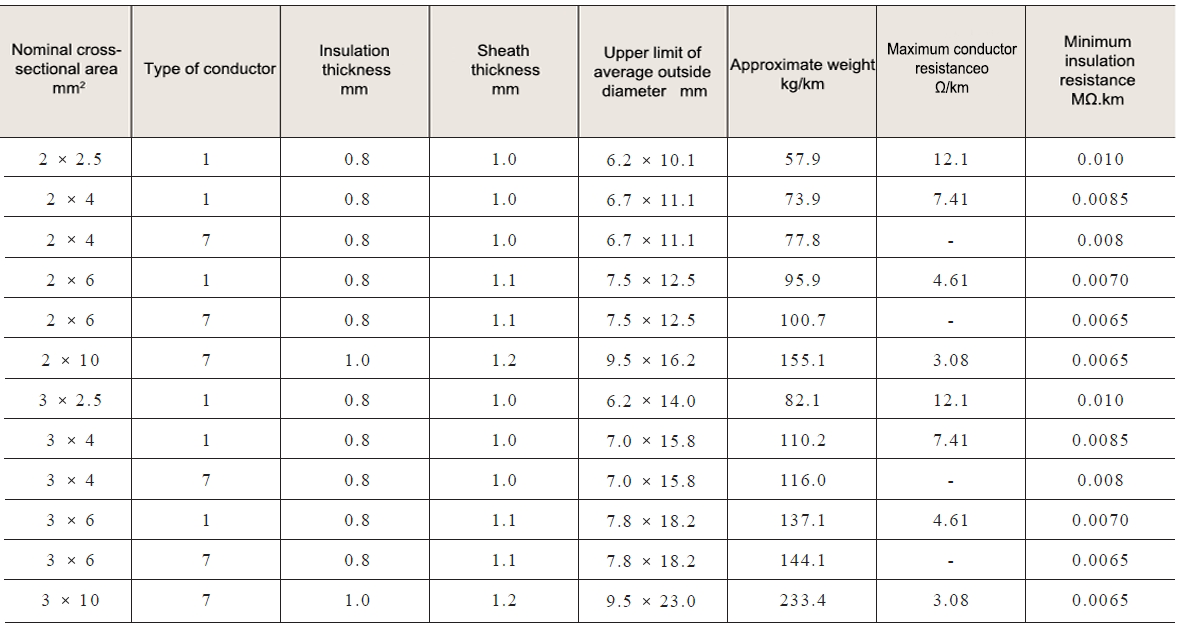

60227IEC08(BLVVB)300/500V Aluminum core Pic ingulsisd Pyc sheathed figt catleBLVVB.png

Q: What kind of cable is BV cable?

A: The BV(R) cable is a copper core PVC insulated wire.

Q: What are the characteristics of BV(R) cables?

A: The copper core of the BV(R) cable has good electrical conductivity and can transmit current stably. The PVC insulation layer provides reliable insulation protection against the danger of electric shock. Its structure is simple, often composed of one or several copper cores and insulation layers, relatively compact. The mechanical strength of this cable is good, and it is not easy to be damaged in general indoor wiring scenarios.

Q: Where is the BV cable mainly used?

A: BV cable is widely used in home decoration, such as indoor lighting lines, socket lines, etc., are basically routed by BV cable. It is also often used in the installation of indoor electrical lines in some small office places and commercial shops. It can well meet the general power transmission needs and ensure the normal operation of electrical equipment.
