| Brand | Wone |

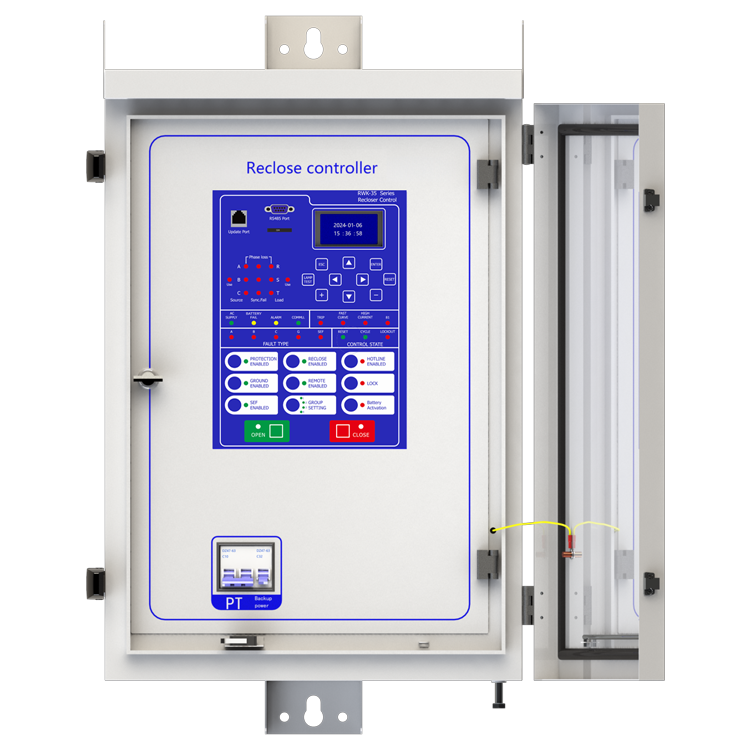

| Model NO. | Automatic Recloser Controller |
| Rated voltage | 230V ±20% |
| Rated frequency | 50/60Hz |
| Electric energy consumption | ≤5W |
| Version | V2.3.3 |
| Series | RWK-35 |
Description ：
RWK-35 is an intelligent medium Voltage controller used in overhead line grid monitoring for the purpose of overhead line protection. It can be equipped with CW(VB) type vacuum circuit breaker to achieve automatic monitoring, fault analysis and store event records.
This unit offers safe line switching of faults on the power grid and provides automatic power recovery. RWK-35 series is suitable for up to 35kV outdoor switchgear include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers. RWK-35 intelligent controller is equipped with line protection, control, measurement and monitoring of Voltage and current signals integrated automation and control devices outdoors.
RWK is a automatic management unit for single way/multi ways/ring network/two power sourcing, provided with all Voltage and current signals and all functions. RWK-35 column switch intelligent controller supports: Wireless (GSM/GPRS/CDMA), Ethernet mode, WIFI, optical fiber, power line carrier, RS232/485, RJ45 and other forms of communication, and can access other station premises equipment (such as TTU, FTU, DTU, etc.).
Main function introduction：
Protection relay functions, Auto Reclose, Instantaneous/Definite-Time Overcurrent, Phase Time-Overcurrent, Directional Phase Overcurrent, Directional Phase Time-Overcurrent, Ground Instantaneous/Definite-Time Overcurrent, Ground Time-Overcurrent, Directional Ground Overcurrent, Directional Ground Time-Overcurrent, Sensitive Earth Fault, Directional Sensitive Earth Fault, Earth Fault Protection With 3RD Harmonics, Cold Load, Switch-Onto-Fault, Frequency protection, Negative- Sequence Overcurrent，Under Voltage，Over Voltage，Zero-Sequence Over Voltage, Synchronism－Check, Synchronism－Check/Auto Reclose, Voltage unbalance, Power direction, Inrush, Loss of phase, Live load block, High gas, High temperature, hotline protection.
Supervision functions: Trip & Close Circuit Supervision, VT Supervision.
Control functions: Lockout, circuit-breaker control.
Monitoring Functions: Primary/Secondary Phases and Earth Currents, Phases Current with 2nd Harmonics and Earth Current With 3RD Harmonics, Direction, Primary/Secondary Line and Phase Voltages, Apparent Power and Power Factor, Real and Reactive Power, Energy and History Energy, Max Demand and Month Max Demand, Positive Phase Sequence Voltage, Negative Phase Sequence Voltage & Current, Zero Phase Sequence Voltage, Frequency, Binary Input/Output status, Trip circuit healthy/failure, Time and date, Trip, alarm, signal records, Counters, Wear, Outage.
Communication functions: RS485/USB or RS232/USB port or Ethernet/RJ45 link to PC software，Or passing IEC60870-5-101, IEC60870-5-104, DNP3.0 or Modbus RTU Communication protocol link to SCADA system; realizable Events\Faults and Measurands viewing, executing remote command, Time synchronizing, Viewing and Changing Settings.
Data Storage functions: Event Records, Fault Records, Measurands.
Remote signaling remote measuring, remote controlling function can be customized address.
Technology parameters：
Device structure：
About customization：
The following optional functions are available: Power supply rated at 110V/60Hz, cabinet heating defrosting device, battery upgrade to lithium battery or other storage equipment, GPRS communication module,1~2 signal indicators,1~4 protection pressure plates, the second voltage transformer, custom aviation socket signal definition.For detailed customization, please contact the salesman.
What is a recloser?
A: The reclosing device is a device that can automatically detect the fault current, and automatically cut off the circuit when the fault occurs, and then perform multiple reclosing operations.
What is the function of the recloser?
A: It is mainly used in the distribution network. When there is a temporary fault in the line (such as a branch touching the line for a short time), the reclosing device restores power supply by reclosing operation, which greatly reduces the outage time and scope and improves power supply reliability.
How does the recloser determine the type of failure?
A: It monitors characteristics such as the magnitude and duration of fault currents. If the fault is permanent, after a preset number of reclosing, the reclosing device will be locked to avoid further damage to the device.
What are the application scenarios of reclosers?
A: It is widely used in the urban distribution network and rural power supply network, which can effectively cope with various possible line failures and ensure the stable supply of power.
