This test just apply to 3 pole operation circuit breakers.As Fig these circuits use a three-phase current source and, generally, two voltage sources. one voltage source provides the TRV for the first pole-to-clear and the other gives the recovery voltage for the second- and third poles-to-clear, in the case where these poles clear simultaneously as in non-effectively earthed systems.This system have following components: A three phase current source (G) Voltage source 1 with current injection pa

During the switching of normal load or short-circuit current, SF₆ molecules are ionized and fragmented by the arc. The figure illustrates the main reaction processes and the locations where each process is likely to occur. SF₄, as the primary decomposition product resulting from the electric discharge, first reacts with H₂O on the inner wall surface, giving rise to SOF₂. The metal fluorides remain in the form of powder or dust on the surface. H₂O is released in this reaction and thus becomes ava

For intelligent switchgear, the opening time is defined as the duration starting from the moment when the first message carrying the trip command (a GOOSE message in accordance with the IEC61850 series) is received through the interface, with the circuit - breaker initially in the closed position, and ending at the instant when the arcing contacts of all poles are separated.Regarding the closing time of intelligent switchgear, it refers to the time span from the reception of the first message co

This test serves to ascertain the length and condition of the current - carrying section of the arcing contacts within SF6 circuit breakers. DRM (Dynamic Resistance Measurement) tests are carried out by passing DC current through the breaker's main contacts during the breaker's operation. Subsequently, the breaker analyser computes and plots the resistance as a function of time. When contact movement is concurrently recorded, the resistance at each contact position can be determined. Through DRM

Acoustic Emission: This method can be effectively employed to detect hazardous cracks in support insulators on - site in an offline mode. It is well - suited for identifying damages caused by mechanical stress, such as fatigue - related cracks. However, it is ineffective for detecting defects like pores.Non - destructive Ultrasound: Relying on the ultrasound impulse method, this technique works offline by exciting the insulator and its defects through the injection of short acoustic impulses. In

Gas Compartment Design and OptimizationPre-filled SF6 Gas CompartmentsGas compartments are pre-filled with sulfur hexafluoride (SF6) at a pressure slightly above atmospheric pressure for transportation. This ensures that the equipment remains stable during transit and reduces the workload required for on-site installation.Optimization to Minimize SF6 UsageGas compartments are optimized to use the minimum amount of SF6 necessary for a given functionality. Since the lowest achievable SF6 recovery

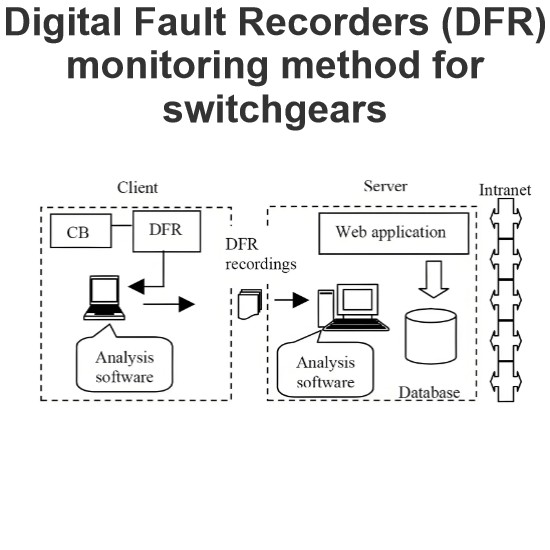

The trending method involves verifying whether a signal lies within the normal range, exhibits consistent behavior in relation to other information, and does not show signs of drifting or abnormal fluctuations. Here are some examples:1. Operating environmental conditionsMonitoring temperature and humidity levels. Deviations from the normal range can impact the performance of electrical and mechanical components.2. Circuit breaker mechanical operation counterAutomation data is used to monitor the

The vacuum arc - interrupting performance relies on the arcing within the metal vapor, which is generated from the contact material. Significantly, this process remains unaffected by low temperatures.A vacuum interrupter is typically fabricated from metals and ceramics and undergoes brazing at approximately 800 degrees Celsius. The material characteristics of both metal and ceramic, as well as the brazed joints between them, are inherently resistant to low - temperature impacts.Sliding guides ar

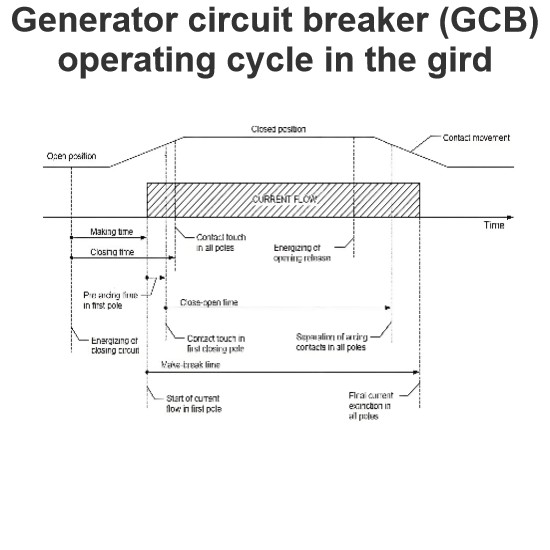

Timing tests serve the purpose of determining the durations for operations such as opening (tripping), closing, close - opening, and reclosing. These time measurements are crucial for ensuring the safe and reliable operation of circuit breakers, thus being a key outcome of proper circuit breaker design.The main contact times are verified after production, during commissioning, and while the circuit breaker is in - service as part of periodic maintenance. To conduct these tests, timing test devic

Assessing the Integrity of Internal and External InsulationTo ensure the reliability and safety of circuit breakers, it is essential to evaluate both their internal and external insulation. Testing equipment typically has an output voltage of 10 kV and is designed to be portable so that it can be used in all substation environments. While this testing is primarily used for oil circuit breakers (CBs), it can also be applied to SF6 switchgear.Purpose of Power Factor TestsPower factor tests are con
