As a professional engaged in power system operations, I recognize that medium-voltage (MV) switchgear plays a pivotal role in power distribution, metering, and protection. Ensuring its operational safety and reliability is critical—any malfunction can severely disrupt the entire power system. To enhance reliability, we must prioritize design-level optimizations, enabling MV switchgear to fulfill its functions and safeguard grid stability.
1. Definition of Medium-Voltage Switchgear
In my practice, MV switchgear refers to metal-clad switchgear as defined in GB 3906—2020 AC Metal-Clad Switchgear and Controlgear for Rated Voltages from 3.6 kV to 40.5 kV: equipment fully enclosed by metal casings except for incoming/outgoing conductors.
In power systems, MV switchgear performs key functions: switching, metering, power distribution, and protection across generation, transmission, and distribution stages. During operation, I adjust its configuration based on grid demands—connecting or disconnecting equipment/feeders to maintain stability. When faults occur in grid devices or lines, I use MV switchgear to promptly isolate the faulty section, ensuring uninterrupted power supply to unaffected areas.
2. Significance of Ensuring MV Switchgear Reliability
MV switchgear is widely applied in power systems. With China's grid expansion and growing complexity, grids now carry heavier loads to meet social demands. From my experience, only by ensuring MV switchgear reliability can it effectively manage power distribution, metering, and protection, thus maintaining overall grid stability.
Any safety incident or operational failure in MV switchgear will destabilize the distribution system, compromising power supply. In severe cases, it may cause widespread outages, leading to significant economic losses for social production. Therefore, I emphasize the need to enhance MV switchgear reliability through multi-faceted measures, ensuring stable functionality and grid support.
3. Strategies for Enhancing MV Switchgear Reliability
3.1 Rational Design of Enclosure Structure
Scientific enclosure design is fundamental to ensuring MV switchgear reliability, which I prioritize in engineering practice. For example:
- Busbar Chamber Optimization: Traditional busbar chamber designs use insulators on branch busbars, but dust accumulation on insulators over time poses flashover risks. I adopt D-type main busbars instead—their higher strength and tensile resistance eliminate the need for insulators, resolving contamination-related safety issues.
- Bushing Design: Implementing three-phase integrated bushing designs in busbar chambers prevents eddy current effects, improves electric field uniformity, and enhances creepage distance, thereby boosting insulation reliability.
These design optimizations align with industry best practices, ensuring MV switchgear meets safety and performance requirements in real-world operations.
3.2 Rational Design of Insulation Structure
To enhance the safety and reliability of medium-low voltage switchgear, strengthening insulation design is essential. In practical design, besides meeting insulation requirements, factors such as design cost and environmental protection should also be considered.
3.2.1 Rational Selection of Insulating Gases

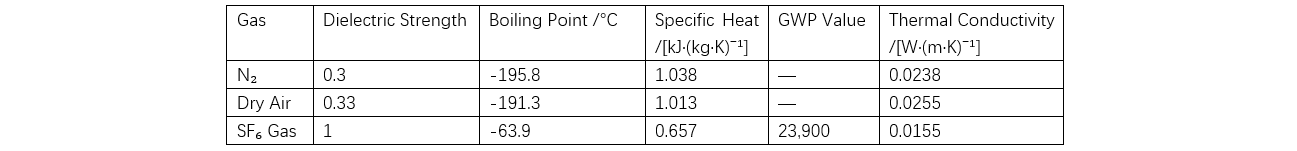

In medium-voltage switchgear, SF₆ gas has been the primary insulating medium. However, it is not only toxic but also has an extremely high GWP (Global Warming Potential). While CO₂ is a greenhouse gas with a high GWP, SF₆ gas has a GWP 23,900 times that of CO₂, highlighting its significant harm to the natural environment. For medium-low voltage switchgear with non-critical interrupting performance requirements, design-wise, we can attempt to replace SF₆ gas with N₂ or dry air. Compared with SF₆ gas, the insulation performance of N₂ and dry air can reach 30% of that of SF₆ gas. The performance comparisons among N₂, dry air, and SF₆ gas are shown in Table 1.
As indicated in Table 1, N₂ and dry air are non-greenhouse gases, posing no threat to the ecological environment. They also have low boiling points, eliminating concerns about liquefaction during normal use, even in extremely cold regions. Notably, N₂, as the main component of air, features stable chemical properties. However, excessively high N₂ concentration can cause asphyxiation due to oxygen deprivation. When designing with N₂ as the insulating gas, ventilation and protective equipment must be configured. In contrast, using dry air as the insulating gas avoids such issues. Through comprehensive comparison, dry air can be adopted to replace SF₆ as the insulating gas in switchgear insulation design.
When using dry air as the insulating gas, the design of the minimum air gap should be considered. According to relevant standards, for a rated voltage of 12 kV, the minimum air gap between phases and from phase to ground should be 125 mm. If the condensation test is passed, the minimum air gap can be slightly smaller than 125 mm. Employing dry air as the insulating gas allows for an appropriate reduction in the minimum air gap.
3.2.2 Enhancing Breakdown Voltage in Gas Gaps
During the design process, to ensure the safety and reliability of medium-low voltage switchgear, the breakdown voltage in gas gaps should also be enhanced, with specific methods as follows:
- Improving the electric field distribution in medium-low voltage switchgear. This can be achieved by optimizing electrode shapes based on actual conditions or making full use of space charges to enhance electric field uniformity. If the electric field uniformity is extremely poor, adding barriers is also an option.
- Suppressing the ionization process of dry air. Applying high pressure in medium-voltage switchgear can weaken the ionization process of dry air. Alternatively, using high vacuum in medium-voltage switchgear can achieve the same effect.
When using high pressure or high vacuum, the gas tank strength is required to be extremely high, and leakage problems are prone to occur in practical applications, leading to serious consequences. Therefore, in actual design, improving the electrode shape and adding barriers in extremely inhomogeneous electric fields are more feasible methods to increase the breakdown voltage in gas gaps.
3.3 Rational Selection of Components

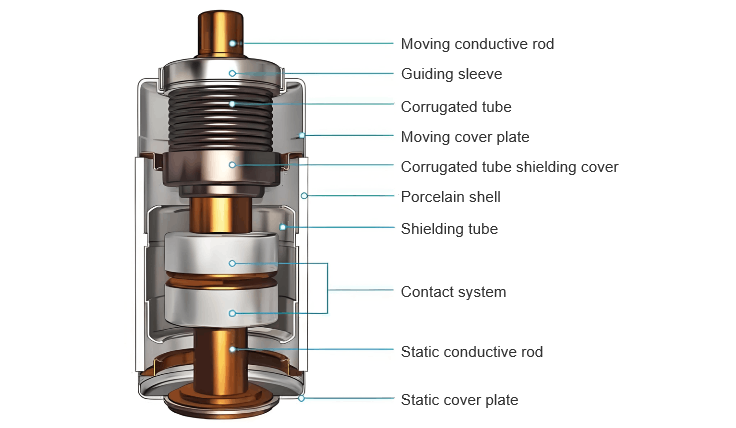

The core components of medium-voltage switchgear, including vacuum circuit breakers, vacuum interrupters, and contacts, directly affect the equipment's operational safety and reliability, requiring strict quality control.
Take ABB switchgear as an example. Its vacuum interrupters undergo rigorous pre-shipment inspections: automatic high-voltage tests verify the insulation strength, while spiral magnetron devices measure internal pressure within a chamber filled with inert gas. After a specified isolation period, a second pressure test is conducted, and results are compared to ensure sealing performance meets standards.
In manufacturing, ABB vacuum interrupters require strict environmental and process controls. Produced at CalorEmag's German factory, they are professionally assembled by regional medium-voltage switchgear enterprises before centralized supply. High-performance alloys like Cu-Cr and W-C-Ag are prioritized for component materials to ensure durability.Assembly occurs in dedicated cleanrooms using a "one-time sealing and exhausting" process: under 800°C high temperature, high vacuum is first achieved, followed by simultaneous welding and sealing to guarantee process reliability.
The R&D evolution of vacuum interrupters reflects continuous performance optimization: early assemblies exposed to air relied solely on insulating partitions for isolation. Subsequent improvements included insulating sleeves over interrupters and contacts to balance electric fields, followed by integral casting for interrupters and contacts to enhance phase-to-phase insulation and impact resistance, while adopting eco-friendly materials to integrate performance with environmental considerations.
3.4 Rational Planning of Design Validation Tests
After the design of medium-voltage switchgear is completed, experimental validation becomes a critical phase. The actual validation must strictly comply with relevant standards, such as GB 3906—2020 AC Metal-Clad Switchgear and Controlgear for Rated Voltages from 3.6 kV to 40.5 kV, GB/T 11022—2020 Common Technical Requirements for High-Voltage AC Switchgear and Controlgear Standards, and GB/T 1984—2014 High-Voltage AC Circuit Breakers.
Key Points for Type Tests
Comprehensive performance verification shall be conducted for the electrical components and auxiliary elements of medium-voltage switchgear to ensure technical parameters meet the requirements. When design processes or production conditions change, type tests must be re-conducted to guarantee equipment safety and reliability. For normally produced equipment, a temperature rise test is typically required every 8 years; mechanical operation tests are carried out to inspect operational performance; meanwhile, safety verification items such as short-time withstand current and peak withstand current tests are also necessary.
Taking ABB medium-voltage switchgear as an example, it has passed experimental validations in multiple countries under the most stringent standards to date, demonstrating exceptional safety and reliability. Take the internal arcing test as an example, which verifies:
- The fixing methods and closed status of switchgear doors, covers, and other components;
- The firmness of fixing dangerous components;
- The structural stability of the equipment casing under combustion or other hazardous scenarios;
- Whether indicators are arranged in compliance with production specifications;
- The completeness of protective measures and the flammability rating of the equipment.
Only by ensuring the equipment's non-flammability can operational safety be fundamentally guaranteed.
4 Conclusion
As a core component of the power system, the operational reliability of medium-voltage switchgear directly affects grid safety. Therefore, it is essential to strengthen the safety and reliability design of the equipment, strictly optimize technical parameters in accordance with standards, and build a solid safety defense through systematic validation tests, ensuring that medium-voltage switchgear stably performs distribution, protection, and control functions in the power system.
