250A Moulded Case Circuit Breakers

$30.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone
Model NO.	250AMP Ns-250n Moulded Case Circuit Breakers
Rated voltage	150V
Rated normal current	100A
Series	NS-250N

Product Detail

Product Description

NS series moulded case circuit breaker is one of breaker which adopts international advanced design .

Manufacture technology to develop,the rated insulating voltage is 750V,suitable for AC 50Hz or 60Hz,rated working voltage 690V or below,rated working current is 12.5A to 1250A of circuit and used in distributing electric energy,and non-frequent breaking in the normal conditions,protecting the current & equipement from overload under voltage,circuit breaker with rated frame current 400A or below.

Basic Info.

Main technical specification:

Note:1.The N-pole breaker ha no protaction which closing and opening with the other three poles.

2.The type of thermal magnetic for AM2-400-630 has no four poles.

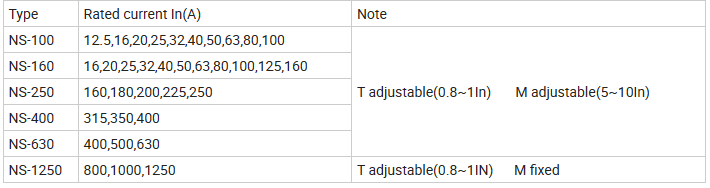

Trip units main technical parameter:
