YH Series Welding Machine Cable

$666.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone
Model NO.	Welding machine cable
Rated voltage	1kV
Series	YH

Product Detail

Executive standard

GB/T5013.6-2008

Usage

This product is suitable for the voltage to the ground not more than 200V and its pulsating current value 400V welding machine disconnecting line and so on.

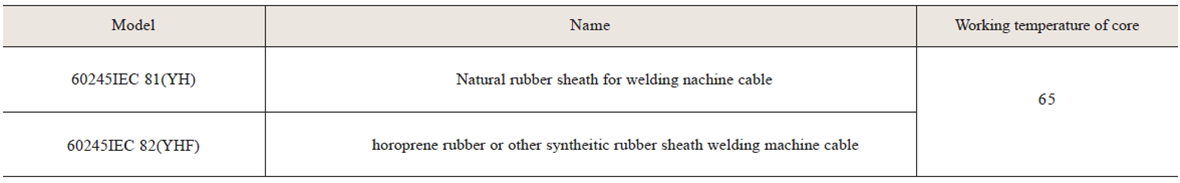

Model, names and working temperature 型号名称.png

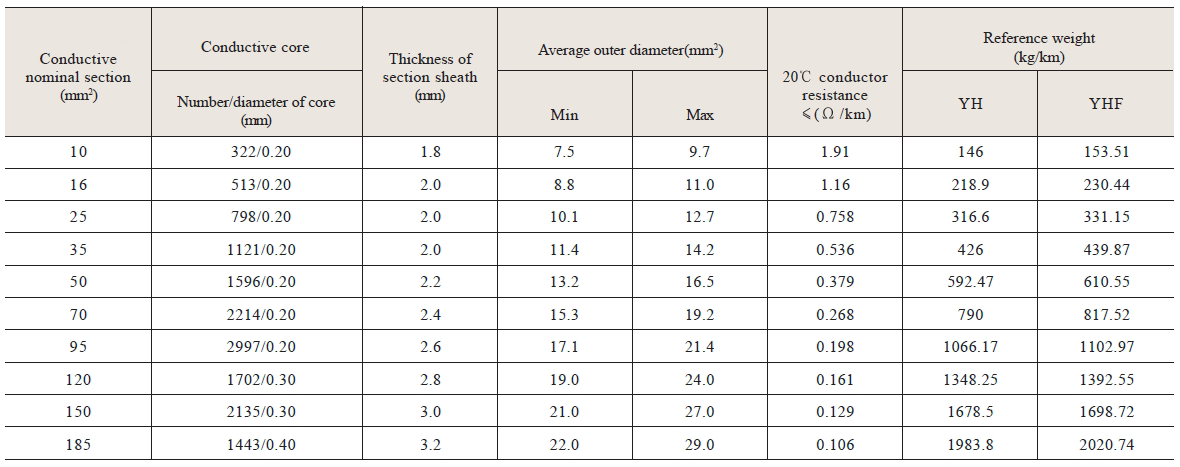

Specifications, size, weight and technological data 参数表.png

Delivery requirements

If cable are packed in decrepit shoved be 100m in length. If packed in bundle. If should be no less than 100m.if short distance less than 20m.if mutual agreement is made.everthin will be done according agreement.

Q: What type of cable is YH cable?

A: YH cable is an electric welding machine cable, which is a special cable for the secondary side wiring of the welding machine and the connection of electric welding pliers.

Q: What are the characteristics of YH cable?

A: It has good flexibility, convenient in a variety of welding operation scenarios flexible movement and bending, will not easily break. Its electrical conductivity is good, and it can meet the needs of large current transmission when the welding machine is working. Moreover, the insulation layer of YH cable has certain heat resistance and wear resistance, which can adapt to the high temperature environment in the welding work and the friction caused by frequent movement.
