XP-1A SF6 Gas Qualitative Leak Detector

$600.00

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone
Model NO.	XP-1A SF6 Gas Qualitative Leak Detector
Rated frequency	50（Hz）
Series	Tester

Product Detail

XP-1A SF6 Gas Qualitative Leak Detector

The high-tech central micro-processing unit of XP-1A SF6 gas leak detector is the core of this product, and its digital signal processing capability can better manage circuits and process detection signals. Due to the extensive use of integrated circuits, the number of components in the circuit has been reduced by 40%, greatly improving reliability and efficiency. The microprocessor monitors the probe and battery voltage at a speed of 4000 times per second, and the extremely small signal can also be captured, and it can work stably and reliably in any environment.

XP-1A SF6 Gas Leak Detector has added some convenient functions: the seven-level sensitivity increases the sensitivity by 64 times, and the three-color light-emitting diodes indicate the degree of leakage in a wide range in a progressive manner. It is also used to display the sensitivity level and battery level; the touch keyboard can perform all operations; the avant-garde slim shape design is greatly convenient for users to use and maintain; the indicator light is very convenient to be in the direct line of sight during use.

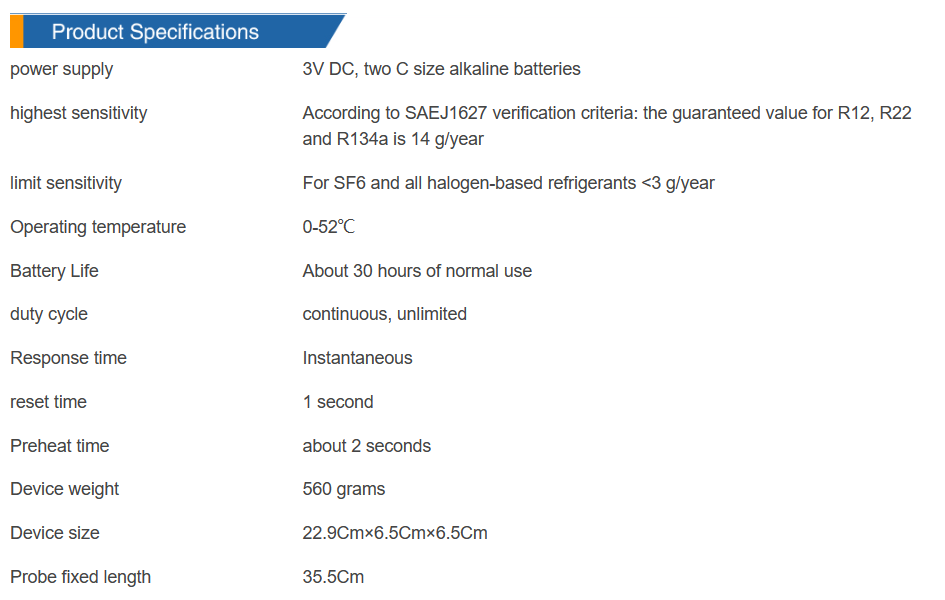

SF6 gas detection.png
