withstand voltage test device - Wone

withstand voltage test device

$10000.00

Basic info

Brand	Wone
Model NO.	withstand voltage test device
Rated frequency	50Hz
Capacity	10kVA
Series	Tester

Product Detail

WZXZ Frequency conversion series resonance withstand voltage test device

Application of WZXZ frequency conversion series resonance withstand voltage test device

1. AC withstand voltage test of 6kV-500kV high-voltage cross-linked cables

2. AC withstand voltage test of various generators

3. AC withstand voltage test of 10-500kV switchgear, GIS and SF6 switches

4. Power frequency withstand voltage test of 6kV-500kV transformers

5. AC withstand voltage test of other power high-voltage equipment such as busbars, bushings, and transformers.

6. The complete set of equipment consists of variable frequency power supply, excitation transformer, reactor and voltage divider.

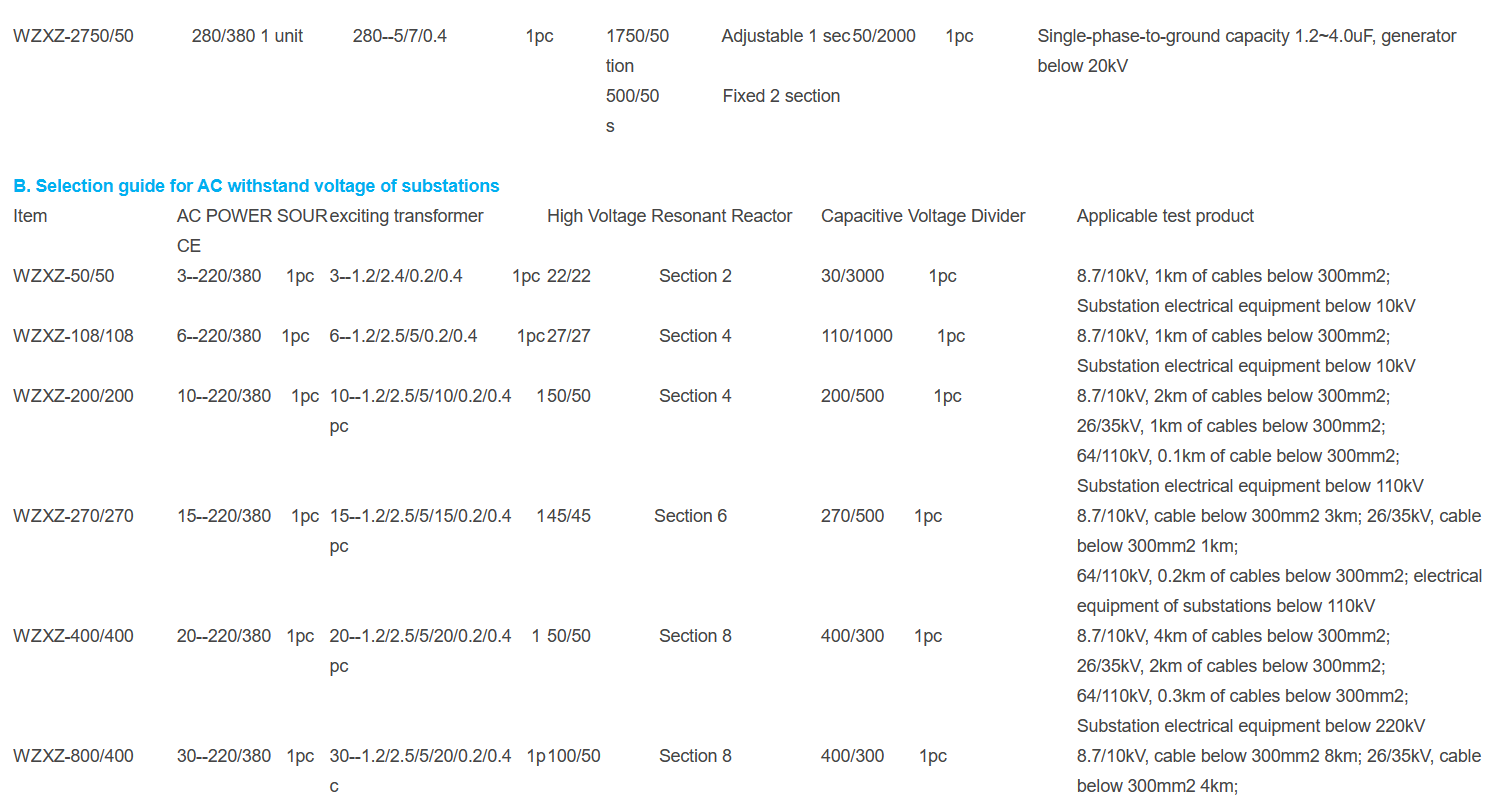

Withstand Voltage Tester 11.png

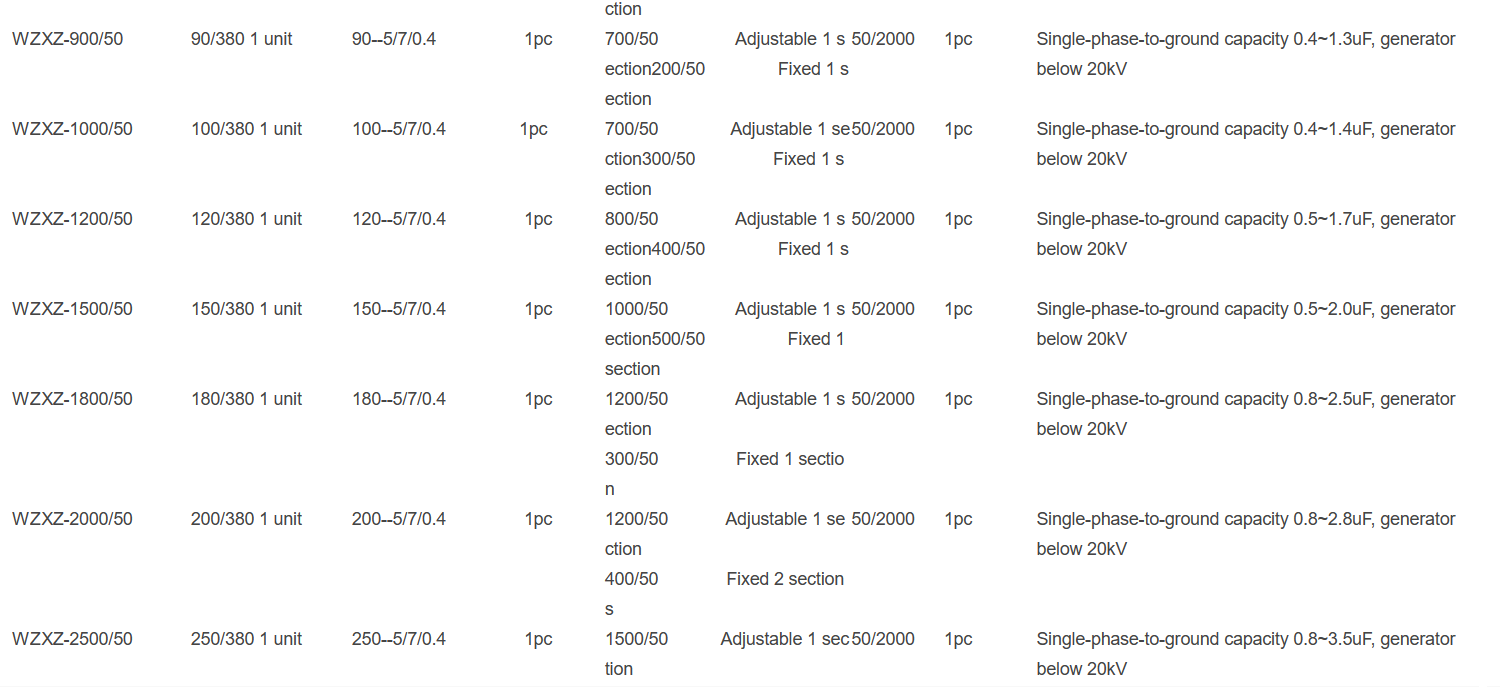

Withstand Voltage Tester 22.png

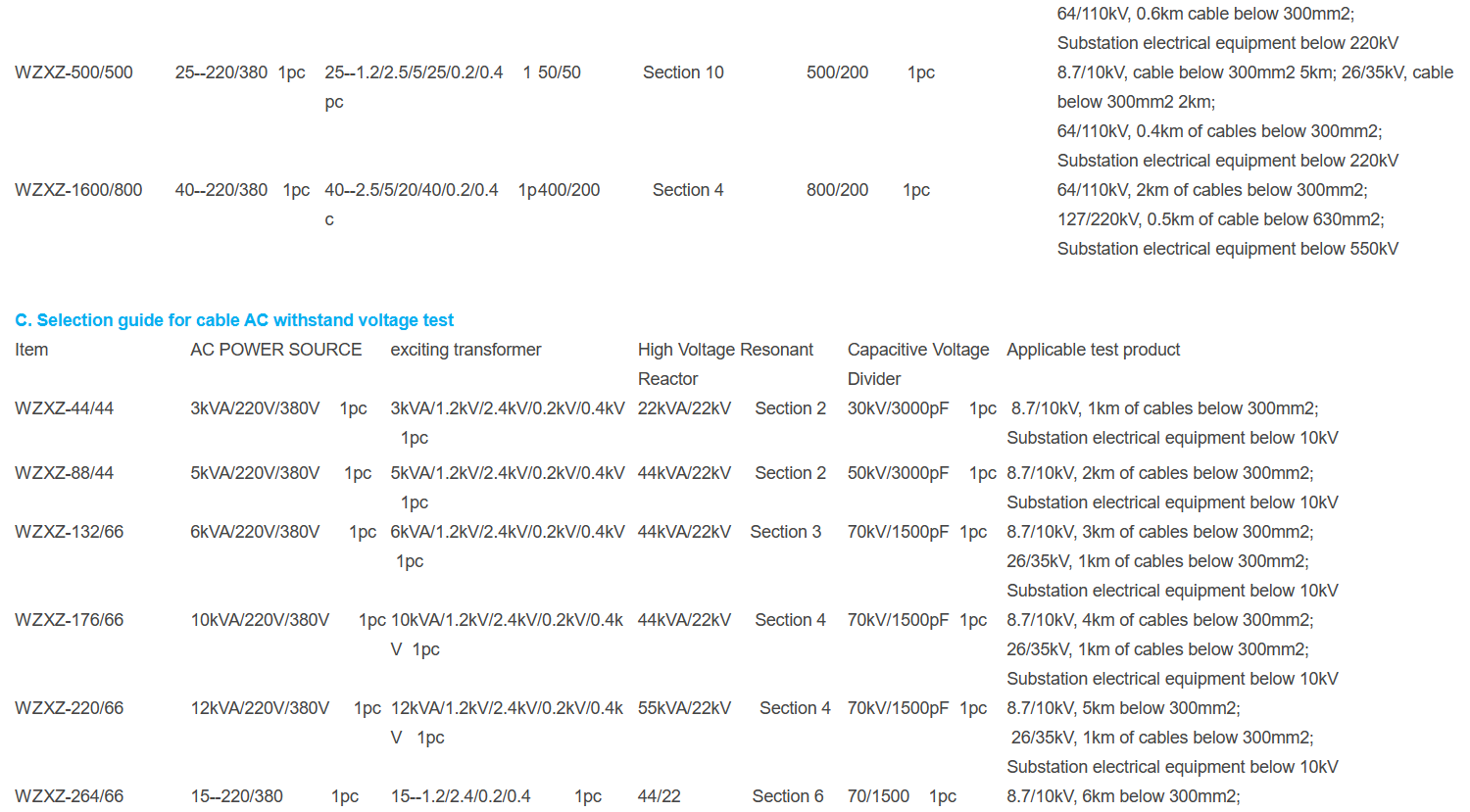

Withstand Voltage Tester 33.png

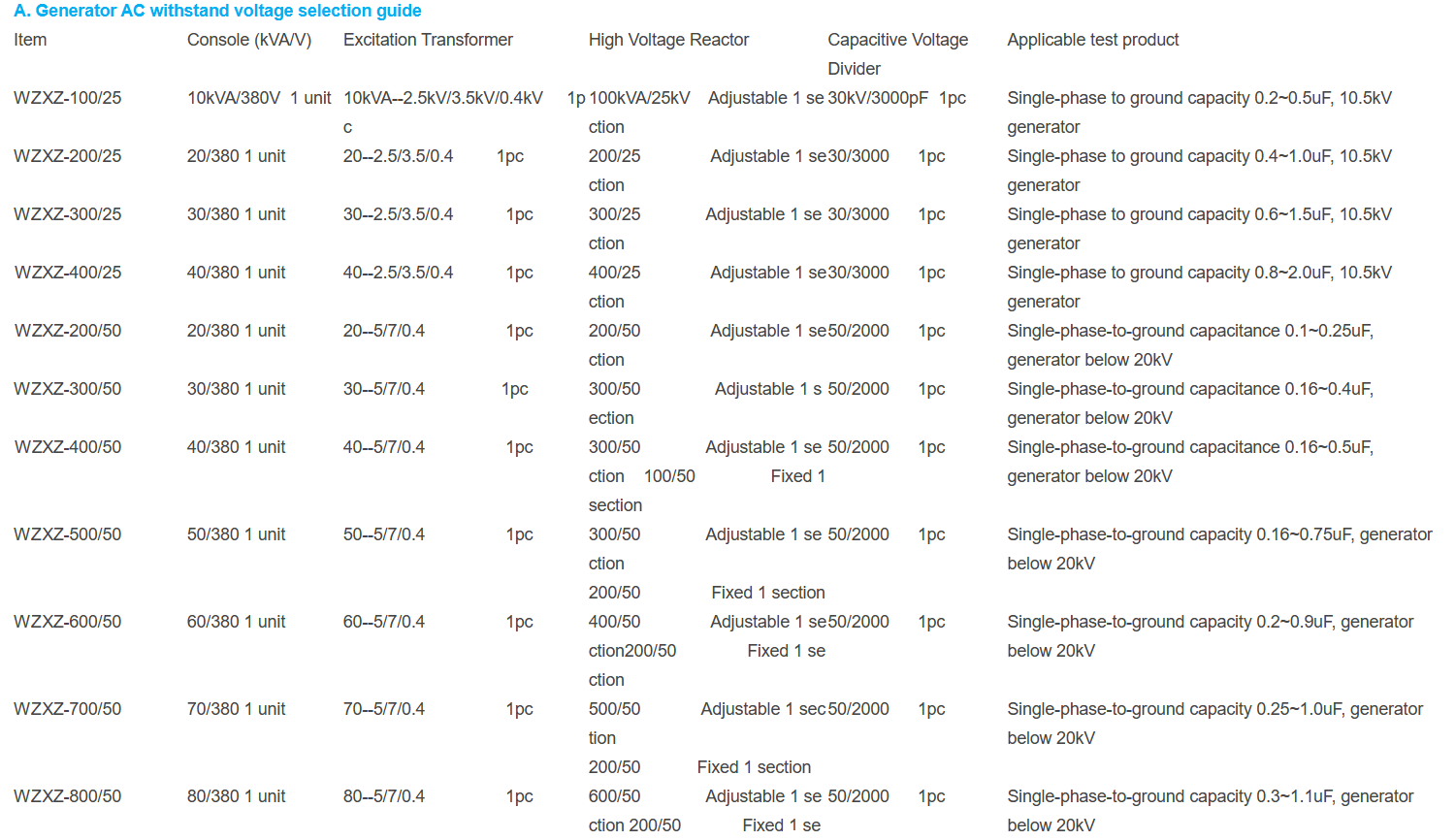

Withstand Voltage Tester 44.png

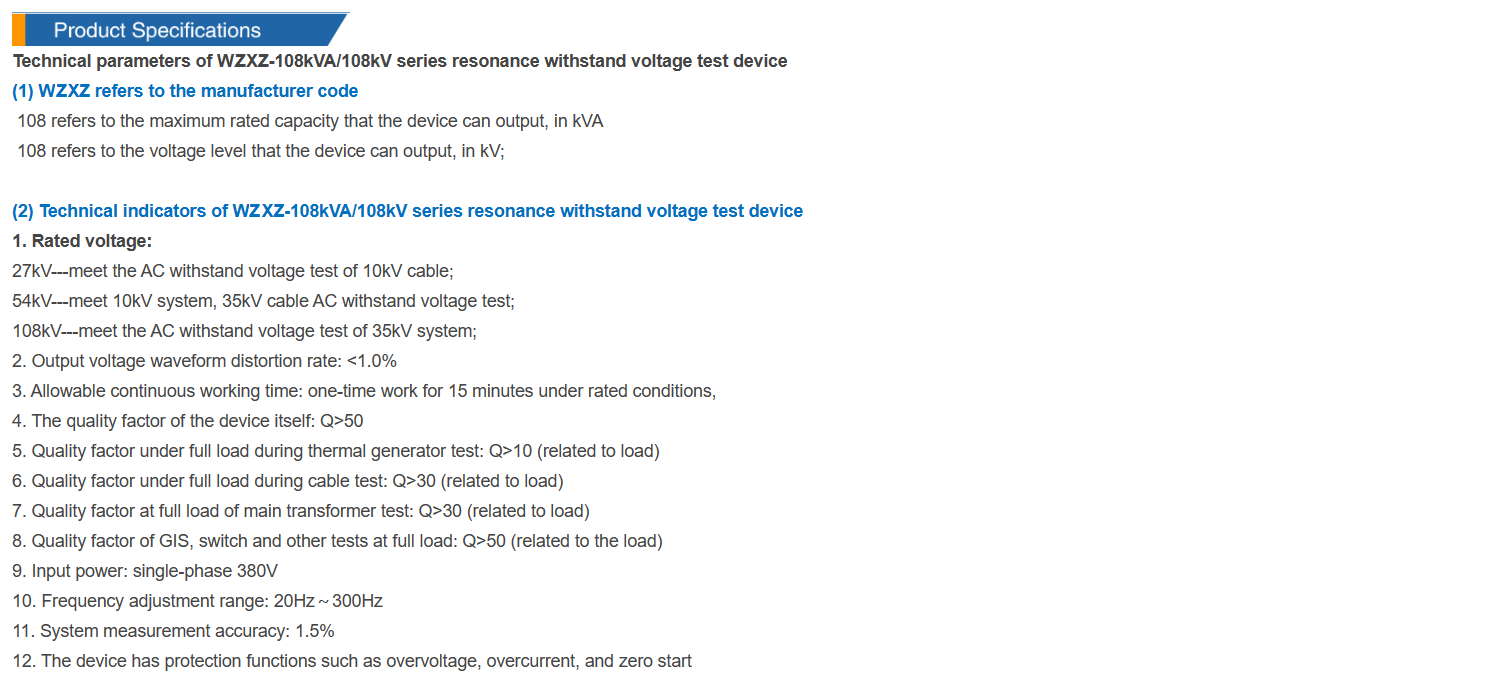

Withstand Voltage Tester 55.png

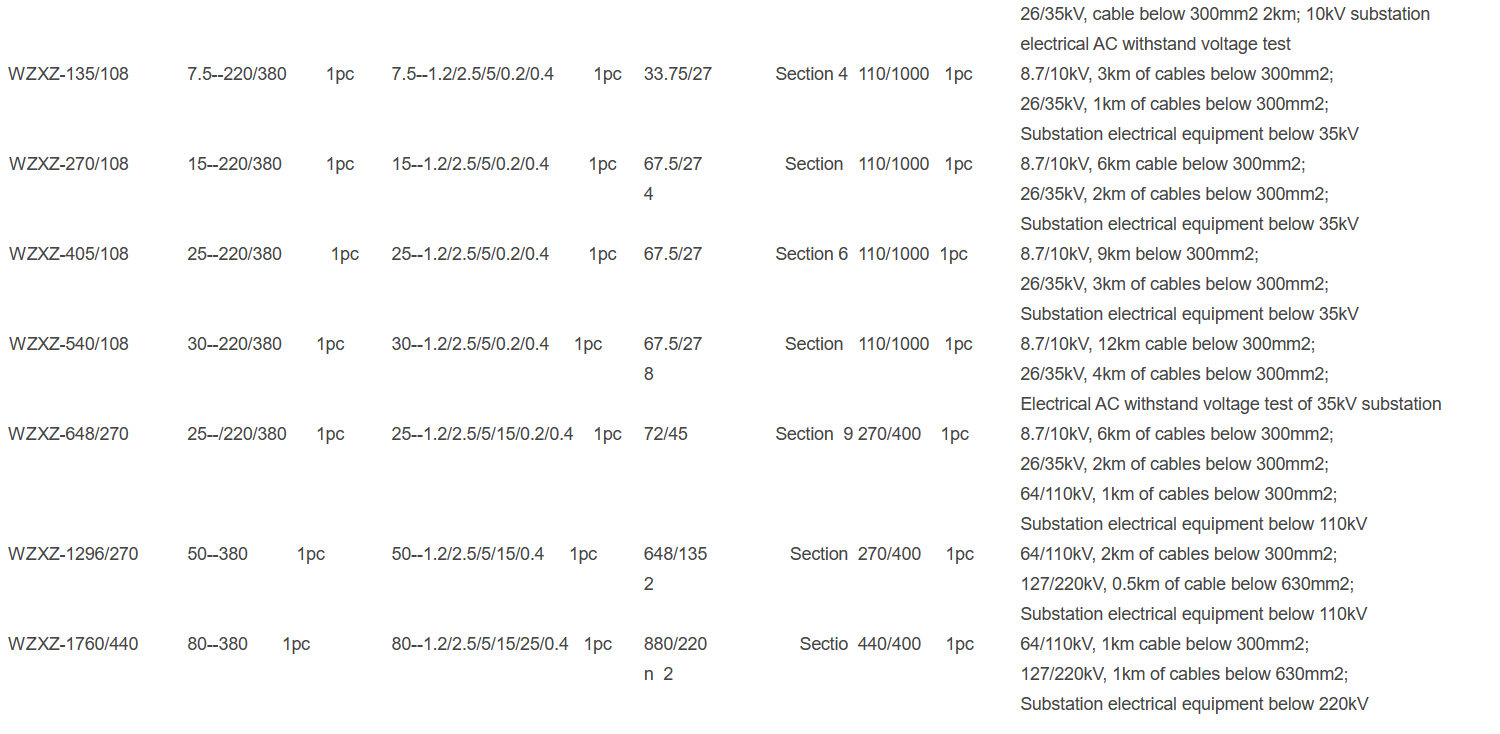

Withstand Voltage Tester 66.png
