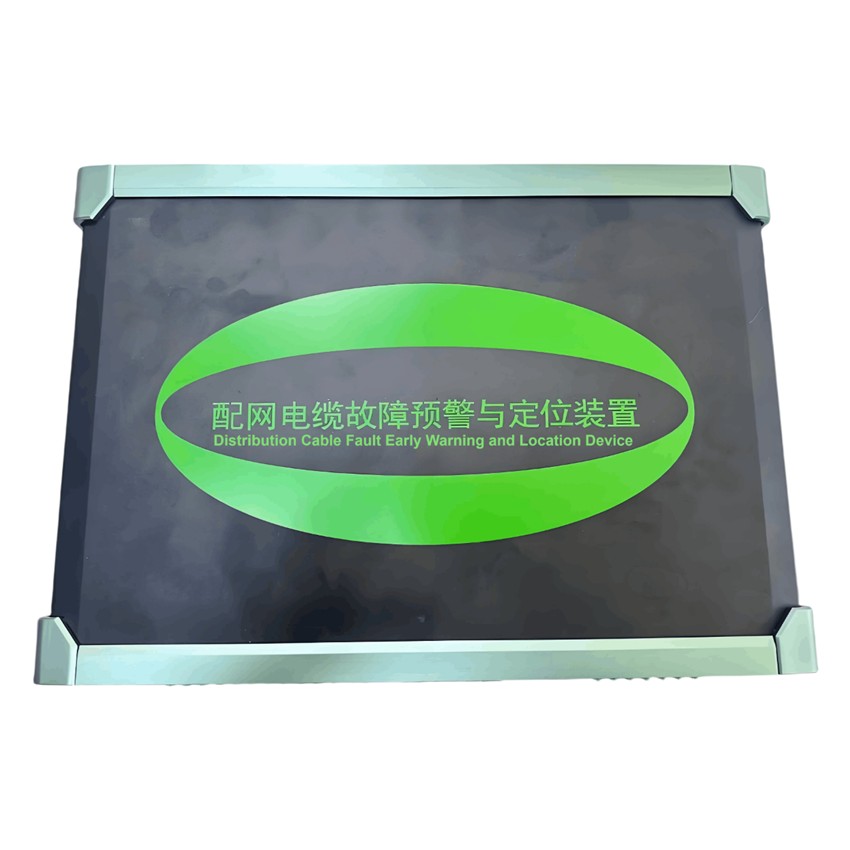

RWD series Distribution Cable Fault Early Warning and Location Device

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	RW Energy
Model NO.	RWD series Distribution Cable Fault Early Warning and Location Device
Rated voltage	≤35kV
Rated frequency	50（Hz）
Power Consumption	≤40W
Series	RWD

Product Detail

Description ：

This device has the functions of real - time monitoring and accurate early - warning. Through advanced sensor technology, it conducts all - round monitoring of the cable's operating status, including important parameters such as current, voltage, temperature, and partial discharge. Once an abnormal fluctuation in the parameters is detected, the system can quickly identify potential fault hazards and issue early - warning signals in a timely manner. This enables maintenance personnel to take corresponding measures before a fault occurs, avoiding power - outage accidents and effectively improving the reliability of power supply.In terms of fault positioning, the device uses a variety of advanced technical means, such as traveling wave ranging and impedance method. When a cable fault occurs, these technologies can quickly and accurately determine the location of the fault point with a very small margin of error. This greatly shortens the time for fault troubleshooting and repair, reducing the power - outage time and its impact on users.This device is widely used in urban distribution networks, industrial parks, commercial centers and other places, providing strong support for ensuring the safety and stability of power supply.

Main function introduction:

Fault location
Fault early - warning
Data collection and analysis

Technology parameters:

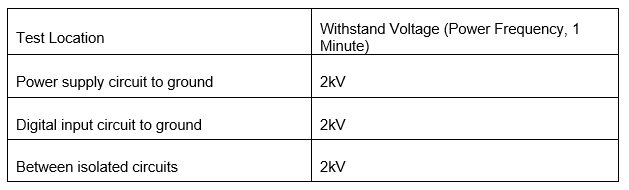

Withstand voltage test

Device structure:

Know your supplier

RW Energy

Zhejiang Rockwell Energy Technology Co., Ltd. is an international enterprise specializing in the research, development and manufacturing of recloser controllers, power quality management, power monitoring systems and other high-end power equipment. In today's critical period of global energy transition and power system upgrading, the company has gathered a group of top talents in the fields of power engineering, automation control, software development, etc., who carry the enthusiasm and persistence for the power business, and are committed to overcoming the complex problems in the power system, and promoting the intelligent development of the power industry with innovative technology. Mission: To make global electricity smarter, more reliable and more efficient with innovative technology. Vision: To be the leader in global power intelligence.

Main Categories

High voltage/New energy/Tester

Business Type

Design/Manufacture/Sales

Highest Annual Export (USD)

$100000000

Professional Experience

12 years

Workplace

30000m²

占位

占位

Documents

Public.

Distribution Cable Fault Early Warning and Location Device

Manual English
