China Manufacturer STS Prepayment meter Singlephase 2 Wire PLC Communication
$90.00
Model
| Brand | POWERTECH |
| Model NO. | China Manufacturer STS Prepayment meter Singlephase 2 Wire PLC Communication |
| Rated voltage | 230V |
| Rated normal current | 0.25-5(30)A |
| Rated frequency | 50Hz |
| Methods of Communication | RS485 |
| Series | K212-04 |
Description
The STS Prepayment meter realizes electricity sales without media, and the electricity is recharged to the electricity meter through a 20-digit encrypted code, which has high security and is not easy to be cracked. STS Prepayment meter, pay first and then use electricity, effectively solve the problem of difficult charging, when the remaining power is insufficient, it will automatically alarm to remind users to recharge in time.
Features
With with G3 PLC communication.
Maximum current isup to 80A.
with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
Divide into weekday timetable and weekend timetable, with 8 time period and 4tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 5 month, total output energy of the current month, total output energy of last 5 month, and total reactive energy.
Degree of Protection: IP51 (indoor meter).
Specifications
| Main |
|
|---|---|
| Range | K212-04 |
| Product or Componet Type | Energy meter |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single Phase |
| Type of measurement | ---- |
| Metering type | Measurement |
| Device Application | Energy Charge |
| Accuracy class | Active power 1.0 |
| Rated Current | 5(80)A |
| Rated Voltage | 230V |
| Network Frequency | 50-60Hz |
| Technology Type | Electronic |
| Display Type | LCD display(LCD 6+2 = 999999.99kWh) |
| Impulse Constant | 1000imp/kWh(LED) 1000imp/kvarh |
| Maximum value measured | 99999.99kWh |
| Tariff input | Tariff |
| Communication port protocol | G3 PLC |
| Communication port support | RS485 |
| Local signalling | ------ |
| Number of inputs | ------- |
| Number of Outputs | -------------- |
| Output voltage | ---- |
| Mounting Mode | -- |
| Mounting Support | ---- |
| Connections - terminals | ------- |
| Standards | IEC62052-11, IEC62053-21, IEC62055-41 |
| Environment |
|
|---|---|
| IP degree of protection | IP51 |
| Relative humidity | ≤75% |
| Ambient air temperature for operation | -20…70 °C |
| Ambient Air Temperature for Storage | --20…80 °C |
| Operating altitude | --- |
| Dimensions | 141.6mm*87mm*49mm |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 50mm |
| Package 1 Width | 88mm |
| Package 1 Length | 143mm |
| Package 1 Weight | 1.000kg |

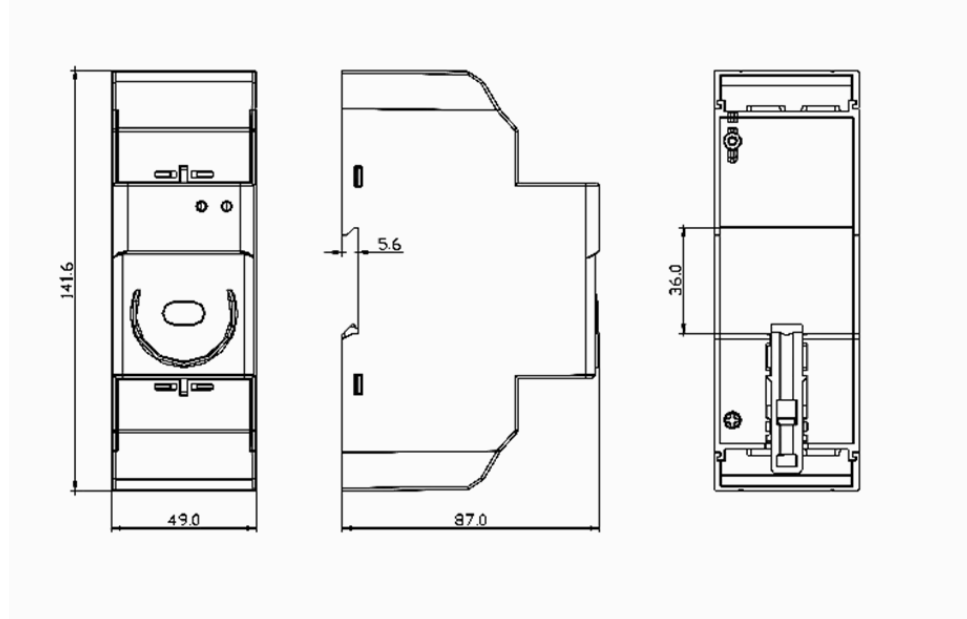

Dimensions
