General

Our broad range for Minera MP transformers includes:

• Three phase units (single phase available on request)
• Ratings up to 80 MVA, 50 or 60 Hz
• Voltage insulation level up to 170 kV
• Breathing or sealed type
• A wide range of accessories
• High capacity cooling options such as ONAN, ONAF, OFAF, OFWF or others upon request
• Standard or low noise levels
• Off-circuit tap changer (OCTC) or on load tap changer (OLTC)

Minera MP oil-immersed transformers are also available upon request for special applications including rectifier,
hazardous area transformers, reactors (shunt and series), auto-transformers, step-up transformers, Solar power
plant , Wind Mill Application etc.
Minera MP oil-immersed transformers meet the requirements of international standards such as ANSI, IEEE, IEC
as well as other international/national standards.

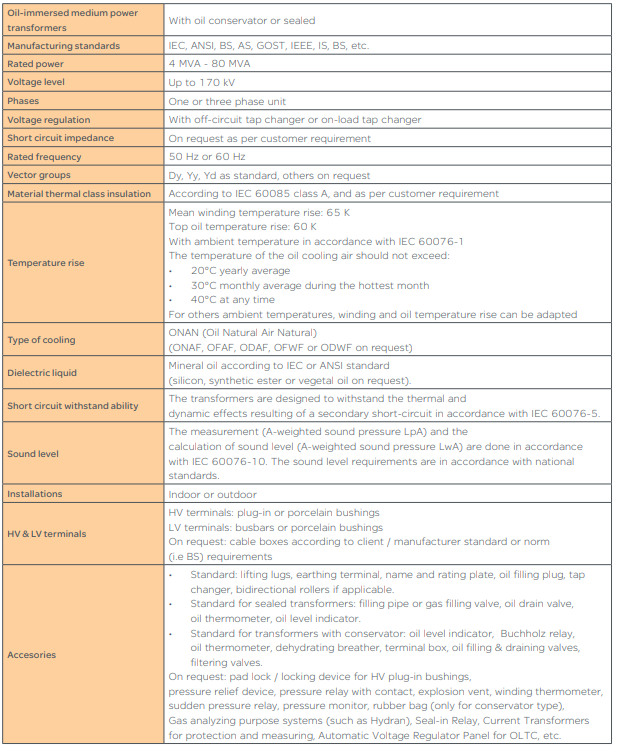

Technical caracteristics

The right tune for your network

Depending on your application and the different
environmental influences you meet, we are able to
deliver you a large variety of Minera MP transformers.
Schneider Electric’s R&D team has created special
designs for all your particular needs:

• Breathing type and sealed type
• For indoor application in buildings or
  industrial plants and in compact distribution
  substations
• For outdoor applications
• Normal noise level for urban or residential areas
• Normal, low or very low level of losses


As customer satisfaction is our main concern, we constantly improve our manufacturing process, thus we are able to speed up delivery time while ensuring that all ISO 9001, ISO 14001 and/or ISO 18001 requirements are met at each production step. To ensure this high level of quality, our Minera MP transformers undergo routine tests in accordance with international standards such as IEC, ANSI standards. We can also provide type tests or special tests on request.
