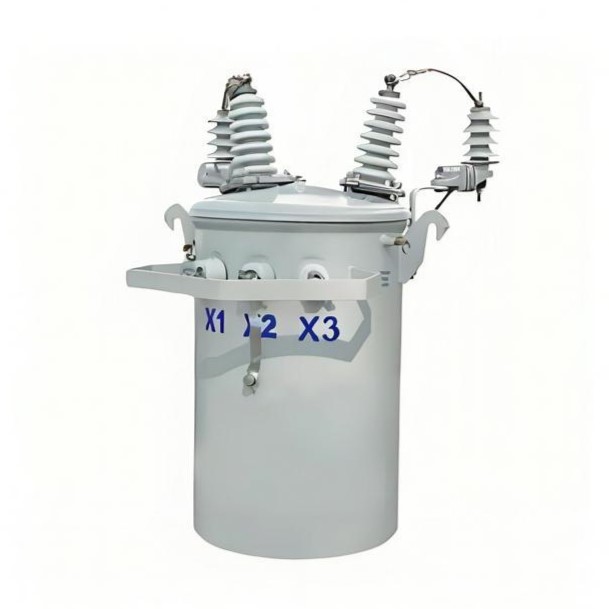

Integrated Solution for Single Phase Distribution Transformers in Renewable Energy Scenarios: Technical Innovation and Multi-Scenario Application

1. Background and Challenges​

The distributed integration of renewable energy sources (photovoltaics (PV), wind power, energy storage) imposes new demands on distribution transformers:

• ​Volatility Handling:​​Renewable energy output is weather-dependent, requiring transformers to possess high overload capacity and dynamic regulation capabilities.
• ​Harmonic Suppression:​​Power electronic devices (inverters, charging piles) introduce harmonics, leading to increased losses and equipment aging.
• ​Multi-Scenario Adaptability:​​Need to be compatible with diverse scenarios like residential PV, EV charging piles, and microgrids, supporting customized voltage/capacity.
• ​Efficiency Requirements:​​Stringent global efficiency standards (e.g., EU IE4, China Class 1 Efficiency) demand over 40% reduction in no-load loss.

2. Solution Design​

​2.1 High-Reliability Design​

• ​Material Innovation:​​
  • Core: Amorphous alloy (no-load loss ≤ 0.3 kW/1000 kVA) or high-permeability silicon steel to reduce eddy current loss.
  • Windings: Oxygen-free copper wire (purity ≥ 99.99%) to reduce load loss.
• ​Insulation Technology:​​Vacuum Pressure Impregnation (VPI) process, achieving IP65 protection rating, resistant to humidity >95% and low temperatures down to -40°C.
• ​Structural Optimization:​​Oval/circular core design, improving space utilization by 20%, suitable for compact installations (e.g., rooftop PV).

​2.2 Intelligent Control and Protection​

• ​Dynamic Voltage Regulation:​​
  • Utilizes AI algorithms to predict load fluctuations, automatically adjusting tap positions (±10% voltage range) to stabilize output voltage.
  • Supports remote monitoring and fault diagnosis (e.g., partial discharge detection), with response time <100ms.
• ​Harmonic Mitigation:​​
  • Built-in LC filters or active damping technology suppress THD (Total Harmonic Distortion) to <3%.
• ​Overload Protection:​​
  • 150% short-time overload capacity lasting 2 hours, accommodating renewable energy output peaks.

2.3 ​Multi-Scenario Application Solutions​

2.4 ​Efficiency and Environmental Optimization​

• ​Low-Loss Design:​​
  • No-load loss reduced by 40% compared to traditional silicon steel transformers; Full-load efficiency ≥98.5%.
• ​Eco-friendly Process:​​
  • Eliminates epoxy resin/fluorides; utilizes biodegradable insulating oil (compliant with IEC 61039).
• ​Thermal Management:​​
  • Forced-air cooling + temperature control system, temperature rise ≤100K, extending lifespan to 25 years.

3. Summary of Innovations​

• ​Multi-objective Cooperative Control:​​
  Employs a Gaussian Mixture Model (GMM) fusion strategy to balance voltage stability with loss minimization.
• ​Customization Flexibility:​​
  Supports modular customization of voltage, capacity, protection rating (IP00–IP65), and interface protocols.
• ​Renewable Energy Adaptability:​​

PV Scenarios: Anti-backflow and islanding protection.

Wind Power Scenarios: Anti-vibration design (amplitude ≤0.1mm).

4. Application Cases​

• ​China Distributed PV Project:​​
  Deployed 500 units of 20kVA single-phase transformers with integrated intelligent voltage regulation. PV curtailment rate reduced by 12%; payback period shortened to 5 years.
• ​California Fast-Charging Station:​​
  Custom 100kVA transformers (Input: 480V AC, Output: 240V DC). Charging efficiency increased by 15%; harmonics suppressed to 2%.

5. Future Directions​

• ​Wide Bandgap Semiconductor Integration:​​
  Adoption of SiC/GaN devices to increase switching frequency, reducing volume by 30%.
• ​Digital Twin O&M:​​
  IoT-based lifespan prediction models to reduce O&M costs by 25%.
• ​Policy-Driven Market:​​
  Global renewable energy transformer market growing at 15% CAGR, projected to exceed $10 billion USD by 2030.
