Intelligent Compact Substation Solution: Outperforming Traditional Transformers in Space Efficiency and Lifecycle Economics​

1. Core Advantages Overview: Redefining Substation Standards

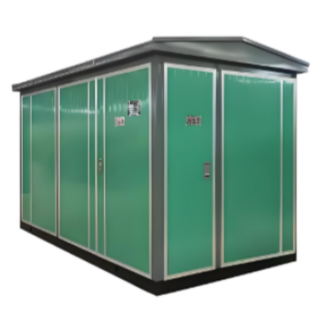

Driven by the dual demands of power system upgrades and urban space optimization, ​compact substations​ are revolutionizing traditional substation facilities globally with their innovative design and superior performance. As an integrated, modular power solution, compact substations combine core components—high-voltage switchgear, distribution transformers, and low-voltage distribution equipment—into a compact steel enclosure, achieving a fundamental breakthrough in substation functionality. Compared to conventional substations, they demonstrate significant advantages in ​space efficiency, construction speed, economic benefits, flexibility, and intelligence, perfectly aligning with modern power systems' needs for efficiency, adaptability, and sustainability.

1.1 Spatial Efficiency Revolution: Minimizing Footprint

• ​Extreme Space Compression: Utilizing 3D layouts and compact equipment, compact substations maximize spatial efficiency. For a 4,000 kVA substation, traditional setups require ~3,000 m² (including civil works), while compact substations reduce this to ​100–300 m²—just 1/10th the space​. This is decisive for land-scarce urban cores and high-value development zones.
• ​Flexible Deployment: With minimal foundations, compact substations can be installed in unconventional spaces like street greenbelts or building edges. Example: Two 800 kVA units embedded in a coastal city’s pedestrian zone used ​only 5% of the planned space, freeing land worth millions.

1.2 Construction Speed Breakthrough: From Months to Days

• ​Factory Prefabrication: Core units are manufactured, assembled, and tested off-site. On-site installation, cable connections, and commissioning take ​3–7 days​versus traditional substations’ 3–6 months—accelerating deployment by ​20-fold​.
• ​All-Weather Resilience: During Typhoon Lekima (2019), two 1,600 kVA compact substations restored power in ​48 hours​after flooding, while traditional rebuilds required 4 months.

1.3 Economic Benefits: Lifecycle Cost Optimization

Compact substations reduce costs across initial investment and operations:

Case Study: An industrial park used two 400 kVA capacity-switching units instead of an 800 kVA traditional setup, saving ​​¥906,000​ over 20 years (initial cost + electricity fees).

1.4 Flexible Expansion: Dynamic Adaptation

• ​Modular Design: "Lego-like" configuration supports adding high-voltage cabinets, transformers, or low-voltage modules. Example: A Shenzhen tech park upgraded from 800 kVA to 1,600 kVA in ​two weeks​by adding transformer modules.
• ​Smart Capacity Switching: Next-gen units (e.g., ZGS series) auto-switch capacities (e.g., 125 kVA/400 kVA). During low-load periods, no-load losses drop to ​1/3 of large-capacity mode, solving "over-sizing" inefficiencies.

1.5 Environmental Integration: From Utility to Urban Asset

• ​Eco-Performance: Sealed designs + dry-type transformers (<55 dB) reduce noise by ​20 dB​versus oil-filled units. Electromagnetic shielding lowers field strength to safe levels for residential areas.

2 Technical Architecture: Innovation-Driven Performance

Compact substations leverage integrated designs and cutting-edge technologies for transformative performance.

2.1 Intelligent Monitoring & Control

• ​Real-Time Multi-Parameter Sensing: Temperature sensors (±1°C accuracy), partial discharge monitors (5 pC sensitivity), and 360° video surveillance create transparent operations.
• ​AI Predictive Alerts: Deep learning systems forecast transformer overheating ​72 hours in advance​with 92% accuracy, reducing downtime by 85% in automotive plants.

2.2 Triple-Layer Safety System

• ​Structural Safety: IP54-rated enclosures and pressure-release channels (0.5 Bar response) withstand floods and pests.
• ​Electrical Safety: Fully insulated busbars (42 kV/1 min withstand) and rapid ground-fault isolation (<0.1 s) prevent electrocution.
• ​Fire Safety: Auto-extinguishing systems (temperature/smoke-linked) + flame-retardant materials (oxygen index >32) meet NFPA standards.

2.3 Efficient Thermal Management

• ​Dynamic Cooling: Graded ventilation (>45°C triggers forced airflow) and directional cooling (dedicated transformer ducts) limit temperature rise to ​​<65 K​in extreme heat.
• ​Phase-Change Materials: Aerogel composites (thermal conductivity: 0.018 W/m·K) in wall layers boost insulation efficiency by ​50%​​.

3 Application-Specific Solutions

Compact substations deliver tailored configurations for diverse scenarios.

3.1 High-Density Urban Areas

• ​Challenges: Space constraints, high reliability demands, environmental sensitivity.
• ​Solution:

COOPER-type compact substations + underground cabling + aesthetic integration.

SF6-insulated ring-main units (350mm width) for sidewalk installation.

Dual-circuit auto-transfer (ATS <100 ms) for N-1 security.

3.2 Rural Grid Upgrades

• ​Challenges: Dispersed loads, long supply radii, limited maintenance.
• ​Solution:

Capacity-switching units (125/400 kVA) + solar microgrids + 4G/5G remote monitoring.

Distributed siting (supply radius ≤500m) cuts line losses by ​15%​​.

3.3 Renewable Energy Integration

• ​Challenges: Intermittency, grid-compliance, harsh environments.
• ​Solution:

Wind/PV-optimized substations (-40°C to +50°C operation) + harmonic suppression (THD<3%).

Power forecasting coordination reduces curtailment rates.

3.4 Emergency Power Assurance

• ​Challenges: Rapid response, environmental adaptability, quick deployment.
• ​Solution:

Mobile trailer-mounted substations + self-lifting systems (no cranes needed).

Multi-source compatibility (generators, storage, grid).

Case: 12 mobile units restored critical facilities in ​24 hours​during 2021 floods—5× faster​ than traditional methods.
