12kV Indoor Vacuum Circuit Breaker Southeast Asia Solution: Anti-Corrosion Compact Design
12kV Indoor Vacuum Circuit Breaker Southeast Asia Solution: Anti-Corrosion Compact Design

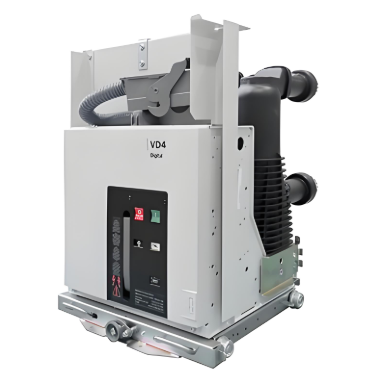

Ⅰ. Executive Summary
Southeast Asia faces rapidly growing electricity demand alongside environmental challenges including high temperatures, humidity, salt spray corrosion, and grid instability. This solution recommends Solid Insulated Pole-Mounted Vacuum Circuit Breakers (VCB) featuring high reliability, compact design, and smart monitoring. Tailored for tropical climates and industrial scenarios, it supports rapid deployment through localized certification.
II. Market Demands & Challenges in Southeast Asia
- Environmental Adaptability
- Corrosion-resistant nickel-phosphorus alloy coating on enclosures.
- Chromate passivation + anti-rust paint on mechanism springs.
- Wide temperature tolerance (-15°C to 40°C; short-term storage at -30°C).
- Conditions: Persistent high temperatures (≤40°C), humidity (monthly avg. ≤90%), and coastal salt spray.
- Solutions:
- Compact Design & Compatibility
- Solid-insulated poles (APG process) or insulating barriers + heat-shrink tubing ensure 95kV Basic Impulse Level (BIL) at 150mm phase spacing.
- Compatibility with mainstream cabinets (e.g., KYN28A-12, XGN2) in fixed/drawout configurations.
- Requirement: Switchgear width ≤600mm (vs. traditional 800mm) for space-constrained substations.
- Technology:
- Operational Reliability
- High-Frequency Scenarios: Manufacturing plants/ports require ≥30,000 mechanical cycles and E2/M2-grade breakers (extended electrical/mechanical lifespan).
- Safety: IAC AFLR 40kA/1s certification for arc-fault protection.
III. 12kV VCB Technical Specifications
|
Parameter |
Specification |
|
Electrical Performance |
Rated voltage: 12kV; power-frequency withstand: 42kV; BIL: 75kV (meets SG/MY/ID standards). |
|
Breaking capacity: 25kA (base), 31.5kA (premium) for Indonesia’s high fault currents. |
|
|
Cup-shaped longitudinal magnetic contacts reduce arc wear, enhance dielectric stability. |
|
|
Environmental Design |
≥2mm S304-grade stainless steel housing; IP65 protection for tropical environments. |
|
1,000-hour salt spray test validation for coastal corrosion resistance. |
|
|
Independent arc-venting compartments for fault safety. |
|
|
Mechanical Durability |
≥30,000 mechanical cycles (exceeds Indonesia’s SNI 5,000-cycle standard). |
|
≥50 short-circuit interruptions; maintenance-free spring operating mechanism (motor/manual). |
|
|
Smart Features |
Integrated contact wear sensors and vacuum interrupter diagnostics for remote monitoring. |
|
Grid automation interfaces for Thailand/Vietnam smart-grid readiness. |
IV. Localization Support & Certification
- Certification Compliance
|
Country |
Mandatory Cert. |
Additional Requirements |
|
Indonesia |
SNI (Safety) |
Kominfo (Wireless) |
|
Philippines |
BPS (Electrical) |
PEEC (Energy Efficiency) |
|
Singapore |
SAFETY MARK |
PSB (Safety Codes) |
|
Region-wide |
IEC 62271-100 |
Full test reports provided |
2. Local Support
- Technical partnerships: On-site maintenance training and spare parts inventory via local collaborators.
