WZCJ-V Lightning impulse voltage generator - Wone

WZCJ-V Lightning impulse voltage generator

$15000.00

Basic info

Brand	Wone
Model NO.	WZCJ-V Lightning impulse voltage generator
Rated voltage	200kV
Series	Tester

Product Detail

WZCJ-V Lightning impulse voltage generator

The impulse voltage generator is mainly used for the impulse voltage test of the full wave of lightning impulse voltage, the chopped wave of lightning impulse voltage and the operation impulse voltage wave of power equipment and other test products to test the insulation performance. Impulse voltage generator A power supply device that simulates impulse voltages such as lightning and operating overvoltages. It is mainly used in tests such as insulation impulse withstand voltage, dielectric impulse breakdown and discharge.

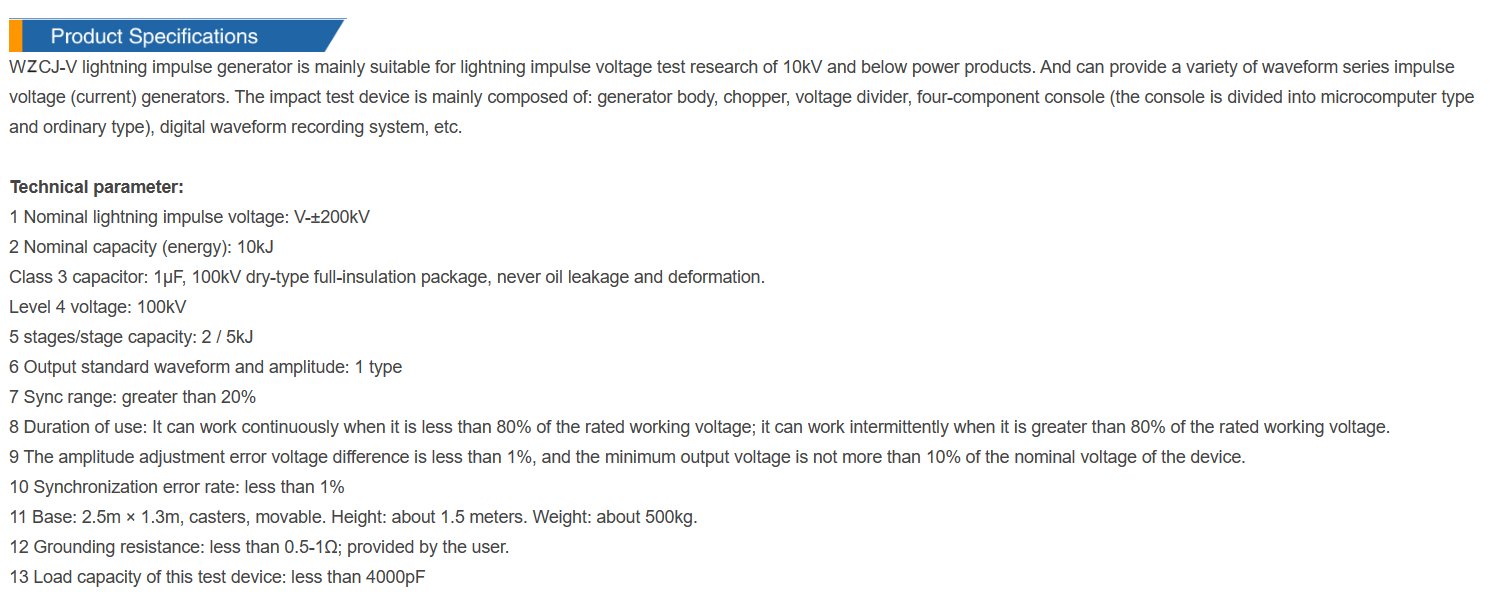

WZCJ-V Lightning impulse voltage generator.png
