Three Phase Plug-in Transformer

discuss personally

Model

Three Phase Plug-in Transformer

Basic info Product Detail Supplier

Basic info

Brand	Rockwell
Model NO.	Three Phase Plug-in Transformer
type	Distribution
Series	H59

Product Detail

Description

The H59 refers to a power transformer where both the high-voltage and low-voltage bushings are vertically installed on the top of the unit. This structural design allows all high- and low-voltage leads to be routed through the top, making it suitable for scenarios with strict lateral space constraints or requiring vertical busbar connections. It is a common type of oil-immersed transformer.

And a high-voltage pluggable bushing-type transformer is one type of H59. It is a transformer designed with pluggable bushings for its high-voltage connections. Compared to conventional transformers. the high-voltage pluggable type offers greater wiring convenience, simplified installation and maintenance, as well as superior sealing and insulation performance.

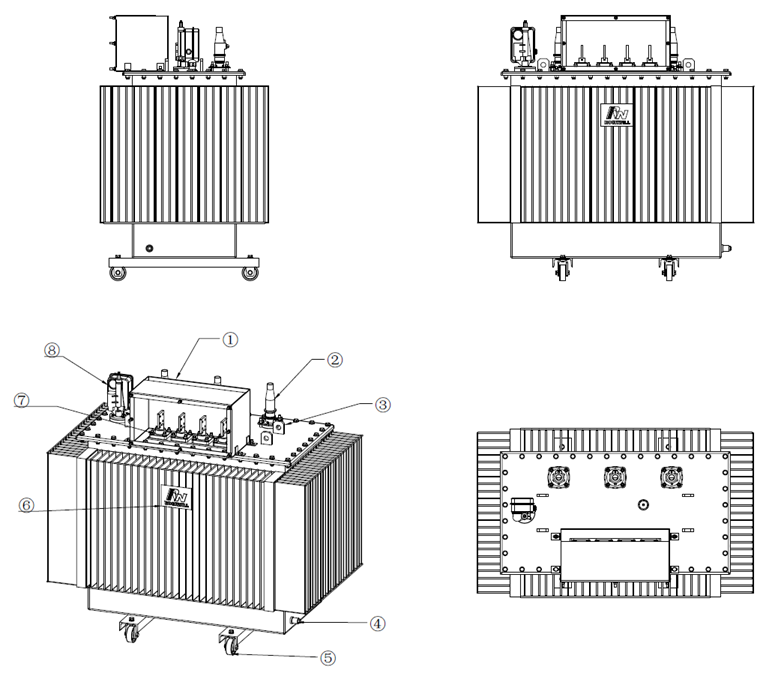

Outline Drawing Reference

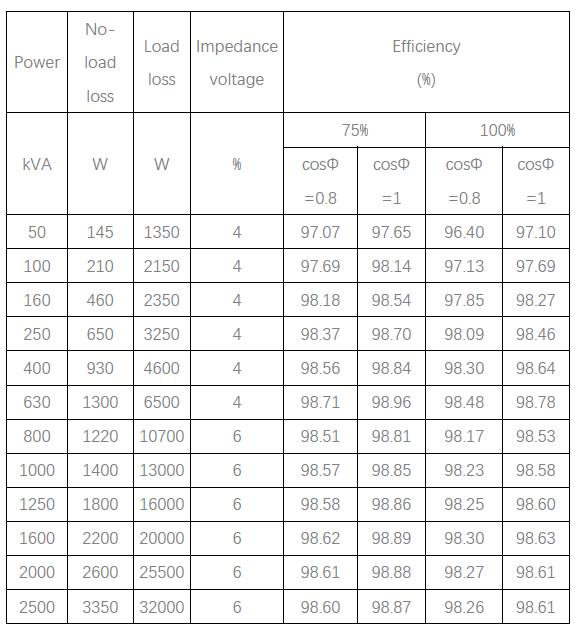

Main Technical Parameters

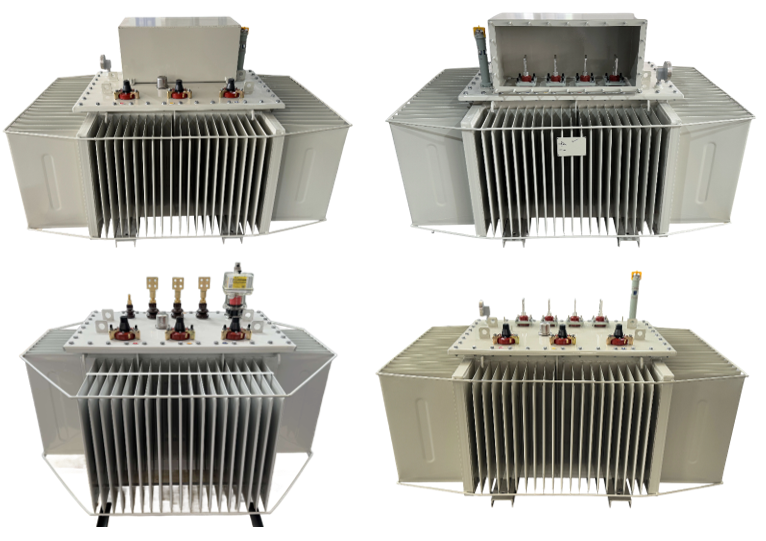

Reference Photo

Know your supplier

Rockwell

Wenzhou Rockwell Transformer Co., Ltd. It is a high - tech enterprise integrating R & D, production, sales, and service. It focuses on the manufacturing of power transformers and supporting equipment, and is committed to providing efficient, reliable, and energy - saving power transmission and distribution solutions for global customers. We can offer: •Distribution transformers and substations •Outdoor switchgears and breakers(recloser) •Switchgears and it’s components (GIS, RMU, VCB, SF6 CB) Market and Service: We always take customers as the orientation and provide customized services according to their requirements. Our products are exported to the Middle East, Africa, Northern Europe, South America, and many other countries and regions. Drive the future of electricity with technological innovation and become a leading global supplier of intelligent power equipment.
