Three-phase Keypad Smart Energy Meter
$70.00
TPEM-100
Basic info
Brand Wone
Model NO. Three-phase Keypad Smart Energy Meter
Rated normal current 100A
Analogue input type Direct input
Communication port support RS485/RF
Number of outputs 1 pulse
Number of inputs 1
Multi-tarff 4 tariffs
Current transformer No
Series GST7666-G
Product Detail

Description

GST7666-G  is  a three-phase multi-function energy meter with embedded communication modules, used to accurately measure energy for commercial, industrial & residential customers. The meter supports optional communication modules of PLC/RF/GPRS/3G/4G, with communication protocol complying with DLMS/COSEM protocol. It could be optionally used in STS-compliant prepayment mode or postpaymentmode .

Feature

  • STS-compliant prepayment.

  • DLMS/COSEM compliant.

  • Built-in load control.

  • Infrared port/RS 485.

  • Tamper detection & recording.

  • Active/reactive energy measurement.

  • LCD display capable of reading without power.

  • Prepayment/postpayment mode switchable.

  • Plug & play PLC/RF/GPRS/3G/4G module.

  • Display scroll button or STS keypad (optional).

  • Programmable warning of power limit & low credit.

  • Dual power source switchable between power grid & solar system.

  • Disconnecting on overload & no-credit condition.

  • Max demand measurement & load profiling(customizable).

Specifications

Main
Range GST
Model NO. GST7666
Product or Componet Type Energy meters
Country of origin China
Complementary
Phase Three-phase
Type of measurement

Active power;current

voltage;Active power
Metering type

Active,

reactive,

apparent energy (signed, four quadrant)
Device Application Keypad ,Multi-tariff
Accuracy class

Class1.0  active energy IEC62053-21

Class2.0  Reactive energy as IEC62053-23
Input type ---
Rated voltage 230V
Network Frequency 50~60Hz
Technology Type Electronic
Display Type LCD display
Sampling rate ---
Maximum value measured -----
Tariff input Tariff 4
Communication port protocol ---
Communication port support RS485/RF
Local signalling Green indicator light power ON
Yellow flashing LED accuracy checking
alarm overload
Number of inputs ---
Number of Outputs ---
Output voltage ---
Mounting Mode ---
Mounting Support ---
Connections - terminals Maximum cable size 10mm
Standards

IEC62053-21

IEC62053-23
Environment
IP degree of protection P54
Ambient air temperature for operation -25℃~+70℃- IEC
Ambient Air Temperature for Storage -40℃~+85℃

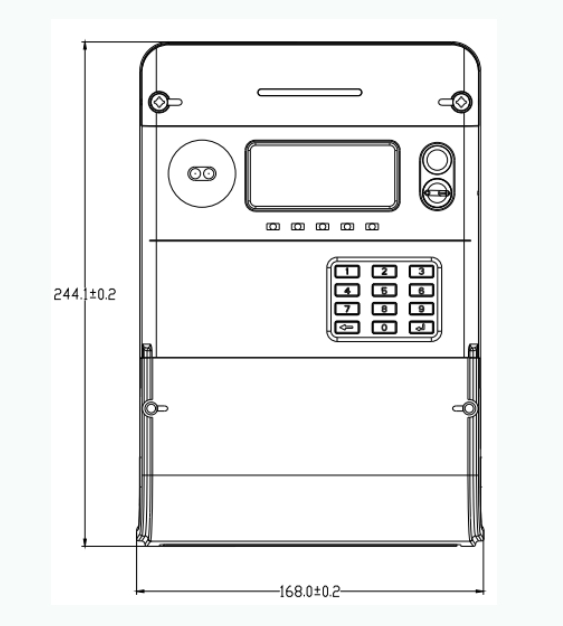

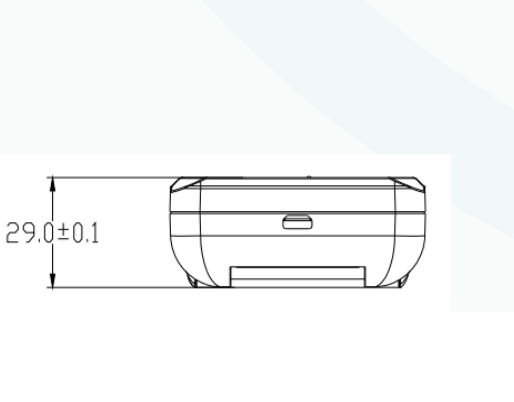

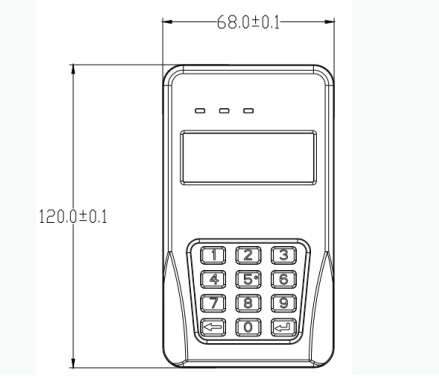

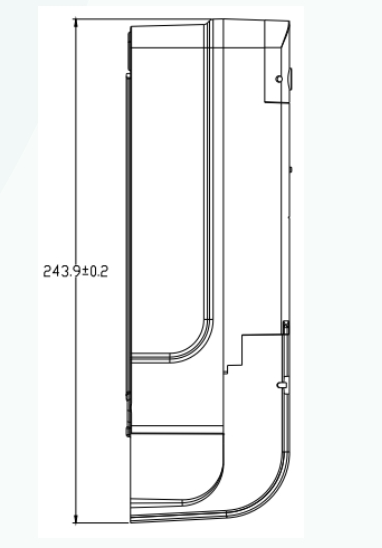

Dimensions 120*68*29/244*165*79
Packing Units
Unit Type of Package 1 PCE
Package 1 Height
Package 1 Width
Package 1 Length
Package 1 Weight



Dimensions
