• PCMC Series Frequency Conversion Cable
PCMC Series Frequency Conversion Cable
discuss personally
Basic info
Brand Wone
Series PCMC
Product Detail

Application

    With the rapid development of frequency conversion technology the frequency conversion speed control system possesses illustriousenegy-saving effect, wide adaptability projecting superiority so as to be used widely such as:steel works petrochemical industry powerplant, paper making textile metal machining and food processing etc automatic transimittal, also be used to pressure pumps ventilators and central air-conditioner etc systems. FCMC-P serial frequancy conversion motor cable possesses remarkable shielding characteristic and good restraint effect to the high frequency harmoic wave from frequancy convertor so it is an important product in the frequency conversion speed control and it can not be replaced.

    To satisfy applicative requirement of large size capacity and specially large size capacity frequancy conversion speed control motor. Our company have developed 1.8/3kV,3.6/6kV, 6/6kV,6/l0kV,8.7/l0kV and 8.7/15kV rated voltage frequency conversion motor cables as well as 0.6/1kV frequency conversion motor cable.

Metallic tape corrugated & shielded

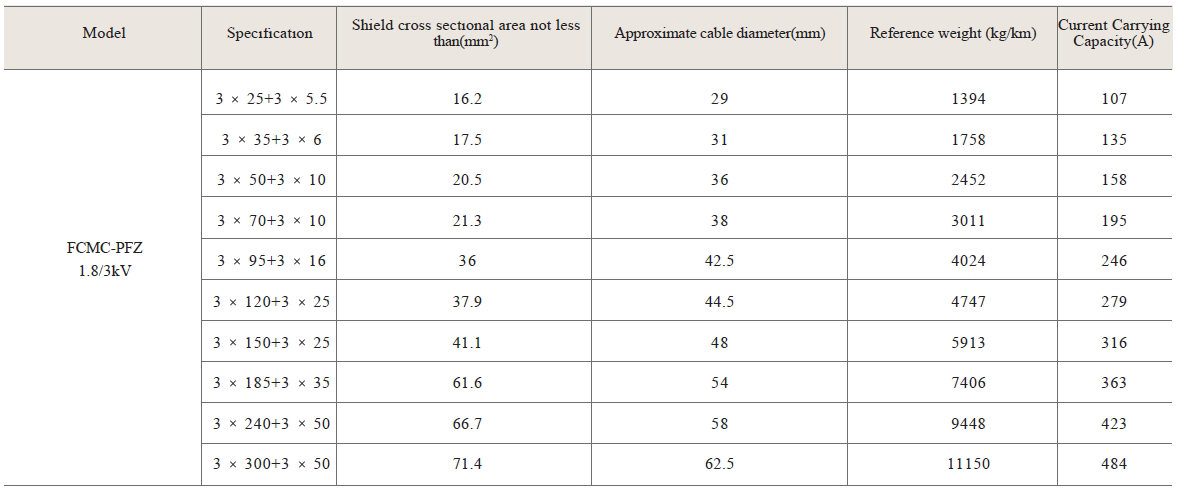

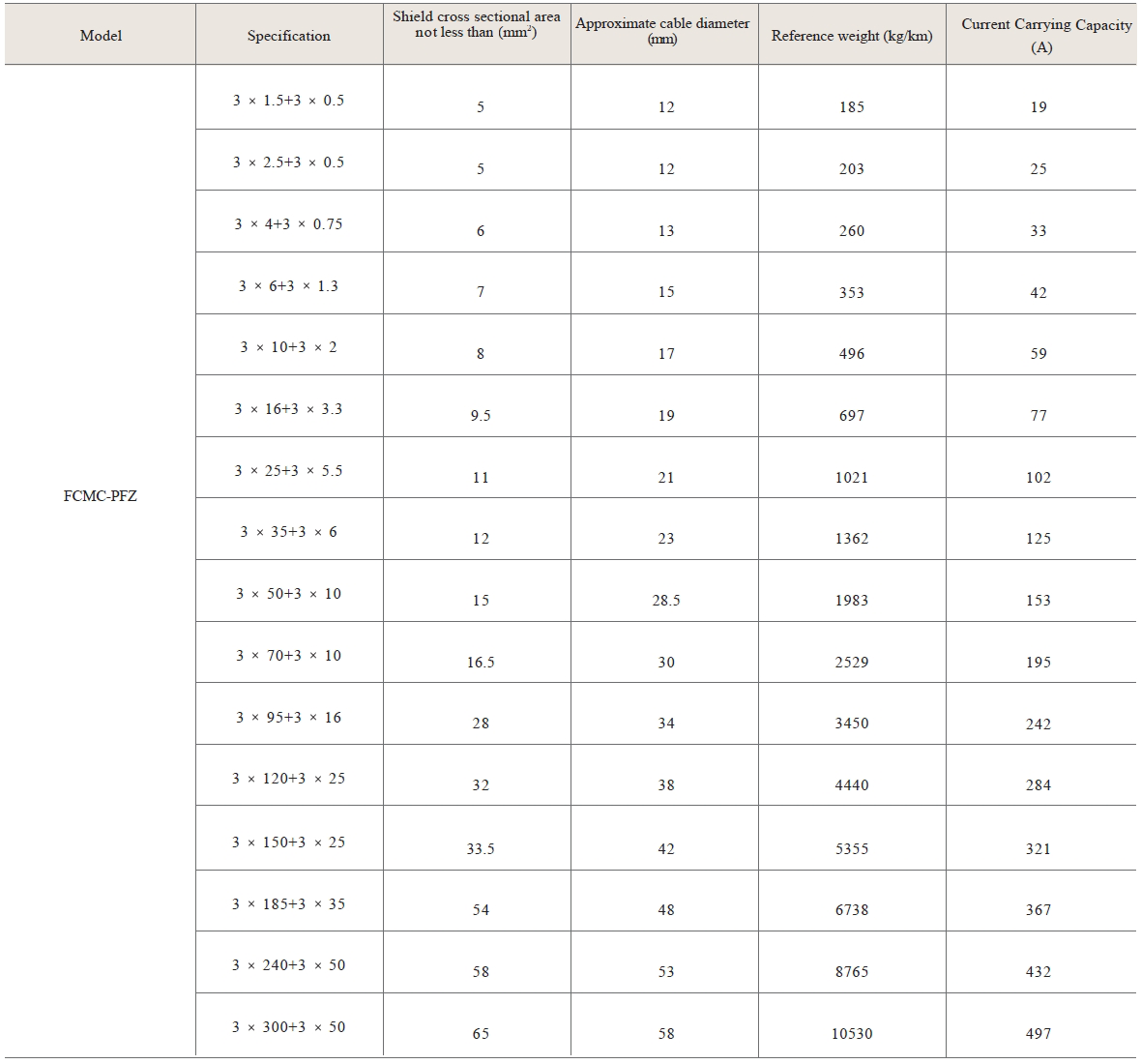

Metallic tape corrugated & shieldedFCMC-PFZ 3.png

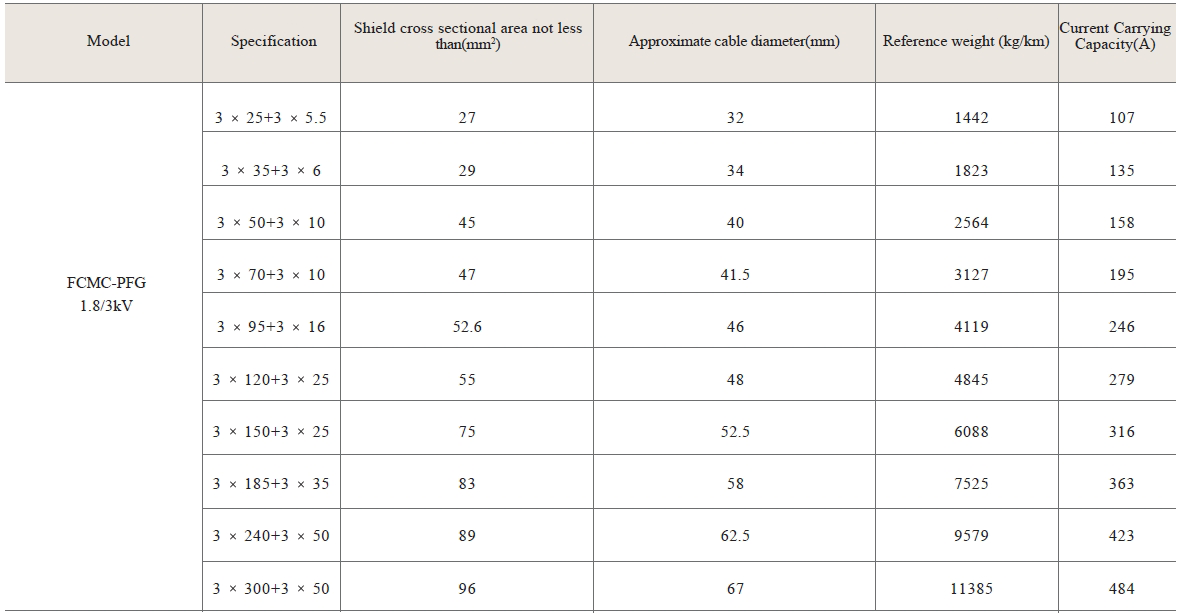

Metallic tape & corrugated & shieldFCMC-PFG.pnged

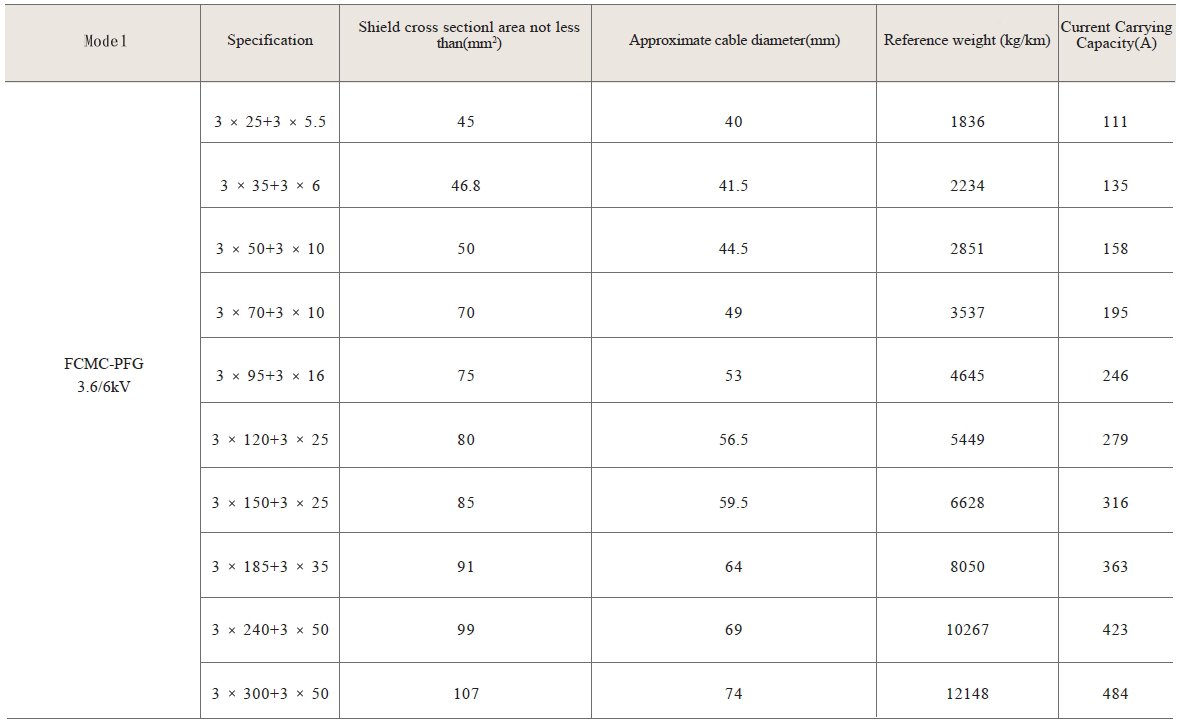

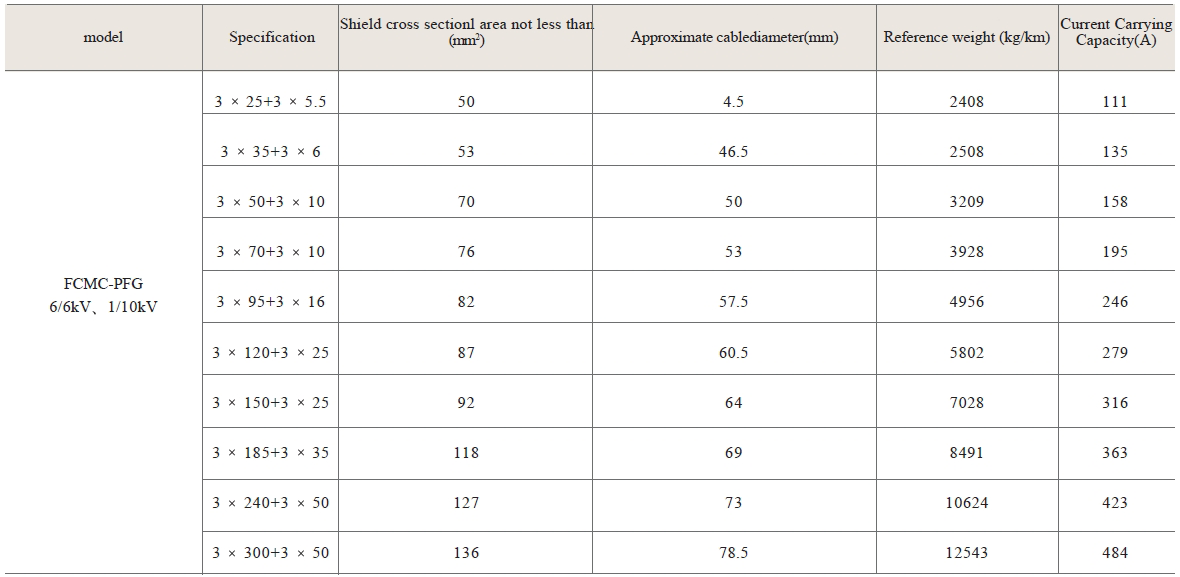

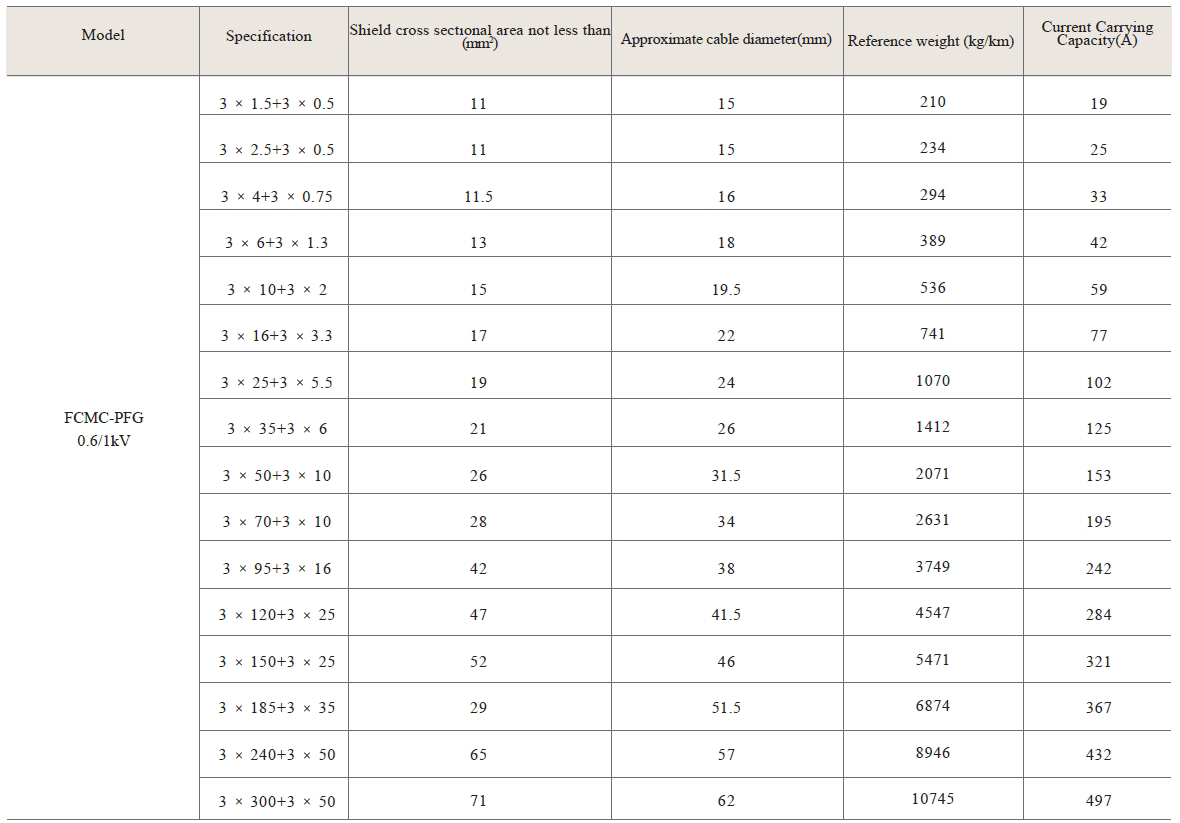

Metallic tape corrugated & shieldedFCMC-PFG2.pngFCMC-PFG3.pngFCMC-PFG4.png

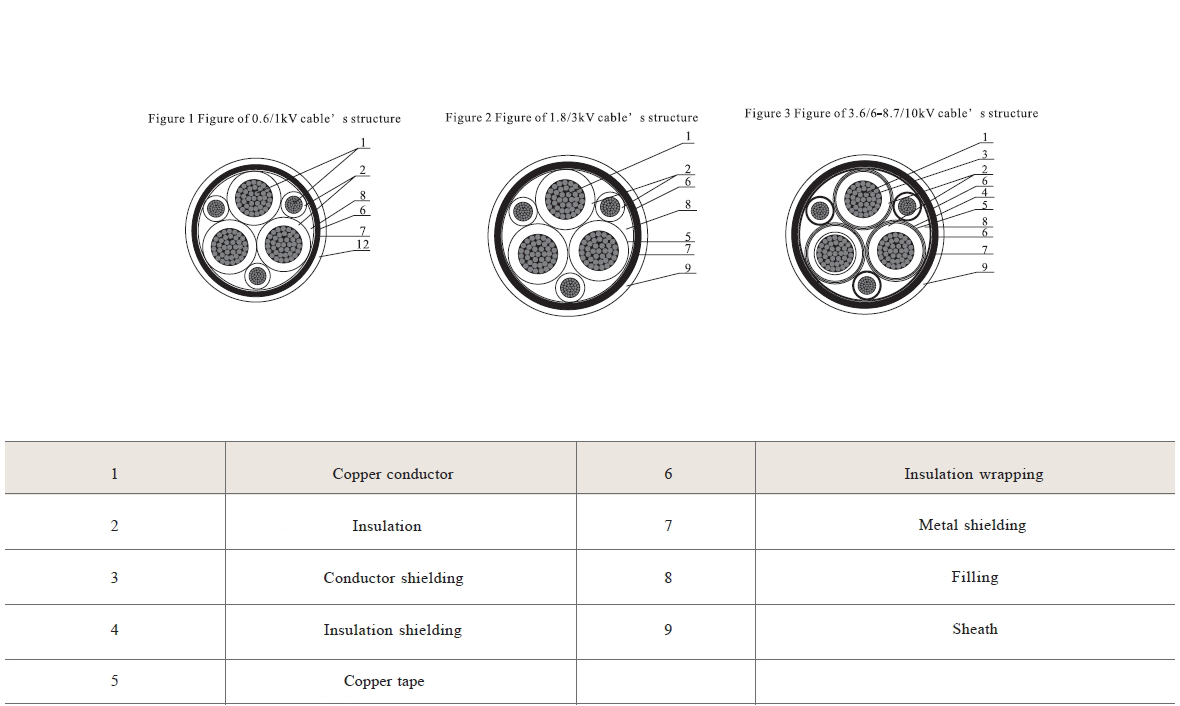

Structure



Q: What is a variable frequency cable?

A: Frequency conversion cable is used for the connection between frequency conversion power supply and frequency conversion motor cable. It has special structure and properties.

Q: What are the characteristics of frequency conversion cables?

A: It can effectively resist high order harmonics and reduce electromagnetic interference to the surrounding equipment. It has good insulation performance and can adapt to the complex voltage and frequency changes in the frequency conversion system. Moreover, the symmetry of the frequency conversion cable is good, which can ensure the stability of signal transmission.

Q: What are the application scenarios of frequency conversion cables?

A: It is used in the industrial field, such as the connection of variable frequency speed regulating motor equipment in large factories. Like in an automated production line, the motor needs to adjust the speed according to different production processes, and the frequency conversion cable can meet this demand well. There are also some places that need to accurately control the motor speed, such as elevator systems, air conditioning systems in the frequency conversion motor and the power supply will also use frequency conversion cables.
