N-Series Three-Phase Recloser with ADVC Controller

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Schneider
Model NO.	N-Series Three-Phase Recloser with ADVC Controller
Rated voltage	15kV
Series	N-Series

Product Detail

Overview

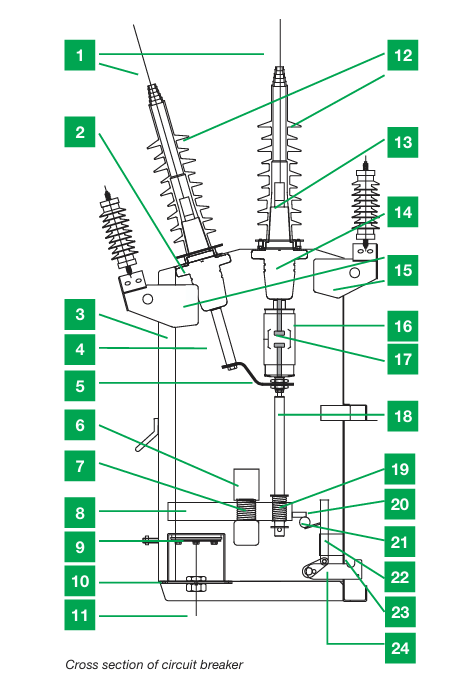

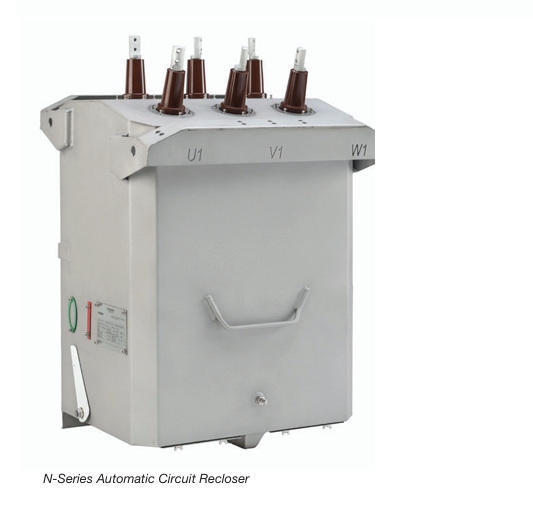

The N-Series ACR is designed around vacuum interrupters contained in a fully welded and sealed 316 marine-grade stainless steel enclosure. The N-Series ACR is designed around vacuum interrupters contained in a fully welded and sealed 316 marine grade stainless steel enclosure. The enclosure is filled with sulphur hexafluoride (SF6) gas or dry air (‘N-green’ option), which both have excellent electrical insulating properties, resulting in a compact and low-maintenance device.

ADVC Features

Each recloser is provided with an operator interface. From here a user can access and program the many measurement and protection features available. The two following operator
interfaces are available:

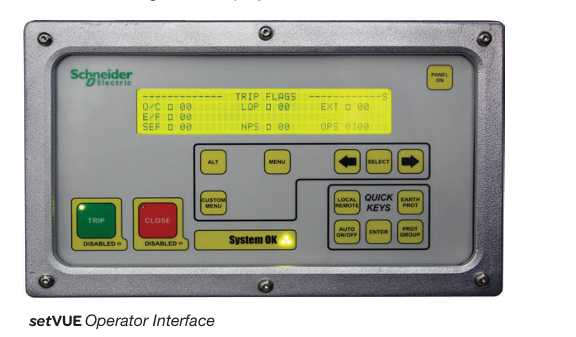

SetVUE Operator Interface
Based on the field-proven operator panels in the previous controllers, this menu-driven interface with large LCD display offers a familiar look and feel.

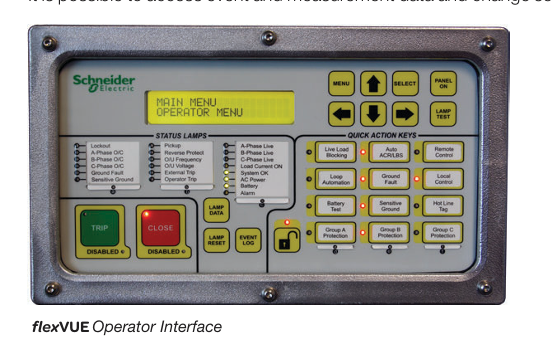

FlexVUE Operator Interface

20 Status Lights provide a quick snapshot of the protection and controller status.
12 Quick Action Keys are available to execute frequently used actions such as «Remote control» ON/OFF, «Reclose» ON/OFF, etc. Each key has its own status light to indicate the ON/OFF state.
All Status Lights and Quick Action Keys are customizable.
It is possible to access event and measurement data and change settings.

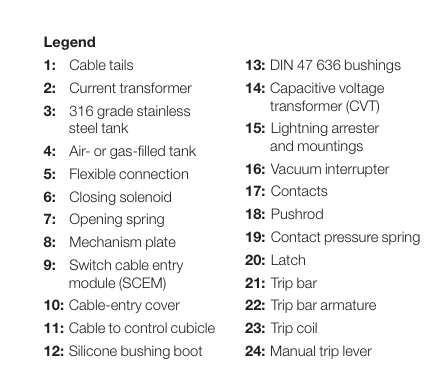

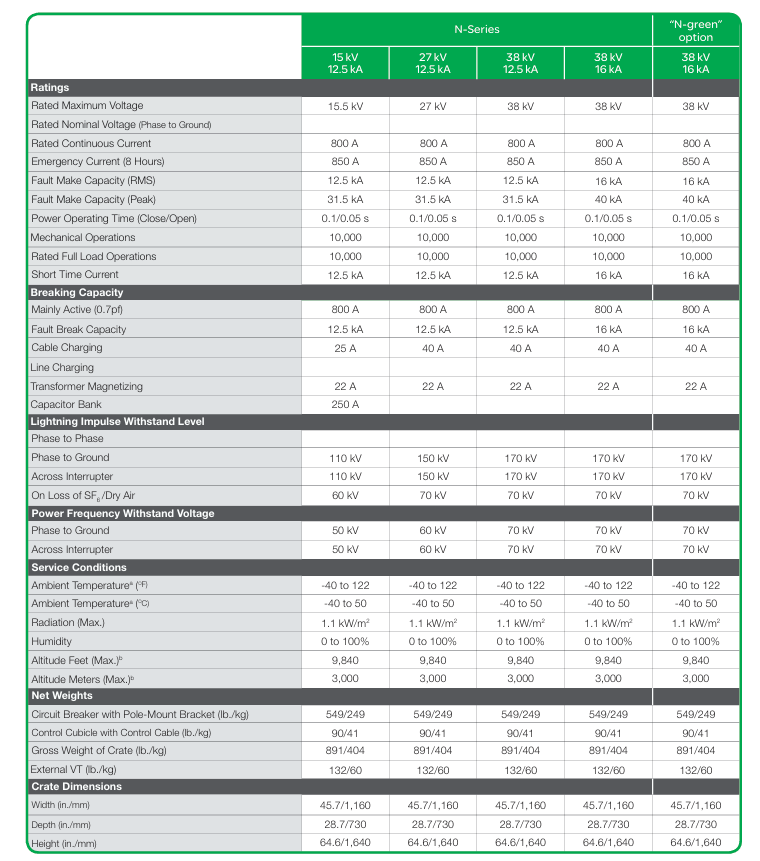

N-Series Recloser Specifications
