  • High Performance 100kVA 250kVA Combined Single Phase Cooper Pad Mounted Transformer
High Performance 100kVA 250kVA Combined Single Phase Cooper Pad Mounted Transformer
discuss personally
Model
ZGS-250kVA
ZGS-100kVA
Basic info Product Detail Supplier
Basic info
Brand ROCKWILL
Model NO. High Performance 100kVA 250kVA Combined Single Phase Cooper Pad Mounted Transformer
Rated frequency 50/60Hz
Rated capacity 250kVA
Series ZGS
Product Detail

Descripton

The pad-mounted transformers are designed for reliable underground power distribution, featuring robust construction and comprehensive protection systems. These units combine essential safety features with flexible configuration options to meet diverse power distribution needs. Engineered to ANSI/IEEE standards, our transformers deliver dependable performance in both standard and demanding environmental conditions.

Standard Protection & Safety

  • Dual fuse protection system (Bay-o-net & current limiting)

  • Pressure relief device for internal fault protection

  • Grounding bracket and X0 strap for secure earthing

  • ANSI-compliant exterior finish for corrosion resistance

  • Permanent engraved aluminum nameplate for identification

Enhanced Functionality Options

  • Customizable HV/LV bushings (stud or spade type)

  • Load break switches with padlocking provision

  • Advanced monitoring (liquid level gauge, thermometer)

  • Remote fault indicator light capability

  • Specialized insulating fluids (FR3 biodegradable option)

  • Anti-corrosion skirt for harsh environments

  • Custom labeling and identification systems

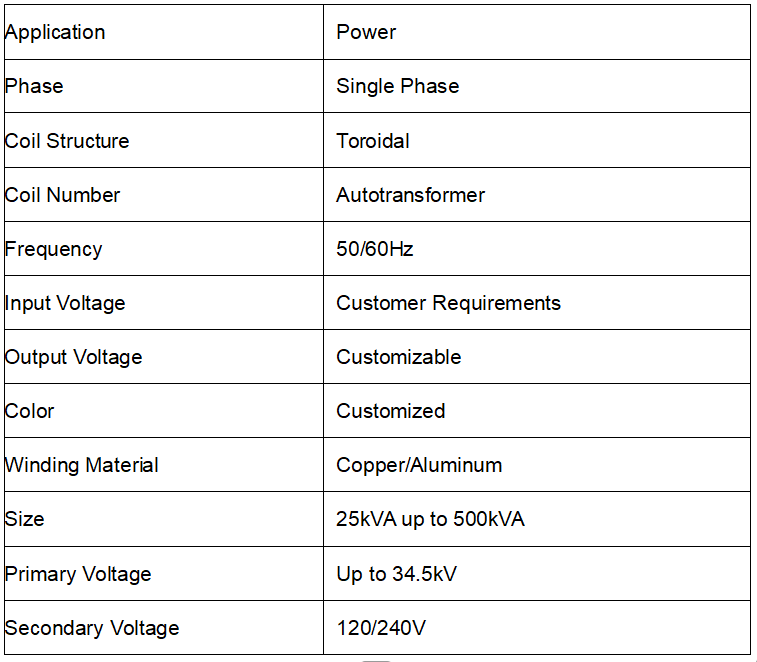

Main Technical Specifications

Technical Superiority

  • Optional high-voltage off-circuit taps

  • Purchaser-specified impedance configurations

  • Comprehensive testing per ANSI/IEEE C57.12.90

  • Internal fault detection with visual indicators

  • Flexible protection device alternatives

Applications

  • Urban power distribution networks

  • Industrial facility power systems

  • Renewable energy interconnection points

  • Critical infrastructure power supply

  • Commercial complex electrification

  • Contaminated or corrosive environments

Know your supplier
ROCKWILL
Rockwill Electric Group Global Manufacturer of High voltage and medium-voltage power equipment and smart grid solutions. Headquartered in Wenzhou, China. Serving 100+ countries with quality, innovation, and trust. What We Offer: • HV-MV switchgear (VCB, SF₆ circuit breakers, RMU, GIS) • Distribution transformers and substations • Smart grid and monitoring systems • Solar, wind, EV charging, and energy storage solutions • EPC turnkey power projects Certified: ISO 9001 / ISO 14001 / ISO 45001
Main Categories
High voltage
Business Type
Design/Manufacture/Sales
Highest Annual Export (USD)
$150,000,000
Professional Experience
16 years
Workplace
108000m²m²
占位
占位
Related Products
More
Related Knowledges
More
Installation and Commissioning of 10kV Dry-Type Transformers
Installation and Commissioning of 10kV Dry-Type Transformers
By James, 10 Years of Electrical Equipment Maintenance ExperienceHi everyone, I’m James, and I’ve been working in electrical equipment fault repair for 10 years.Over the past decade, I’ve worked in factories, substations, and distribution rooms of all sizes, involved in the installation, commissioning, maintenance, and troubleshooting of dry-type transformers. Dry-type transformers are among the most common electrical devices we deal with on a daily basis.Today, a new colleague
James
07/01/2025
What are the reasons for low insulation at the low-voltage side of a dry-type transformer?
What are the reasons for low insulation at the low-voltage side of a dry-type transformer?
Hi everyone, I’m Felix, and I’ve been working in electrical equipment fault repair for 15 years.Over these years, I’ve traveled across factories, substations, and distribution rooms all over the country, troubleshooting and repairing all kinds of electrical equipment. Dry-type transformers are among the most common devices we deal with.Today, a friend asked me:“What does it mean when the low-voltage side of a dry-type transformer has low insulation resistance?”Great
Felix Spark
07/01/2025
What tests are required for dry-type transformers?
What tests are required for dry-type transformers?
1 Pre - commissioning InspectionAs a front - line tester, before formally commissioning a dry - type transformer, I need to carry out a comprehensive and systematic inspection. First, I conduct a visual inspection of the transformer body and its accessories, carefully checking for mechanical damage or deformation. Then, I check whether the leads of the high - and low - voltage windings are firmly connected and whether the bolt tightening torque meets the standard requirements (usually 40 - 60N&m
Oliver Watts
07/01/2025
What aspects need attention during the installation of dry-type transformers?
What aspects need attention during the installation of dry-type transformers?
1 Pre - installation PreparationAs a front - line installer, I know very well that the preparation work before installing a dry - type transformer must be thorough. First, I will carefully review the design drawings and technical documents, and check one by one the technical parameters such as the model specification, rated capacity, and voltage level of the transformer to ensure they are in full compliance with the design requirements. Then, I will conduct an unpacking inspection of the transfo
James
07/01/2025

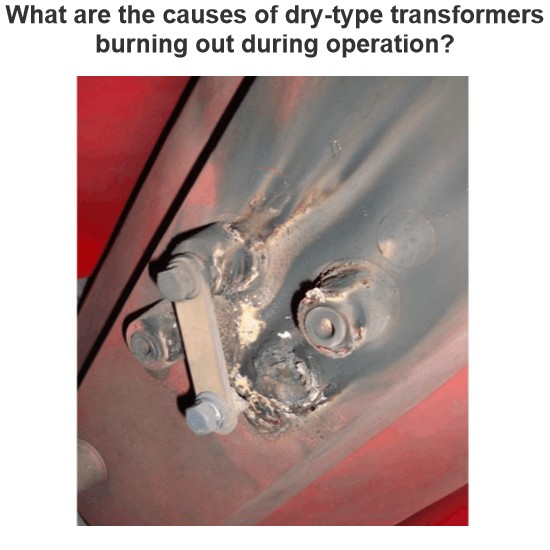

What are the causes of dry-type transformers burning out during operation?
