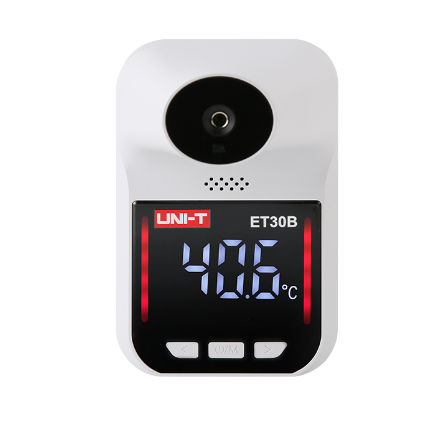

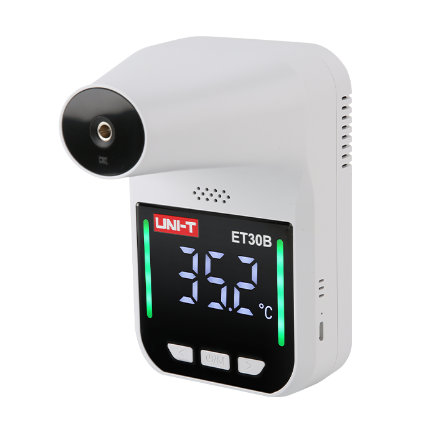

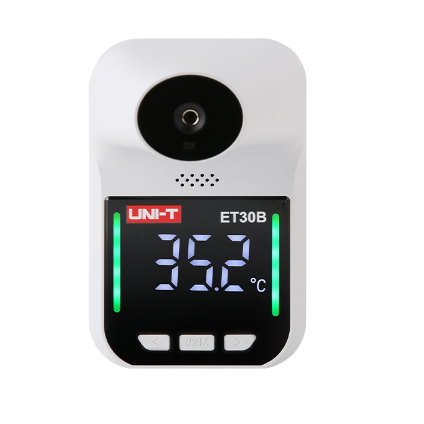

ET30B Non-Contact Infrared Thermometer
$30.00
Model
NCIR-4
NCIR-16
Basic info
Brand Wone
Model NO. ET30B Non-Contact Infrared Thermometer
External dimensions 107mm×75mm×80mm
language 4
Series ET30B
Product Detail

Description

ET30B thermometer is a non-contact thermometer, the design is small and easy to carry, the temperature measurement response time is fast, the accuracy feedback, avoiding waiting in line, non-contact design, personnel are safer, 118 groups of data storage, real-time viewing, widely used in, school gate, factory gate, supermarket door, subway station door, taxi back seat, etc

Industry applications

The principle of infrared transmission of numbers is used to sense the surface temperature of objects, which is more convenient to operate, especially for the measurement of high-temperature objects. It is widely used, such as steel casting, furnace temperature, machine parts, glass, room temperature, body temperature and other surface temperature measurement.

Features

  • Multi-Chinese Alarm (English, Italian, Korean, Spanish, Japanese, Vietnamese, Cambodian, Malay, Indonesian, Arabic, Thai, Polish, Chinese).

  • Data storage (display of measured temperature).

  • Rapid temperature measurement (temperature units can be switched between Celsius and Fahrenheit).

  • Non-contact temperature measurement.

  • Multiple power supply methods.

  • Dual mounting.

  • Volume adjustment (adjustable volume).

  • You can set it to shut it down.

  • Multiple languages are adjustable.

  • Temperature alarm setting (alarm temperature can be customized).

Technical parameters

Model ET30B
precision ±0.2°C (measured after 30 minutes of placement)
Alarm function Automatic alarm for abnormality, flash + sound alarm for about 5 seconds
Measure distances 1cm-10cm automatic measurement
Ambient temperature 0°C-50°C (15°C-35°C recommended)
Measuring range 32°C-42°C (Body Surface Measurement Mode)
Response time 0.5s
Data storage It supports 118 sets of measurement data storage, review and clearing
Iisplay Digital display
Interface Micro   USB
power supply USB power supply, lithium battery power supply, No. 5 dry battery power supply
Installation method: The tripod is fixed and the hanging hole is mounted
language Available in 16 languages

size

145mm×95mm×110mm
