6kV-34.5kV Single Phase Automatic Voltage Regulator

discuss personally

Model

Single Phase Automatic Voltage R

Basic info Product Detail Supplier

Basic info

Brand	Rockwell
Model NO.	6kV-34.5kV Single Phase Automatic Voltage Regulator
type	Distribution
Series	RVR-1

Product Detail

Description

The RVR-1 single phase automatic voltage regulators are tap changing autotransformers. They regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 2400 volts (60kV BIL) to 34,500 volts (200kV BIL) for 50Hz and 60Hz systems. Internal potential winding taps and an external ratio correction transformer are provided on all ratings so that each regulator may be applied to more than one system voltage. Smaller KVA sizes are supplied with support lugs for pole mounting and with substation or platform tie down provisions. Larger sizes are provided with substation bases with pad-mounting provisions.

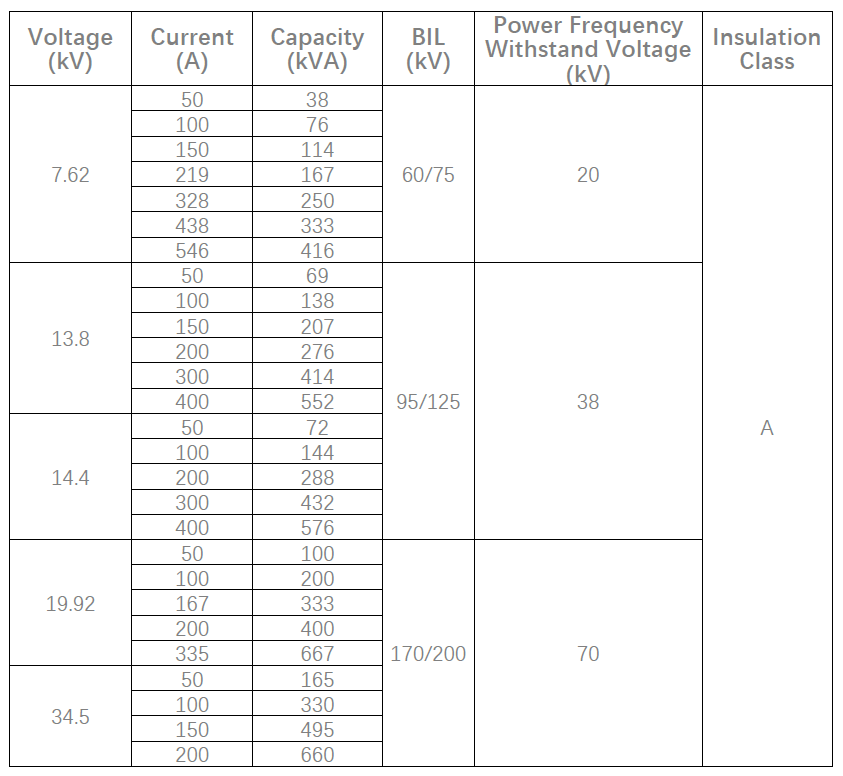

Load Current and Capacity Ratings, 50Hz

Load Current and Capacity Ratings, 60Hz

Outline Drawing Reference

Reference Photo
