Product Description
The RVR-1 single-phase step voltage regulator is an advanced tap-changing autotransformer designed for precise voltage regulation on 11kV overhead distribution lines. Manufactured exclusively in China, it automatically adjusts line voltage within a range of ±10% in 32 fine steps (approx. 5/8% per step), ensuring stable power supply under varying load conditions. Suitable for 50/60Hz systems, it offers flexible configurations for pole-mounted, pad-mounted, or substation installations.

Product Features

Precise Voltage Control

• 32-step tap changer (±10% range) for accurate voltage stabilization.

Wide Compatibility

• Supports system voltages from 2,500V to 19,920V (60–150 kV BIL) and currents up to 1,665A.

Advanced Digital Control

• Programmable settings for voltage limits, communication protocols, and data logging.

Flexible Installation

• Pole-mounted brackets, pad-mounted bolts, or substation bases (elevating platforms optional).

Robust Design

• Internal tap windings and optional ratio correction transformer for diverse grid applications.

Advantages

• High Reliability – Ensures consistent voltage output in harsh environments.
• Customizable – Adaptable to various system voltages and control requirements.
• Low Maintenance – Automated tap-changing reduces manual intervention.

Application Scenarios

• Rural/Urban Power Grids – Compensates for voltage drops in long-distance overhead lines.
• Industrial Zones – Stabilizes voltage for heavy machinery and sensitive equipment.
• Renewable Energy Integration – Manages fluctuations in solar/wind power-fed grids.
• Substations – Enhances voltage control in distribution networks.

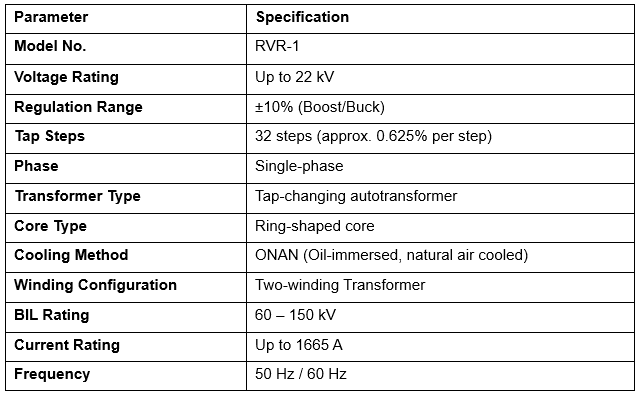

Technical Parameters
