12kV Medium voltage switchgear metal - enclosed Ring Main Unit (RMU)

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	POWERTECH
Model NO.	XGN15 series 12kV Medium voltage switchgear
Rated voltage	12kV
Series	XGN15-12

Product Detail

Product Overview

The XGN15 - 12 stands as a space - saving, stationary metal - enclosed Ring Main Unit (RMU) tailored for 12kV medium - voltage power distribution networks. Engineered to meet the demands of modern power systems, this unit is prominently applied in urban grid development, industrial and mining complexes, high - rise constructions, and public utility projects. It functions efficiently as a loop power supply module or terminal distribution apparatus, and can be seamlessly incorporated into prefabricated substation setups.

This RMU combines compact design with reliable performance, making it an ideal solution for scenarios requiring efficient power distribution in limited spaces. Its versatile integration capabilities enable seamless adaptation to diverse power infrastructure configurations, ensuring stable operation across various applications. Whether utilized for looped power supply networks or as terminal distribution equipment in critical infrastructure, the XGN15 - 12 delivers consistent performance and operational safety.

Structural Features

Switchgear compatible with SF6 load switches (FLRN36 - 13D/FLRN36 - 12D) having insulated enclosures.
Compact design, easy to operate.
Rear - mounted pressure relief duct protects operators during faults.
Switchgear configuration can be adjusted.
Reliable interlocking between load switch and earthing switch (in closed states) ensures stable operation.

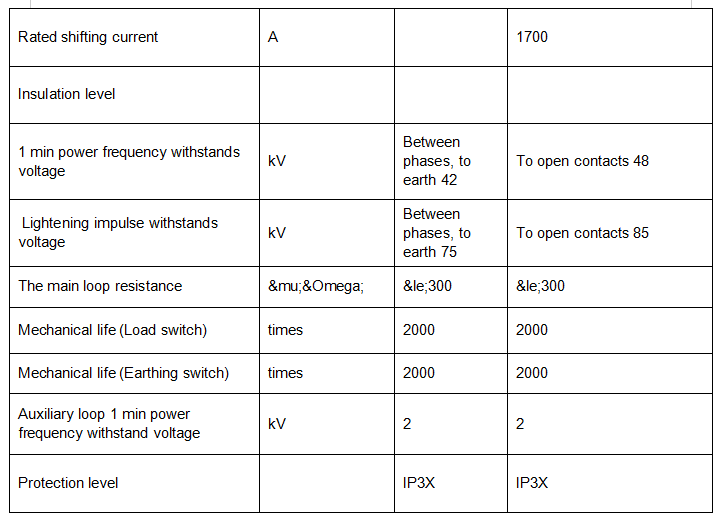

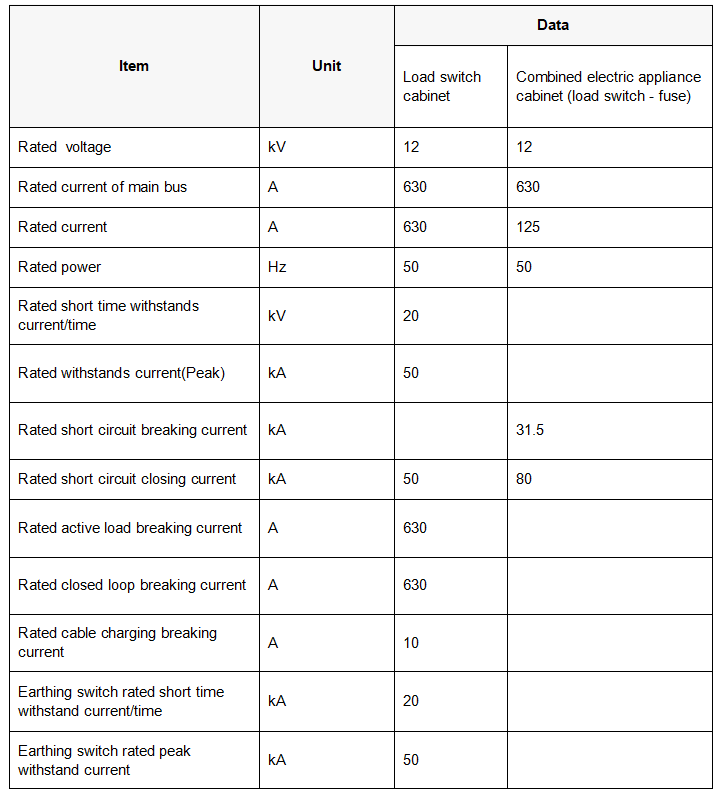

Technical parameter

Schematic diagram
