Descripton：

The single-phase traditional pad-mounted transformer ANSI is designed with superior performance at its core, covering a rated power range of 10-167 kVA. It offers multiple designs including MaxiShrub (ANSI Type 1), Shrubline (ANSI Type 2), and Ranch Runner to adapt to diverse application scenarios. The performance of this series of traditional transformers fully meets or exceeds the relevant standards of ANSI and NEMA. In terms of insulation media selection, the single-phase pad-mounted transformer supports filling with standard electrical-grade insulating mineral oil or fire-resistant FR3 fluid, balancing safety and flexibility.

Features：

• Flexible Insulation Media Options: Supports FR3 fire-resistant oil to enhance fire safety ratings or electrical-grade mineral oil to meet conventional requirements.

• Industry Standard Compliance: Performance fully meets or exceeds ANSI (except Ranch Runner front panels), NEMA standards, and DOE energy efficiency requirements.

• Reliable Core Components: Cores and coils are optimized for high reliability and low field failure rates, available in grain-oriented steel or amorphous steel.

• Overcurrent Protection Solutions: Standard Bay-O-Net fuses are included, with optional current-limiting fuses or weak-link designs for enhanced protection flexibility.

• Electrical Connection Compatibility: Tinned high/low-voltage bushing terminals accommodate aluminum or copper conductors, ensuring stable connections.

• Custom Configuration Capability: Can be specifically configured in accordance with Rural Utilities Service (RUS) specifications.

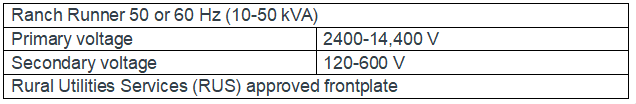

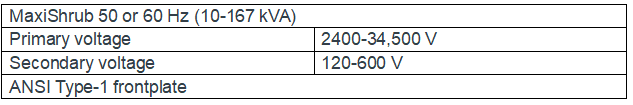

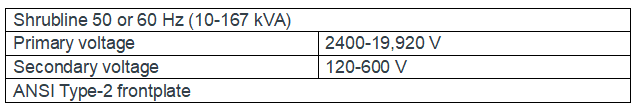

Technical Parameters：

Specifications：

• Meets or exceeds ANSI, NEMA and DOE2016 standards

• IEEE standards C57.12.00, C57.12.38, C57.12.28, C57.12.35, C57.12.90, C57. 91 and C57.154

• NEMA standards, NEMA TR 1 (R2000)

• Department of Energy Efficiency Standard, 10 CFR Part 431

• Tank coating exceeds IEEE Std C57.12.28-2005 and C57.12.29-2005 standards (stainless steel units only)

• Full compliance with IEEE Std C57.12.28-2005 standard enclosure integrity requirements

• Configurable to Rural Utilities Service (RUS) specification

• FR3 fluid or electrical grade mineral oil

• Cores and coils designed for high reliability and low field failure rates: Available in grain-oriented electrical or amorphous steel

• The transformer shall be designed in accordance with this specification and shall have an Average Winding Rise (AWR) of one of the following:

• 55 °C, 55/65 °C, 65 °C

• The applicable AWR rating shall be specified on the inquiry

• The transformer shall be designed in accordance with this specification and shall have one of the following kVA ratings:

• 10, 15, 25, 37.5, 50, 75, 100, 167

• The applicable kVA rating shall be specified on the inquiry

• Quality System ISO 9001 certified
