WYHP Series Outdoor Rubber insulated and shielded cable
discuss personally
Basic info
Brand Wone
Series WYHP
Product Detail

Executive standard

Q/YL12-2008

Usage

This kind of cable is used under the condition of half-shifting installation for rated voltage 250V in the field.

Exploitation conditions

Temperature between -45 to~+50 and the working temperature for cores should be not more than 65 .

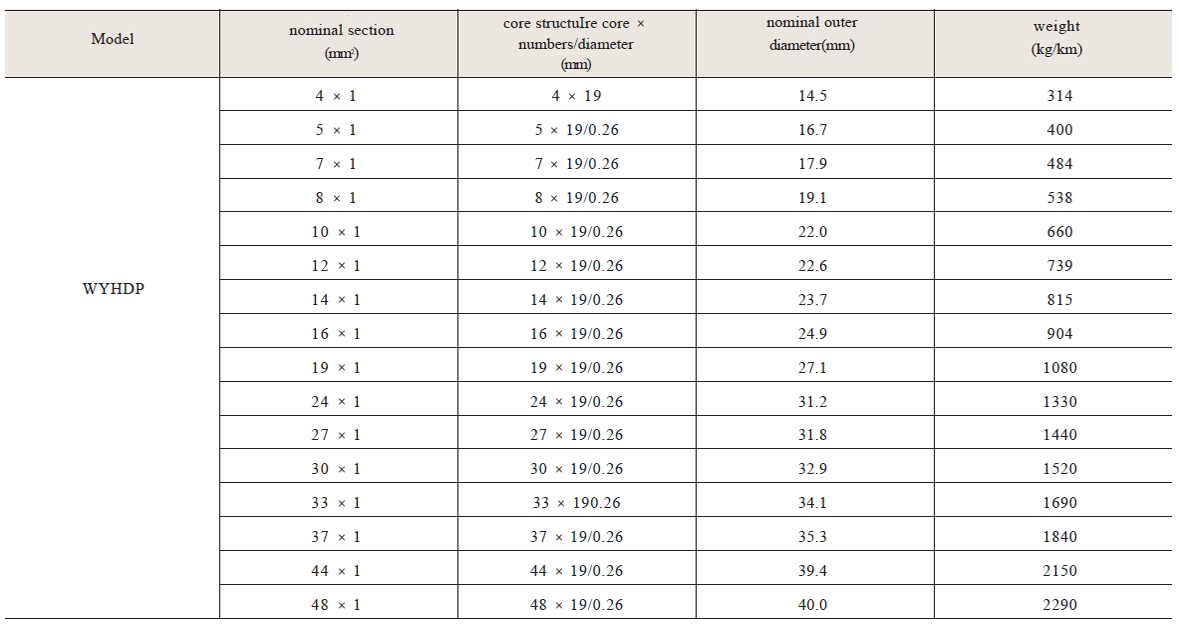

Specification,size and weight


Technological property

a. The inner layer of finished cable and weaving shield should be able to bear 50Hz.1000Vvoltage text for 5minutes;

b. If conductoe resistance or the finished cable core is exchanged to cable length 1 m, nominal Section 1mm2temperature 20 ,it will not be bigher than 0.019Ω;

c. If conductor resistance of the finished cable core is exchanged to cable length 1 km at temperature 20 ,it should not be smaller than25mΩ.


Q: What kind of cable is WYHP cable?

A: WYHP cables are low-smoke halogen-free shielded cables.

Q: What is special about WYHP cables?

A: First of all, the characteristics of low smoke and no halogen make it not produce a lot of smoke and harmful halide gas when burning, which can greatly reduce the harm to personnel and environmental pollution when the fire occurs. Secondly, the existence of the shielding layer makes it have good anti-interference ability, can work normally in a complex electromagnetic environment, ensure the accuracy of signal transmission, and is suitable for some electromagnetic interference sensitive equipment connection, such as precision instruments, computer networks and other data transmission lines.

Q: What are the main applications of WYHP cables?

A: It is mainly used in places with high fire safety requirements and the need to prevent electromagnetic interference. For example, the wiring of important medical equipment in hospitals, network connections in data centers, and the wiring of control systems in smart buildings, etc., in these places, WYHP cables can ensure both security and stable operation of equipment.
