RVVP Series Screened Wires

discuss personally

Basic info

Brand	Wone
Series	RVVP

Product Detail

Executive standard

JB/T8734.5-2012

Usage

JB/T8734.5-2012 Polyvinyl chloride insulated cables and wires and cords of rated voltage up to and including 300/300V.

The maximum allowable operating temperature of the conductor

Max permissible working temperature of cable conductor for long-term operation is 70 ℃.

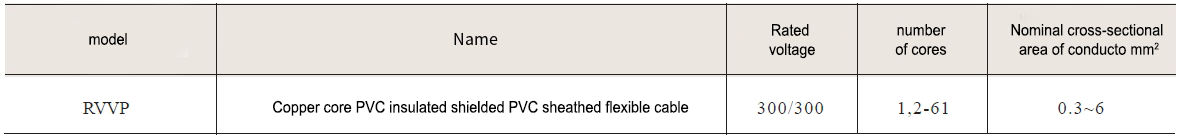

model, name, rated voltage and conductor cross-sectional area 型号.png

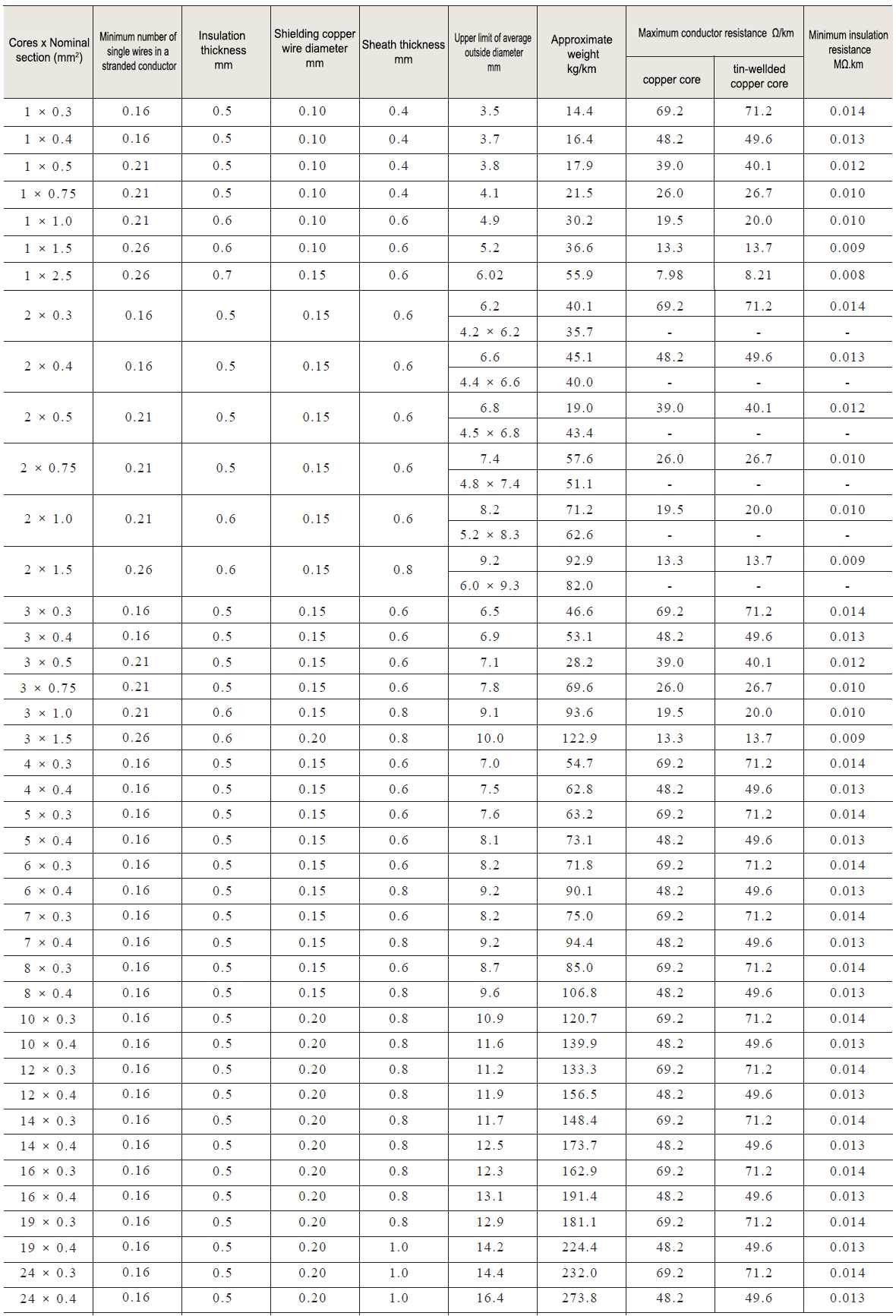

Specifications and technical parameters

Q: What kind of cable is an RVVP cable?

A: RVVP cable is a soft conductor PVC insulated wire with shielding layer and PVC sheathed cable, all known as copper core PVC insulated PVC sheathed shielded flexible cable.

Q: What are the characteristics of RVVP cables?

A: It has good flexibility and is convenient for wiring in complex environments. The shielding layer can effectively prevent the influence of external electromagnetic interference on the signal transmission in the cable, and also reduce the electromagnetic interference from the signal inside the cable to the outside world. In addition, polyvinyl chloride sheath provides a certain degree of mechanical protection and insulation properties.

Q: What are the main applications of RVVP cables?

A: It is widely used in automated control systems, such as the wiring between PLC (programmable logic controller) and various sensors and actuators. It is also commonly used in security monitoring systems to connect cameras, alarms and other equipment to ensure stable signal transmission and prevent signal distortion from external interference.
