MHY Series communication cables for coal-mining

discuss personally

Basic info

Brand	Wone
Series	MHY

Product Detail

Application

it’s suitable for the use of tele-single communication in coal-mining wells

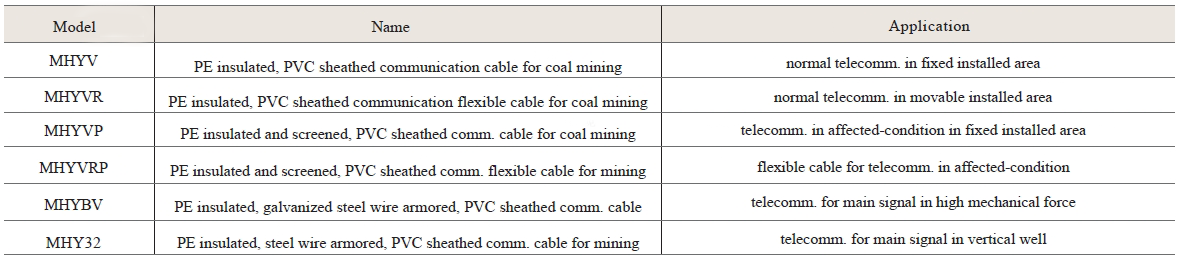

Model and name

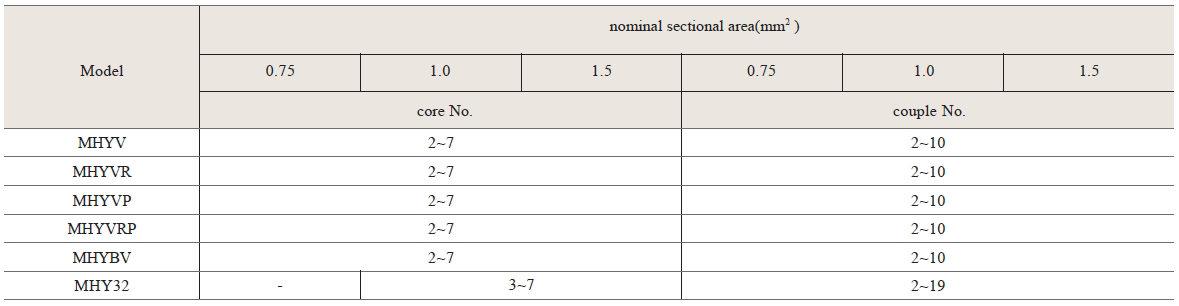

Specification

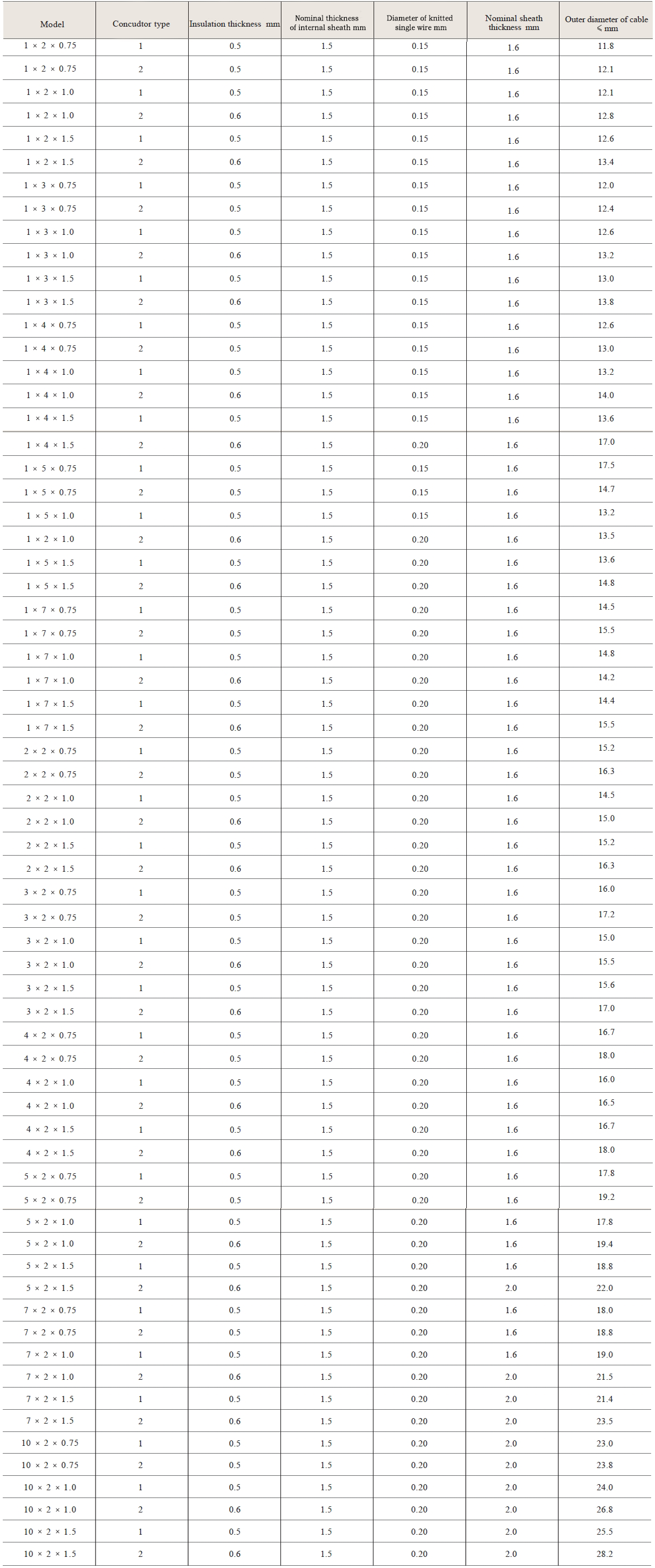

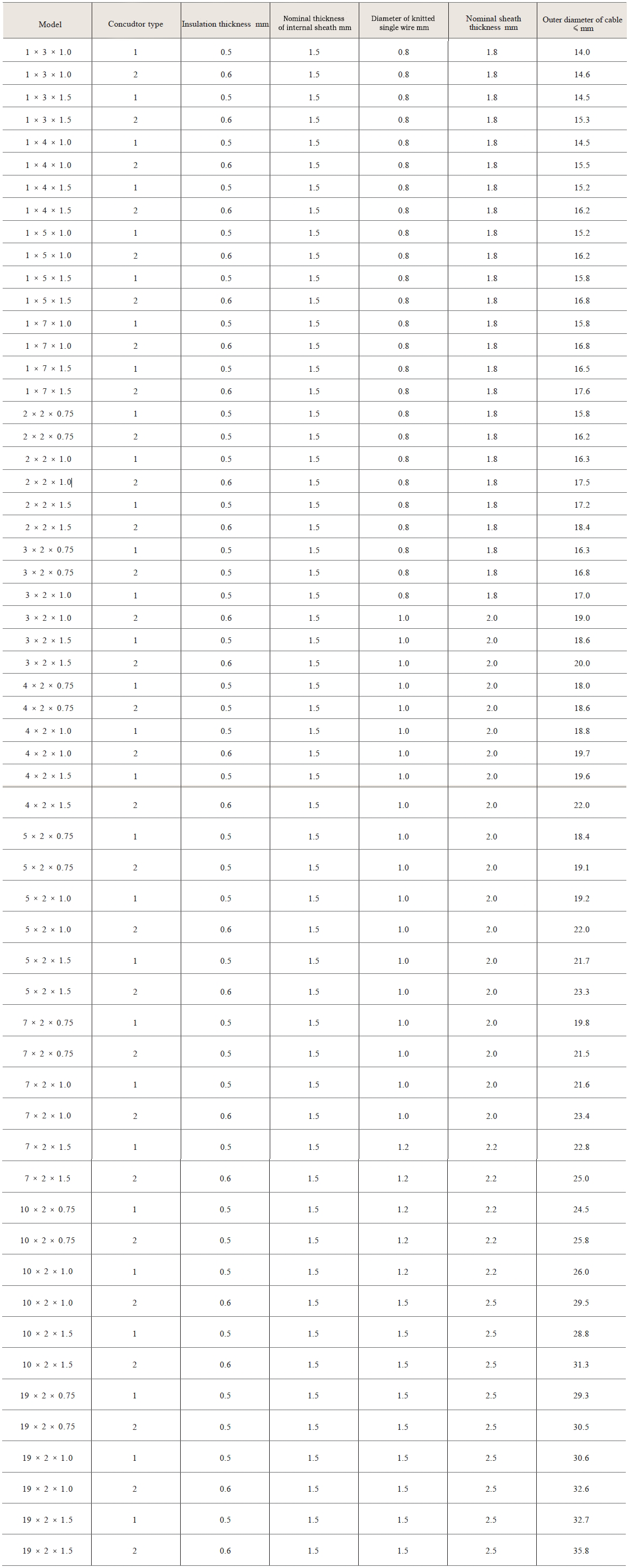

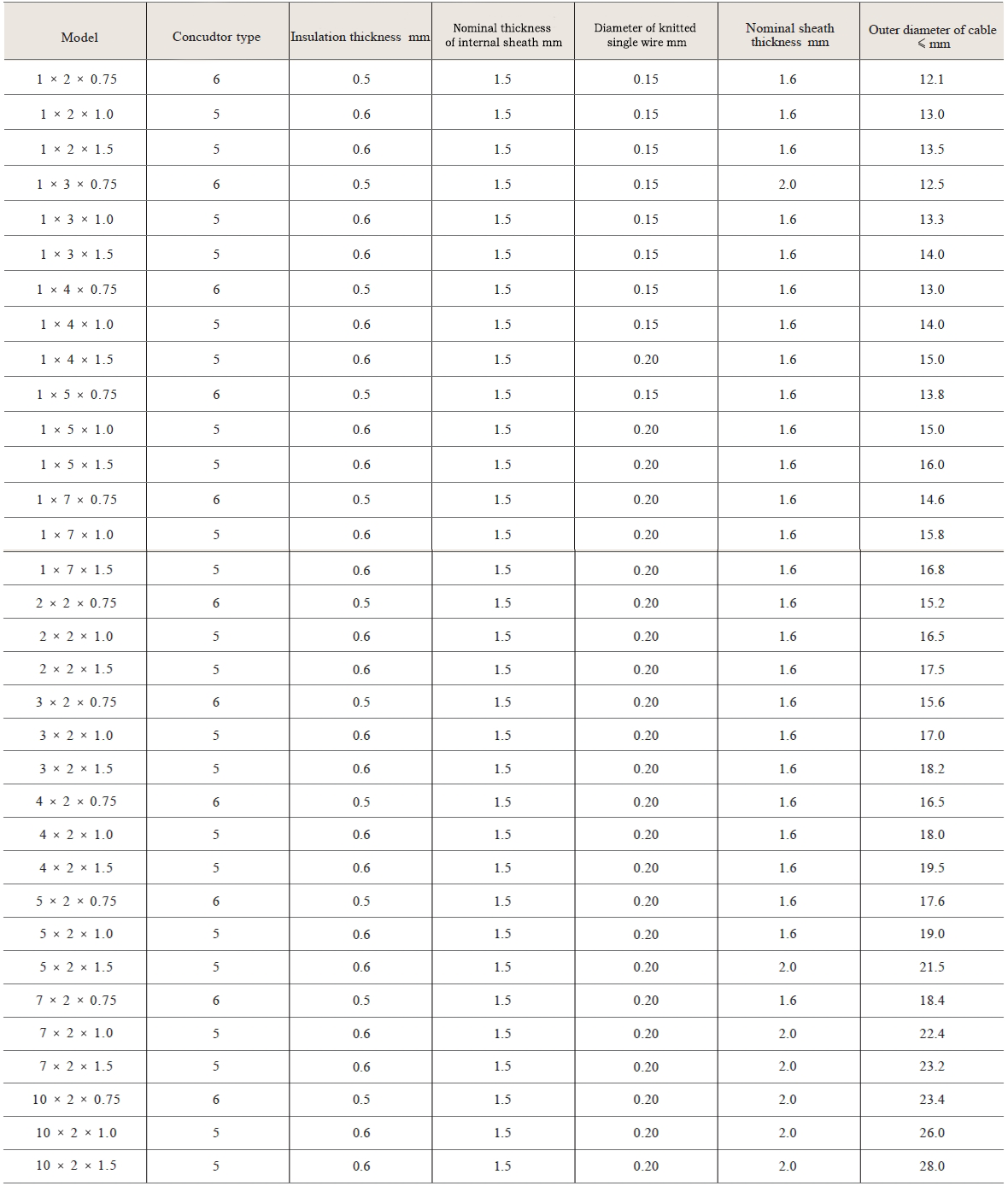

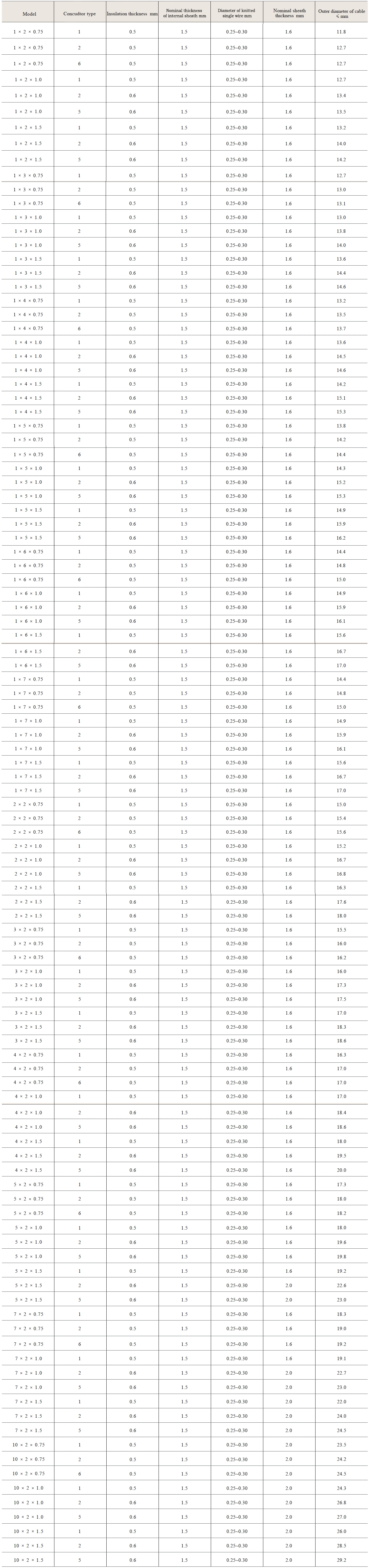

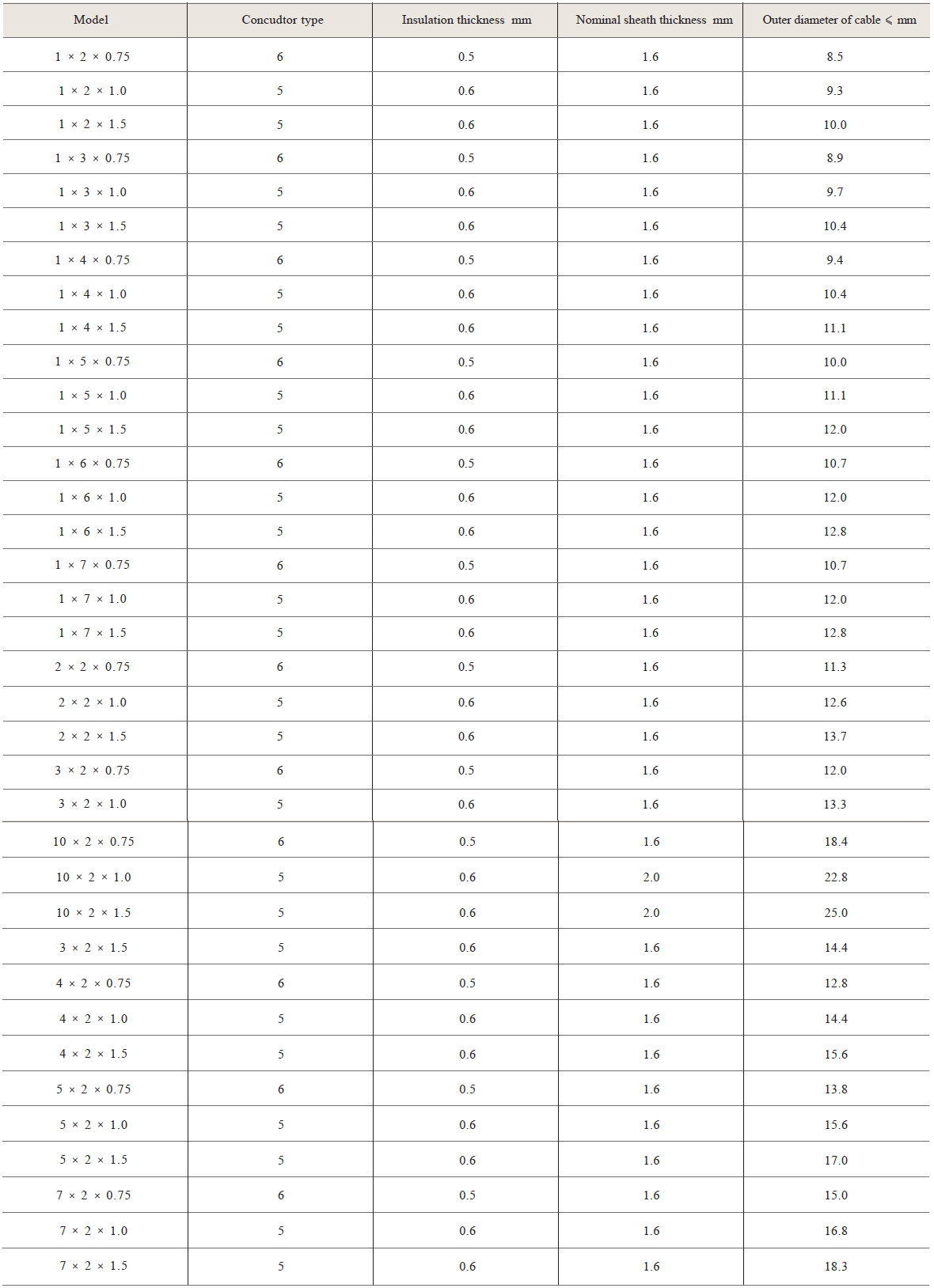

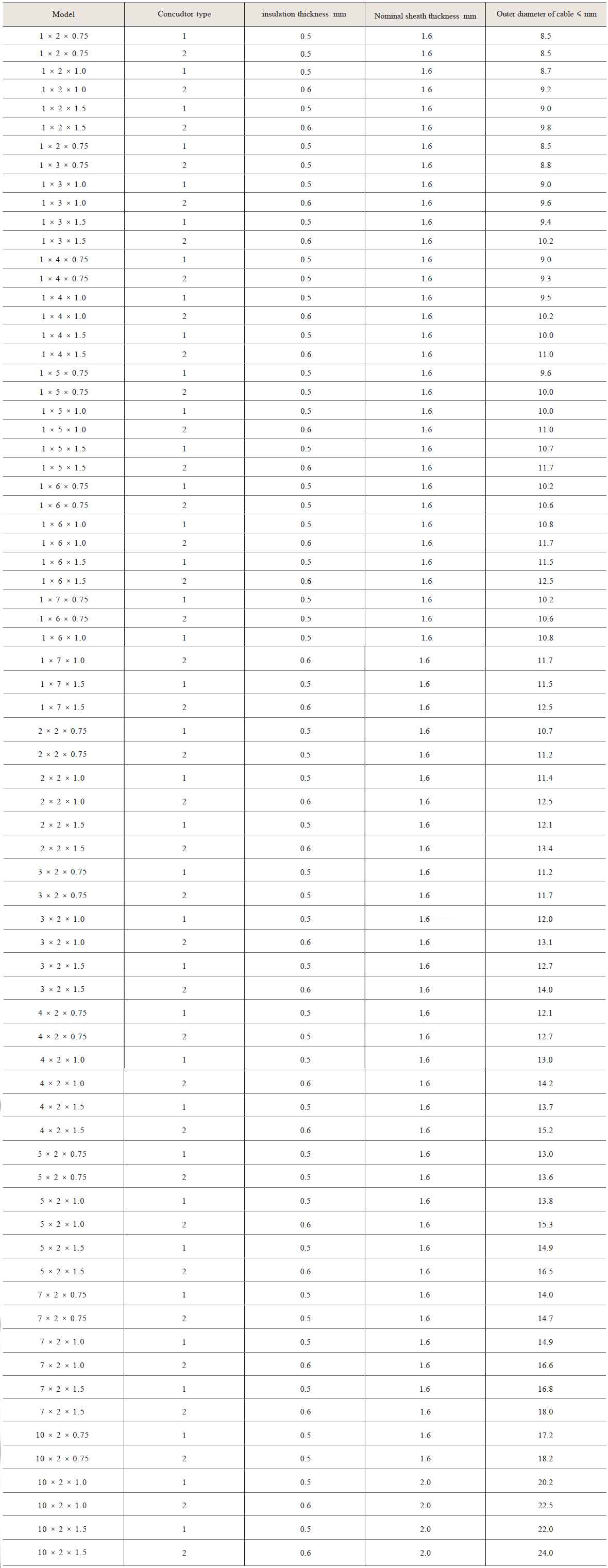

Structure size

MHYV type PE insulated,PVC sheathed comunication cable for coal-mining

MHYVR type PE insulated, PVC sheathed communication flexible cable for coal-mining

MHYVP type PE insulated and screened, PVC sheathed comm. cable for coal-mining

MHYVRP type PE insulated and screened, PVC sheathed comm. flexible cable for coal-mining

MHYBV type PE insulated, galvanized steel wire armored, PVC sheathed comm. Cable

MHY32 type PE insulated, steel wire armored, PVC sheathed comm. cable for coal-mining

Technical parameter

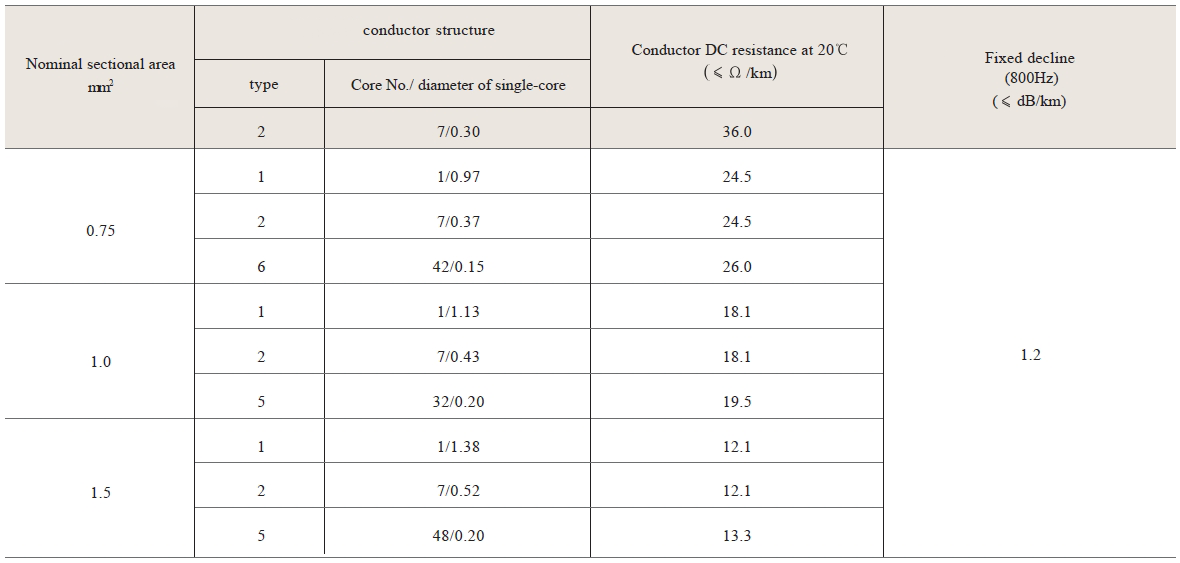

a. Conductor resistance DC and fixed decline 技术参数1.png

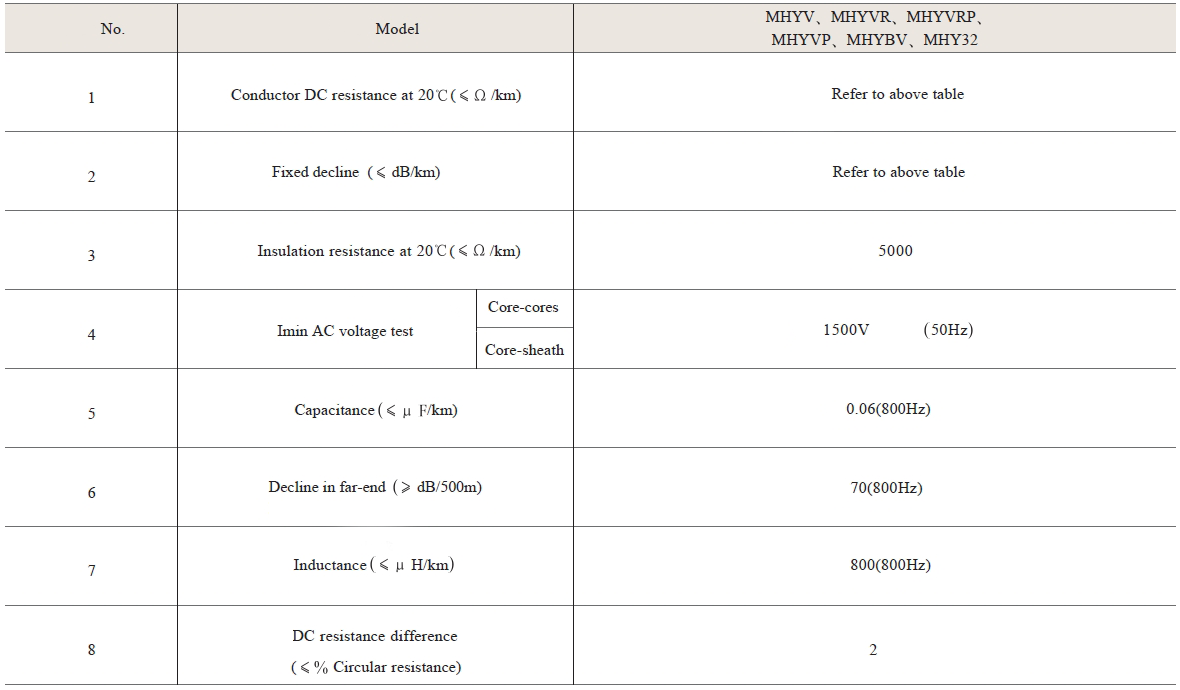

b. other technical parameter


c. fire-resistant characteristics

It complies with fire-proof feature based on MT386-1995

Q: What is mhy cable?

A: mhy cable is a mining communication cable. It is specially used for communication and transmission work in mine environment.

Q: What are the characteristics of mhy cable?

A: It has good anti-interference ability and can transmit signals stably in the complex electromagnetic environment of the mine. Its insulation performance is good, can adapt to the more humid environment in the mine, prevent leakage and other situations. Moreover, the structural design of mhy cable is also reasonable, which is convenient to lay and can withstand external forces such as tension in the mine to a certain extent.
