JSZY18-24RJ Voltage Transformer

discuss personally

Model

JSZY18-24RJ-22/√3kV

JSZY18-24RJ-20/√3kV

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	JSZY18-24RJ Voltage Transformer
Rated frequency	50/60Hz
Primary voltage	22/√3kV
Secondary voltage	100/√3V
Series	JSZY

Product Detail

Product Overview

JSZY18-24RJ voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, The product adds elbow type plug part, improving the filth and moisture resistance, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 24 kV.

Key Features

Strong Electromagnetic Interference Resistance：Featuring a unique shielding structure and winding design, it effectively withstands interference from complex external electromagnetic environments. Even in high-voltage substations with severe EMI, it accurately measures voltage and ensures the purity and accuracy of output signals.
High-precision Composite Winding Design：The secondary side adopts high-precision composite windings, enabling simultaneous output of voltage signals with multiple accuracy classes. This meets the differentiated precision requirements of metering, measurement, protection, and other functional modules, avoids errors caused by signal conversion, and enhances overall system performance.

Main technical parameter

Rated primary voltage：20/√3 kV or 22/√3 kV
Rated secondary voltage：100/√3, 100/√3/100/√3 100/√3/220
Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
Burden power factor: cosΦ=0.8(lagging)
Standards: IEC60044-2.2003 or IEC61869-1&3

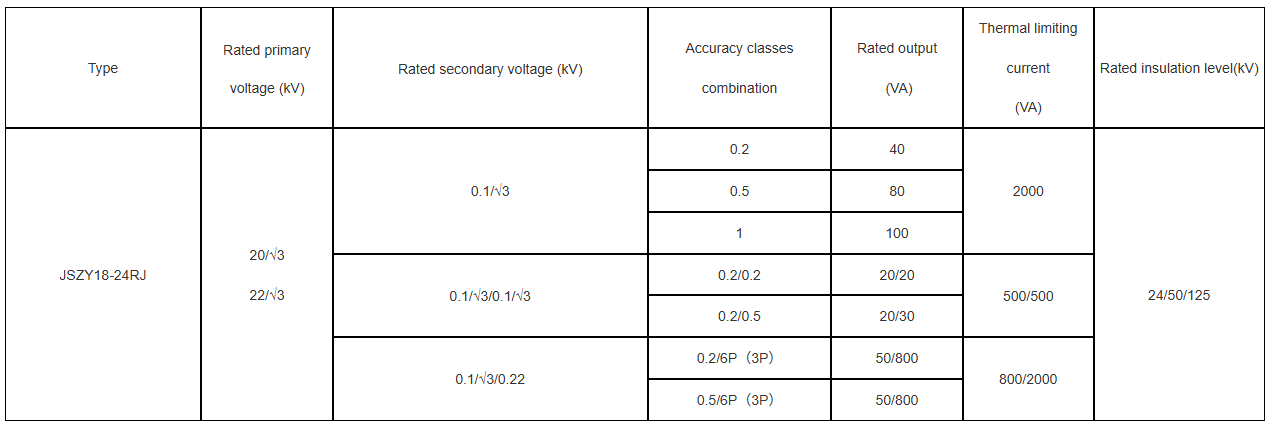

Other technical parameters pls see as follow:

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

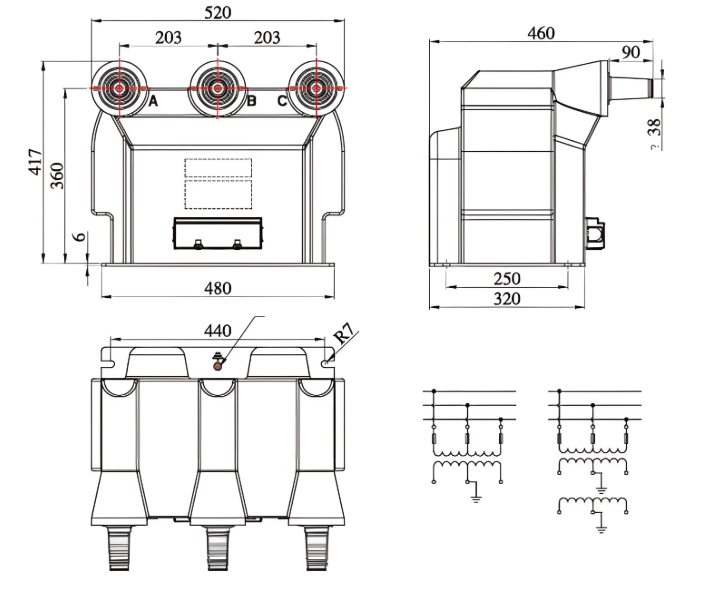

Outline drawing
