JL Series Steel-cored Aluminum Strand

discuss personally

Basic info

Brand	Wone
Series	JL

Product Detail

Application

It’s suitable for overhead power transmission.

Standard

IEC 61089:1991 GB/T 1179-2008

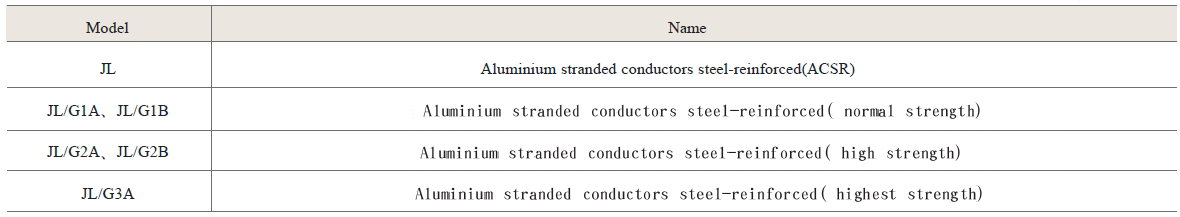

Model and name

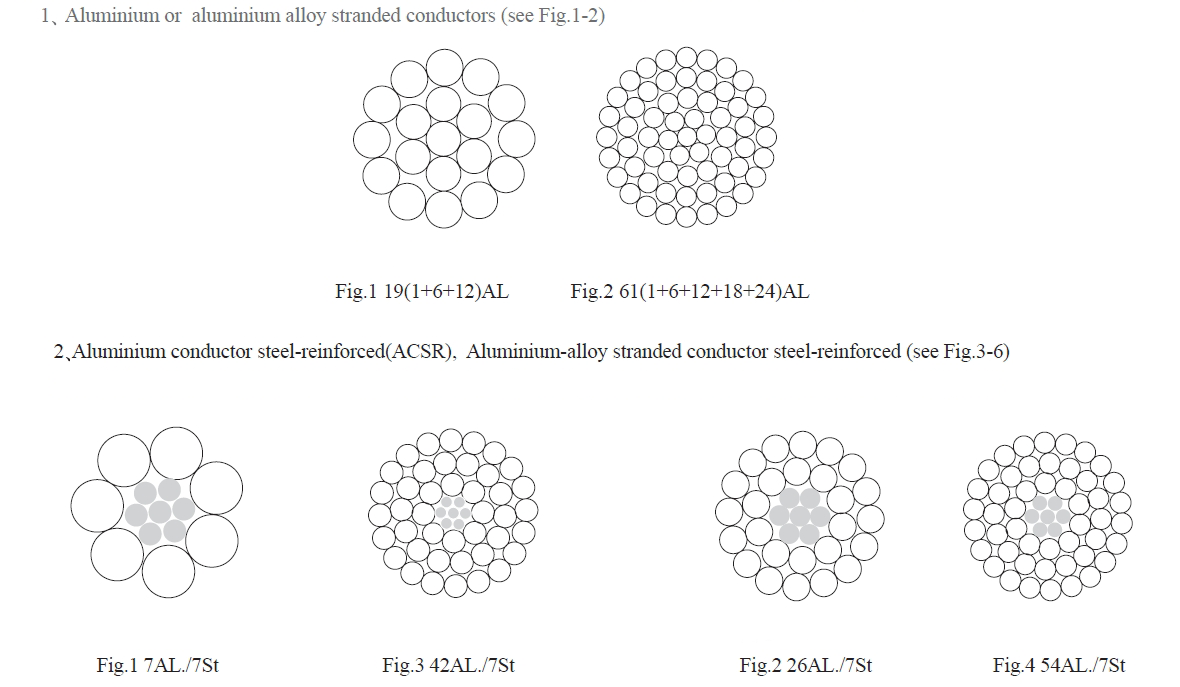

Structure diagram


Structure size and characteristics

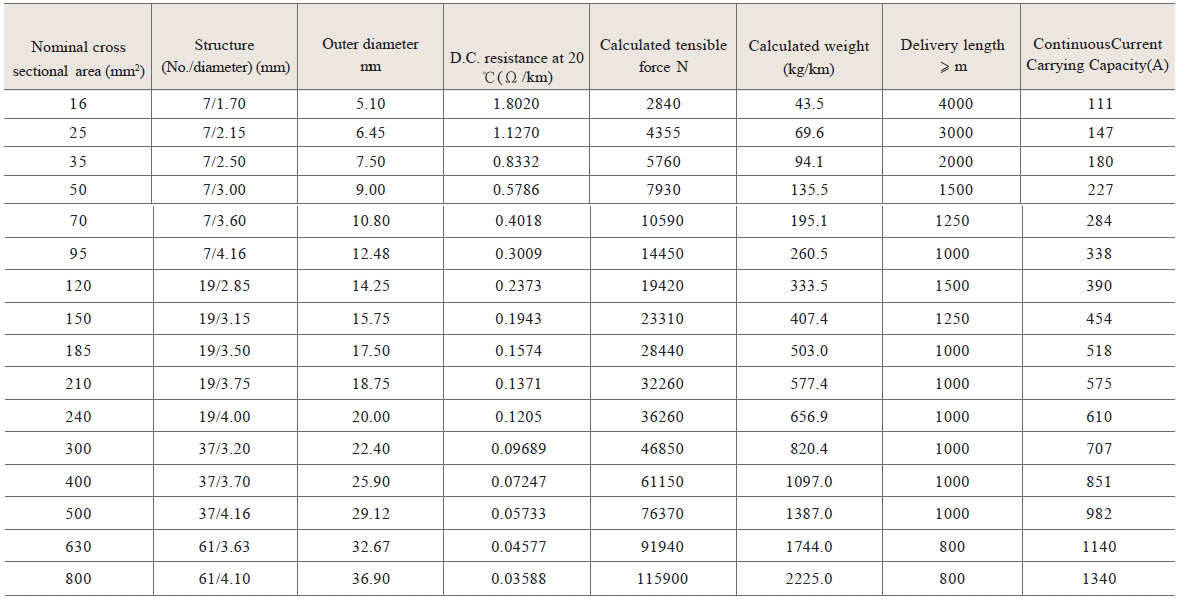

Aluminum, Aluminum-alloy stranded conductors(GB/T1179-2008)JL JL/G model

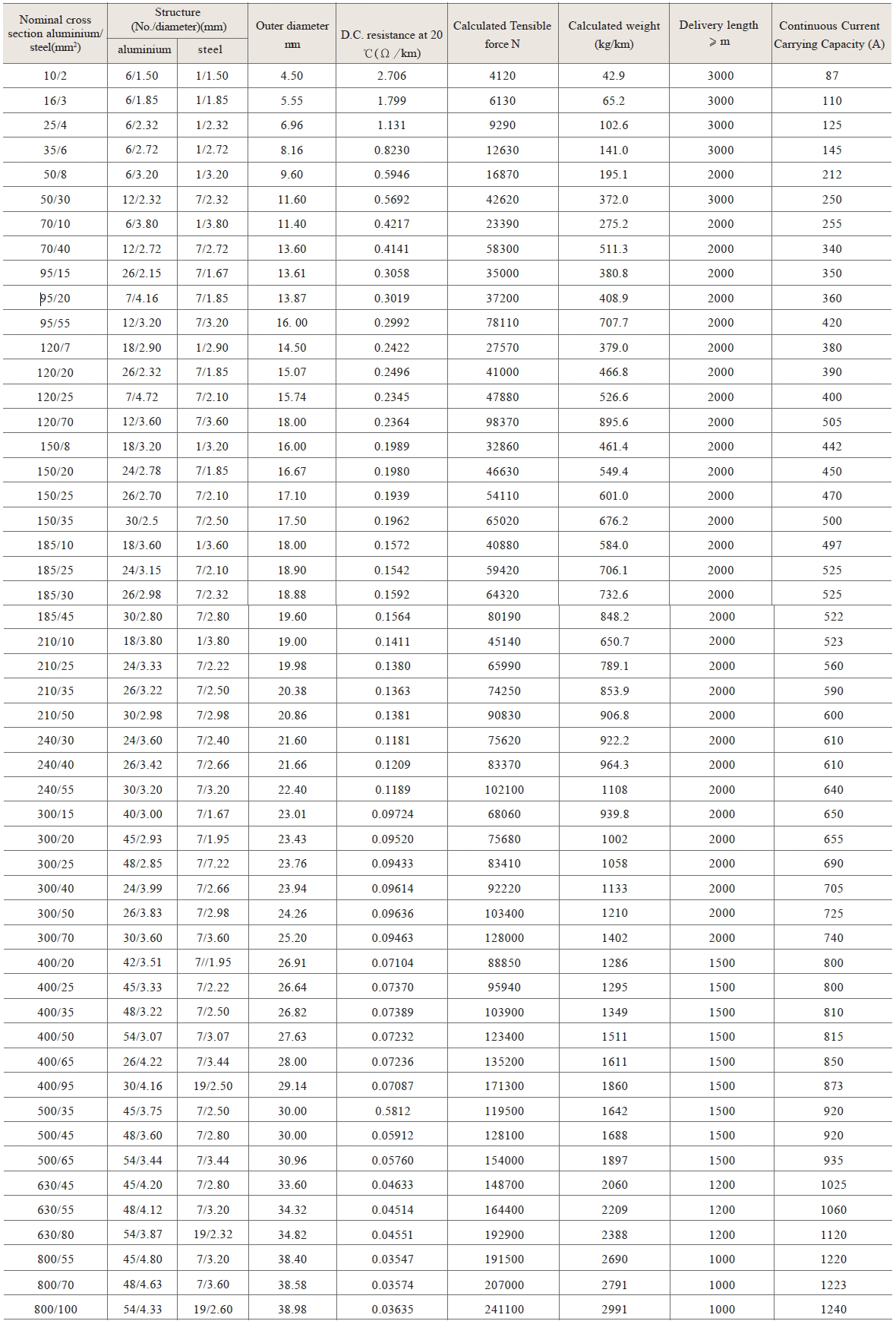

Aluminum, Aluminum-alloy stranded conductors steel reinforced(QJ/ZL02.29-95) JL JL/Gmodel

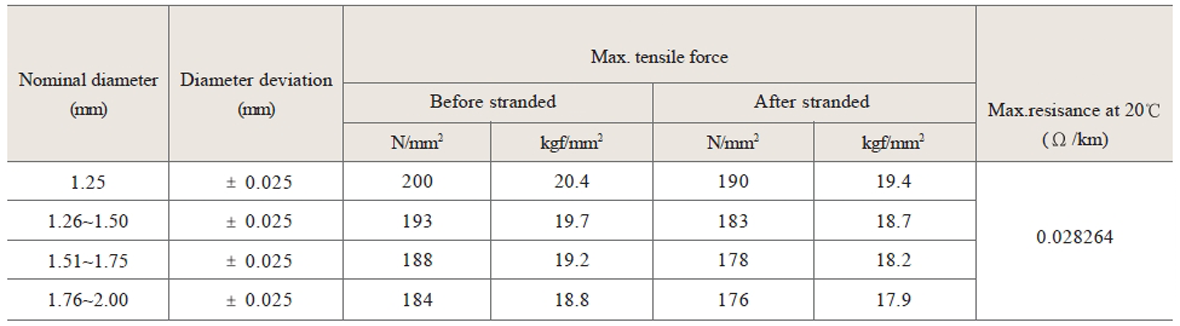

The mechanical characteristics of circular Aluminum wire 机械性能.png +

Q: What kind of cable is JL cable?

A: JL cable usually refers to aluminum stranded cable.

Q: What are the characteristics of JL cable?

A: The main feature of JL cable is that it uses aluminum as a conductor material. Aluminum has good electrical conductivity, abundant resources and relatively low cost. It is light in weight and easy to transport and erect, which is an advantage in some long-distance overhead line laying. However, the mechanical strength of aluminum is slightly lower than that of copper and other metals, and special reinforcement measures may be required in the environment of large-span erection or vulnerable to external impact.

Q: Where is JL cable mainly used?

A: JL cable is mainly used in some overhead power transmission scenarios that are more sensitive to cost and require cable weight. For example, in some low-voltage power transmission lines in rural or suburban areas, due to the relatively long transmission distance and high cost requirements, JL cables can play their advantages and provide power transmission services for vast areas.
