JDZV8-12R epoxy resin casting voltage transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	JDZV8-12R epoxy resin casting voltage transformer
Rated frequency	50/60Hz
Primary voltage	11KV
Secondary voltage	110V
Series	JDZV

Product Detail

Product Overview

JDZV8-12R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor for measuring current, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

The product has the feature of high reliability, low magnetism of core, large creep distance of external insulation and maintenance free etc.

Key Features

Compact and Lightweight Design：With a highly compact structure, its volume is reduced by 40% and weight by 50% compared to similar products. This enables easy installation in space-constrained scenarios like switchgear and ring main units, saving both equipment layout space and installation costs.
High Insulation Strength and Safety：The epoxy resin insulation system withstands 12kV rated voltage and 75kV lightning impulse voltage, with partial discharge ≤10pC. It effectively prevents phase-to-phase short circuits and ground breakdown. The built-in overvoltage protection fuse quickly cuts off the circuit during faults, ensuring system safety.
Wide Temperature Range Adaptability：Operating within -40℃ to +70℃, it suits extremely cold or high-temperature regions. The epoxy resin material features excellent thermal stability, eliminating long-term aging or cracking risks, with a service life exceeding 30 years.

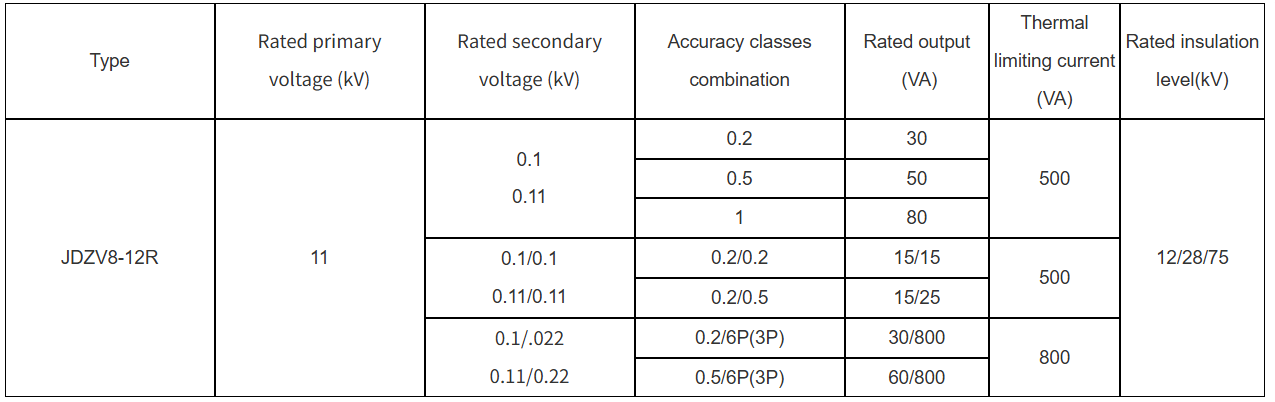

Main technical parameter

Highest voltage for equipment: 12kV
Rated primary voltage: 11kV
Rated secondary voltage: 100/220V or 110/220V or 100V or 110V.
Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
