• Gas-Insulated Switchgear up to 40.5kV-630A-25kA
Gas-Insulated Switchgear up to 40.5kV-630A-25kA
discuss personally
Model
FLUSARC-40.5
Basic info
Brand Schneider
Model NO. FLUSARC Gas-Insulated Switchgear up to 40.5kV-630A-25kA
Rated voltage 40.5kV
Series FLUSARC
Product Detail

Overview

FLUSARC - Safe· Reliable· Environmental-friendly
FLUSARC, a type of the gas-insulated switchgear of Schneider Electric, features quite high safety and reliability, which can ensure the continuous and stable operation of the power system and the personal safety of operators. Meanwhile, the equipment also has a user-friendly operation interface to facilitate operation of field operators. FLUSARC completely conforms to the latest environmental protection requirements.

FLUSARC - Simple· Innovative· Cost-Effective
FLUSARC is fully applicable to industrial distribution network, new energy, mining, metallurgy, petrochemical industry, fuel and gas, railway power supply, container base and shipbuilding industry.

FLUSARC is manufactured with modern and innovative design concept of switchgear, and there are several schemes available for selection. It is a gasinsulated switchgear with rated voltage of 40.5 kV, rated current of 630 A and rated breaking current of 25 kA.

FLUSARC’s design is compact and modular, with great flexibility and maintenancefree during its service life. It is also very suitable for places with limited space or where old switches are upgraded by using existing foundations.

Fluarc is a kind of cost-effective switchgear, which can be spliced from the front at the time of installation, expansion and dismantling. Due to the innovative solid bus connection, any gas treatment operation is not necessarily required in the field.

FLUSARC has been tested according to IEC standards and Chinese GB standards.

User benefits

  • The switchgear cabinet is expanded, so gas treatment operation is not necessarily required in the field.

  • User-friendly interface

  • Reliable operation and operator safety guaranteed

  • Low cost

  • Environmental-friendly and easy to recycle

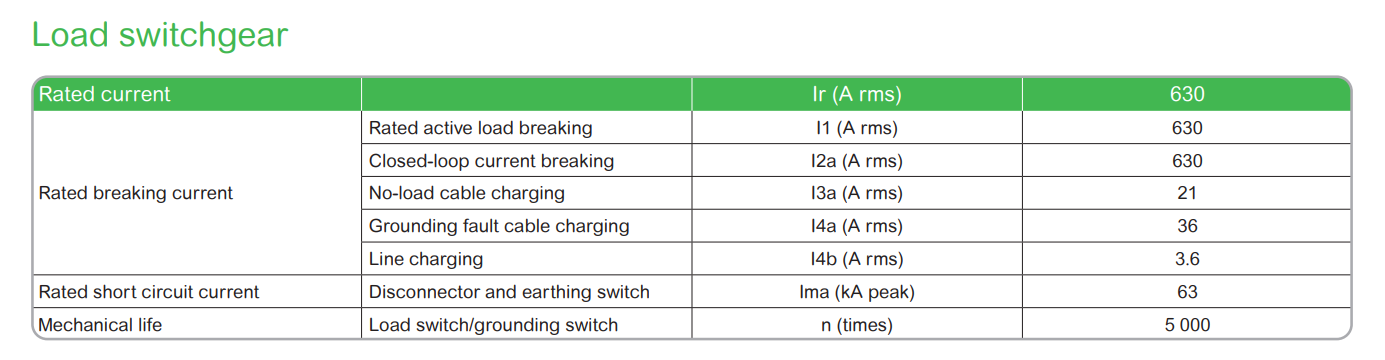

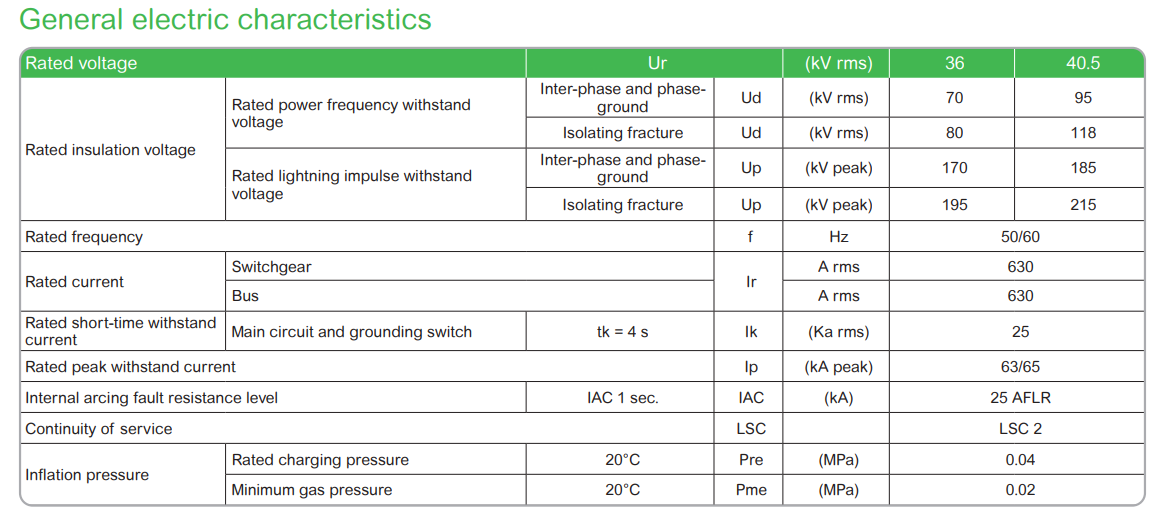

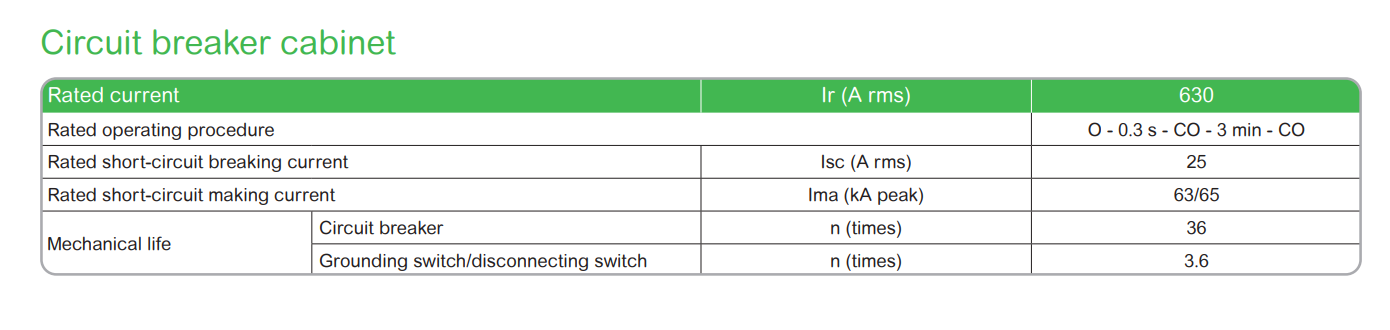

Operating conditions and technical characteristics

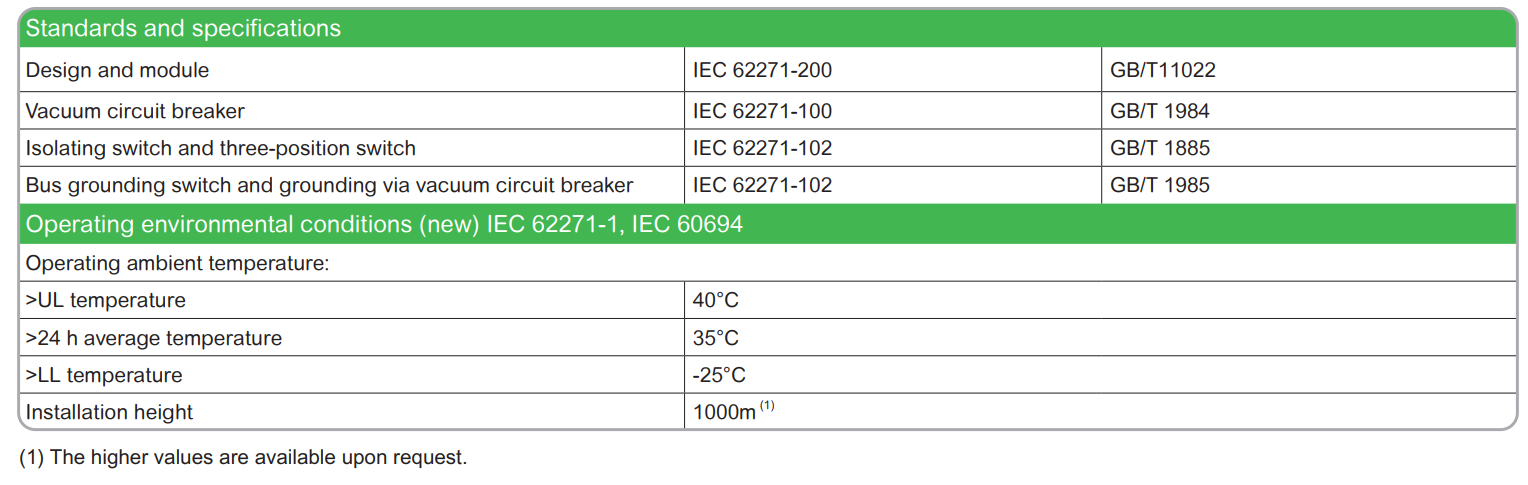

Surrounding environment and operating conditions
FLUSARC series switchgear is recommended to operate under normal operating conditions in accordance with IEC62271, GB/T 11022 and GB/T 3906.

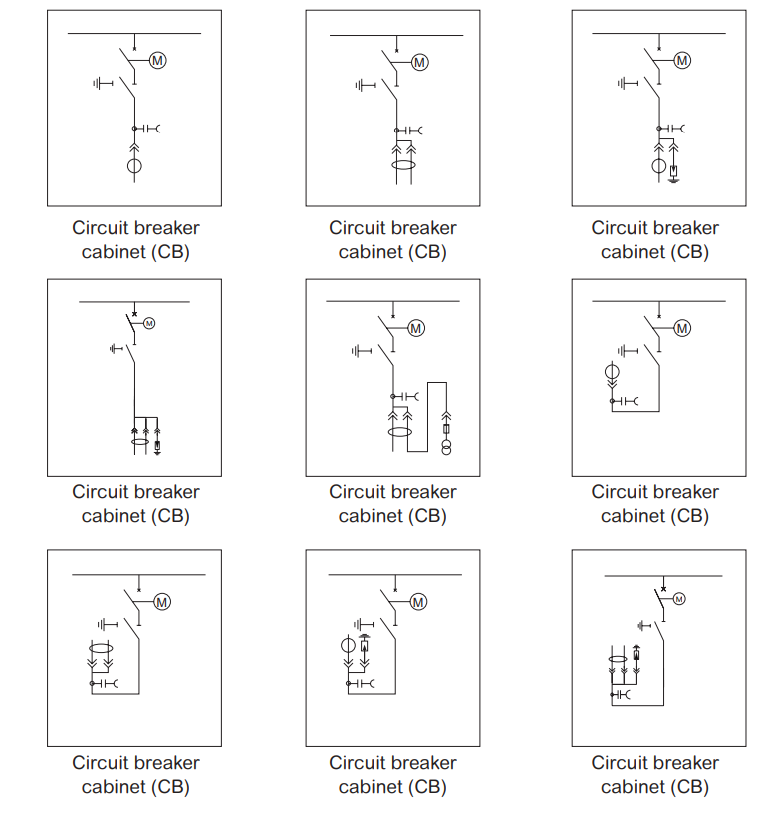

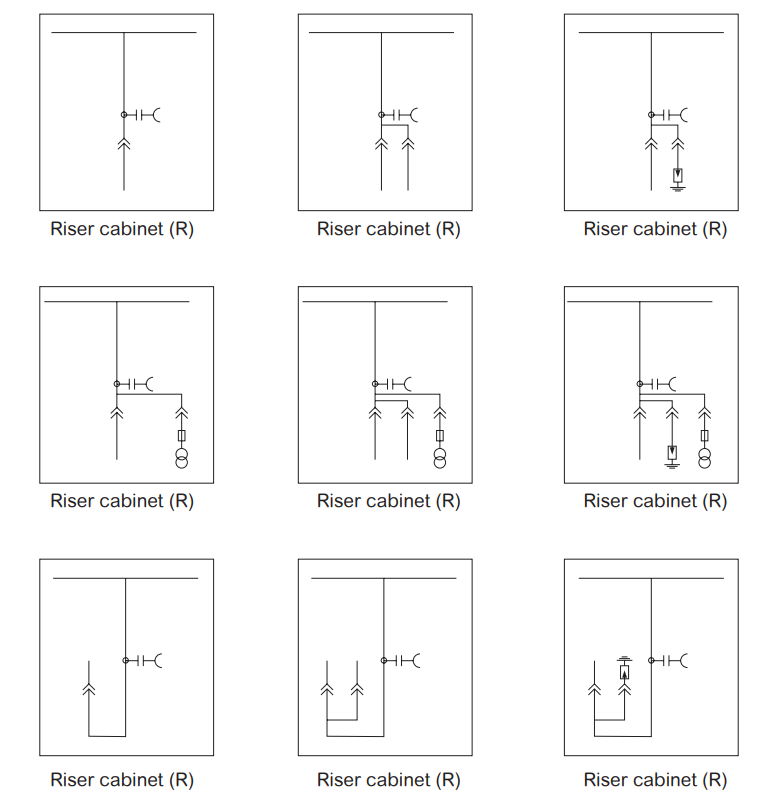

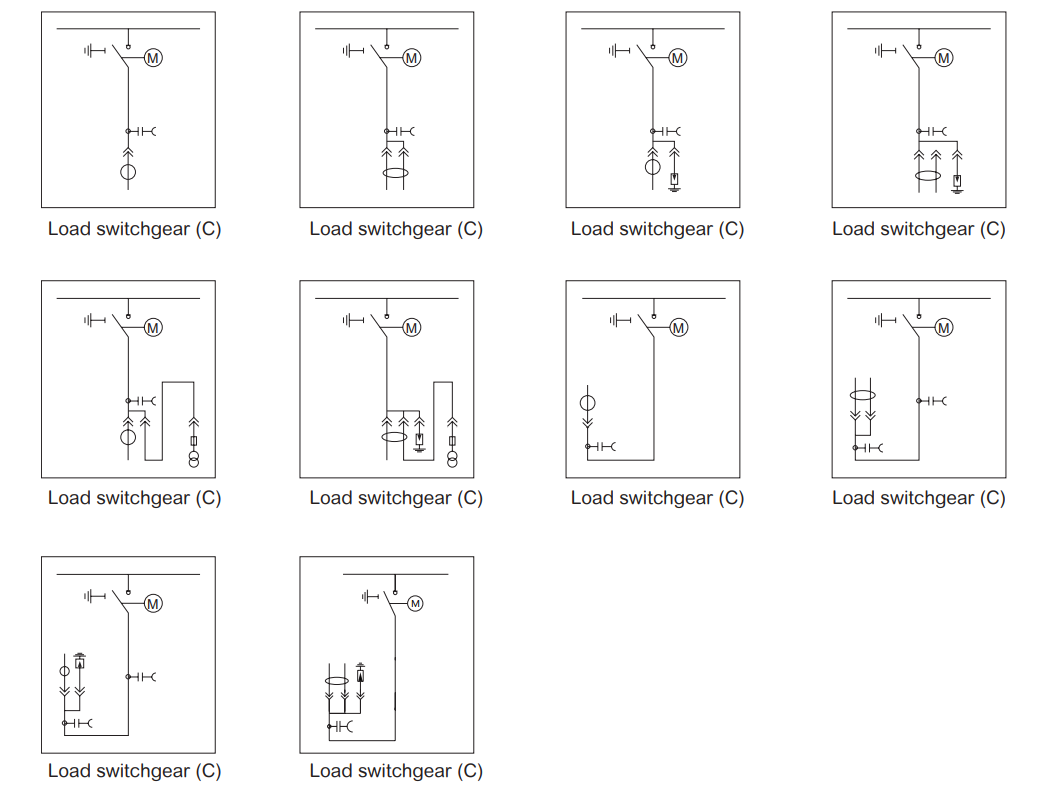

FLUSARC main wiring scheme



Standard scheme

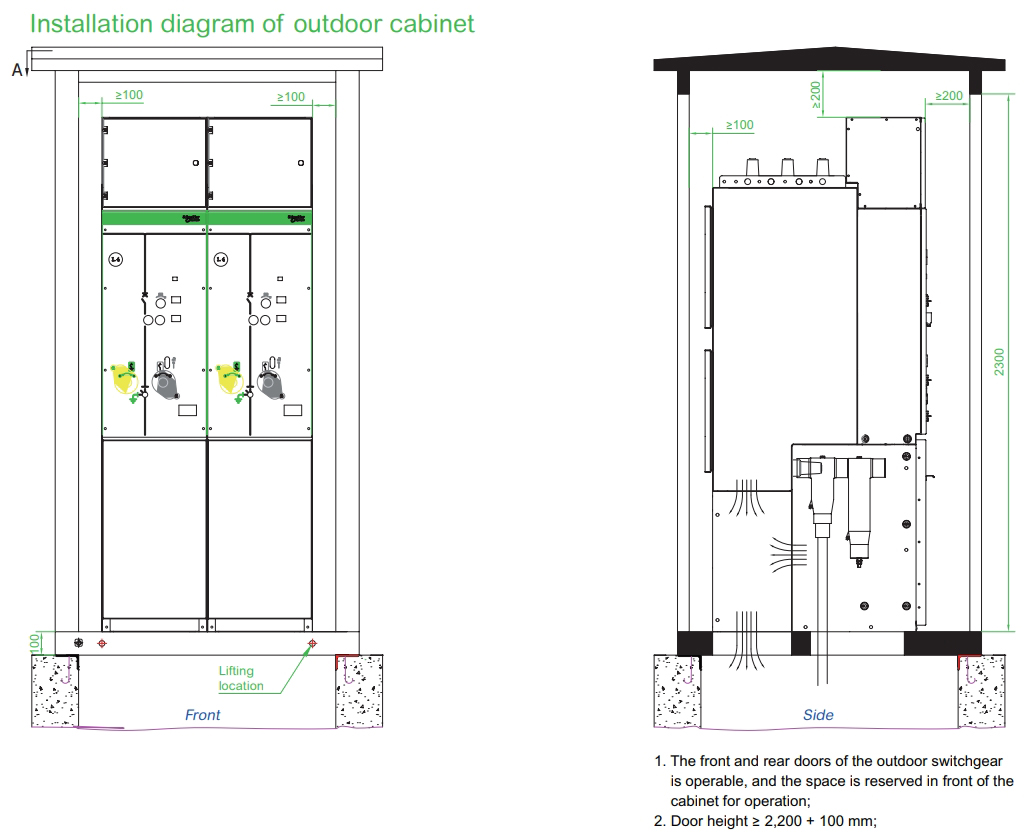

Application example of FLUSARC

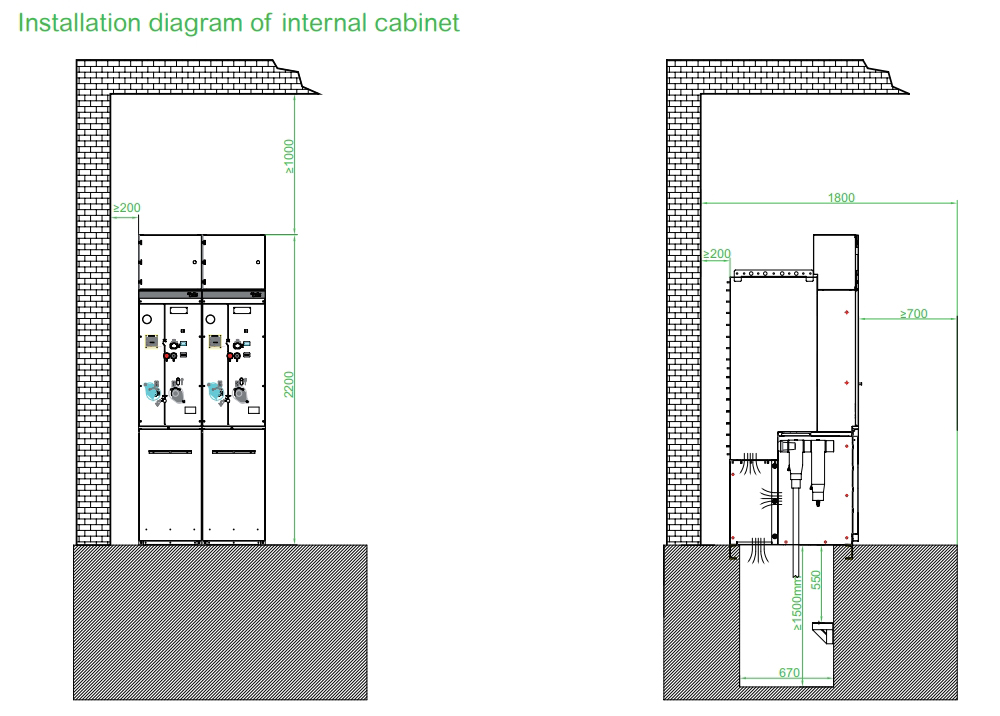

Spatial distribution map of civil engineering
