What is Integrating Instrument？
Edwiin
05/05/2025
Definition and Classification of Integrating Instruments
Definition
Definition
An integrating instrument is designed to measure the cumulative energy supplied by an electrical circuit over a specific period. It focuses on the total amount of energy consumed, regardless of the rate at which that consumption occurs. A prime example of an integrating instrument is the watt - hour meter, which directly quantifies energy in watt - hours. This functionality makes integrating instruments invaluable for accurately determining the overall energy usage in various electrical systems, whether in residential, commercial, or industrial settings.
Types of Integrating Instruments
Integrating instruments can be primarily categorized into two distinct types: the clock meter and the motor meter. Each type employs unique mechanisms to achieve the integration of electrical energy over time.
Clock Meter
The clock meter features a specialized clock mechanism equipped with two pendulums and two sets of coils. One coil is energized by the electrical current flowing through the circuit, while the other is powered by the voltage across it. The current coil is firmly fixed in place, whereas the voltage coil is attached to the pendulum. When the electrical circuit is active, the magnetic forces generated by the current and voltage coils interact. These forces act upon the pendulum, causing it to move. The magnetic pull from the fixed current coil works to draw the pendulum back, creating a dynamic motion that is directly related to the electrical parameters of the circuit. This motion, in turn, is translated into a measurement of the cumulative energy consumed over time, with the clock mechanism keeping track of the passage of time and correlating it with the electrical energy input.
Clock Meter (Continued)
The magnetic force generated by the coils exerts a pull on the pendulum, causing it to swing back towards the fixed current coils. This action initiates an interaction between the two pendulums. As one pendulum moves forward, the other experiences a retarding effect. The disparity in the swinging motions of these pendulums serves as an indicator of the electrical energy consumed by the circuit. By precisely measuring and analyzing these differences in pendulum movement over time, the clock meter can accurately calculate and display the cumulative energy.
Motor Meter
The motor meter is widely regarded as a reliable and efficient device for measuring electrical energy, making it a preferred choice in numerous applications. Structurally, it comprises three essential components, each playing a crucial role in its operation:
Operating System
The operating system of the motor meter is designed to generate torque. This torque is directly proportional to the electrical current flowing through the circuit being measured. As the current varies, so does the torque produced by the operating system. This torque then acts as the driving force, setting the moving system of the meter in motion. In essence, the operating system converts the electrical energy from the current into mechanical rotational energy, initiating the measurement process.
Braking System
The braking system serves a vital function by inducing a braking torque within the meter. This braking torque is directly proportional to the rotational speed of the moving system. The mechanism behind this involves the generation of eddy currents. When the moving disc, positioned within the magnetic field of a permanent magnet, rotates, these eddy currents are induced. The interaction between the eddy currents and the magnetic field creates the braking torque. This torque acts to counterbalance the driving torque from the operating system, ensuring that the meter operates at a stable, consistent speed. Without an effective braking system, the meter's moving parts would accelerate uncontrollably, leading to inaccurate measurements.
Registering System

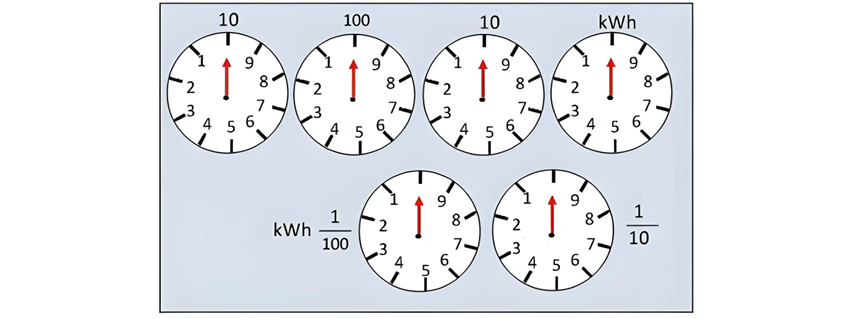

The registering system is responsible for translating the rotational motion of the moving system into a readable measurement of energy consumption. The moving system is mounted on a worm - cut spindle. A series of wheels, known as the train of wheels, are connected to the worm - cut spindle via a pinion. As the spindle rotates due to the driving torque from the operating system, the wheels also turn. The spindle is equipped with hands that move across dials, which are calibrated to display energy consumption in various units, such as tens, hundreds, tenths, and so on. This visual representation allows users to easily monitor and record the amount of electrical energy consumed over a given period.
In comparison to clock meters, motor meters offer a more cost - effective solution. The intricate design and manufacturing requirements of clock meters contribute to their higher expense. As a result, motor meters have become the instrument of choice in industrial settings, where large - scale and continuous energy measurement is required. Their affordability, combined with their reliable and accurate performance, makes them well - suited for the demanding environment of industrial applications.
Clock Meter Operation and Motor Meter Details
Clock Meter
The magnetic forces generated by the coils exert a pull on the pendulum, compelling it to swing back towards the fixed coils. This action triggers an interaction between the two pendulums. As one pendulum moves forward, the other experiences retardation. The variations in the swinging patterns of these pendulums serve as an indicator of the electrical energy within the circuit. By precisely measuring these discrepancies in pendulum motion, the clock meter can accurately determine the cumulative energy consumed over a specific period.
Motor Meter
The motor meter is a widely - utilized instrument for energy measurement, owing to its reliability and efficiency. It is composed of three integral components, each playing a distinct and crucial role in its functionality:
Operating System
The operating system of the motor meter is engineered to generate torque that is directly proportional to the electrical current flowing through the measured circuit. This torque acts as the driving force, setting the moving system of the meter in motion. As the current fluctuates, the torque produced by the operating system adjusts accordingly, ensuring that the meter's movement accurately reflects the electrical energy input. In essence, the operating system converts electrical energy from the current into mechanical rotational energy, initiating the energy - measurement process.
Braking System
The braking system serves a vital function by inducing a braking torque that is directly related to the rotational speed of the moving system. This braking torque is generated through the induction of eddy currents. When the moving disc, situated within the magnetic field of a permanent magnet, rotates, eddy currents are induced. The interaction between these eddy currents and the magnetic field gives rise to the braking torque. This torque acts as a counterforce to the driving torque from the operating system, maintaining the meter at a steady rotational speed. Without an effective braking system, the moving parts of the meter would accelerate uncontrollably, leading to inaccurate energy measurements.
Registering System
The registering system is responsible for translating the rotational motion of the moving system into a quantifiable and readable display of energy consumption. The moving system is mounted on a worm - cut spindle. A series of wheels, known as the train of wheels, are connected to the worm - cut spindle via a pinion mechanism. As the spindle rotates due to the driving torque from the operating system, the wheels turn in tandem. The spindle is equipped with indicator hands that sweep across calibrated dials, which are marked to display energy consumption in various units, such as tens, hundreds, tenths, and so forth. This visual representation enables users to easily monitor and record the amount of electrical energy consumed over time.
Given the relatively high cost associated with clock meters, primarily due to their complex design and manufacturing requirements, motor meters have become the instrument of choice in industrial settings. Their cost - effectiveness, combined with their ability to provide accurate and consistent energy measurements, makes them well - suited for the demanding and large - scale energy - monitoring needs of industries.
