Solar Power Plants: Types, Components and Working Principles

Solar power plants are systems that use solar energy to generate electricity. They can be classified into two main types: photovoltaic (PV) power plants and concentrated solar power (CSP) plants. Photovoltaic power plants convert sunlight directly into electricity using solar cells, while concentrated solar power plants use mirrors or lenses to concentrate sunlight and heat a fluid that drives a turbine or engine. In this article, we will explain the components, layout, and operation of both types of solar power plants, as well as their advantages and disadvantages.

What is a Photovoltaic Power Plant?

A photovoltaic power plant is a large-scale PV system that is connected to the grid and designed to produce bulk electrical power from solar radiation. A photovoltaic power plant consists of several components, such as:

• Solar modules: These are the basic units of a PV system. They are composed of solar cells that convert light into electricity. Solar cells are usually made of silicon, which is a semiconductor material that can absorb photons and release electrons. The electrons flow through the circuit and create an electric current. Solar modules can be arranged in different configurations, such as series, parallel, or series-parallel, depending on the voltage and current requirements of the system.

• Mounting structures: These are the frames or racks that support and orient the solar modules. They can be fixed or adjustable, depending on the location and climate of the site. Fixed mounting structures are cheaper and simpler, but they do not track the sun’s movement and may reduce the output of the system. Adjustable mounting structures can tilt or rotate the solar modules to follow the sun’s position and optimize energy production. They can be manual or automatic, depending on the degree of control and accuracy needed.

• Inverters: These are devices that convert the direct current (DC) produced by the solar modules into alternating current (AC) that can be fed into the grid or used by AC loads.



• Inverters can be classified into two types: central inverters and micro-inverters. Central inverters are large units that connect several solar modules or arrays and provide a single AC output. Micro-inverters are small units that connect to each solar module or panel and provide individual AC outputs. Central inverters are more cost-effective and efficient for large-scale systems, while micro-inverters are more flexible and reliable for small-scale systems.

• Charge controllers: These are devices that regulate the voltage and current of the solar modules or arrays to prevent overcharging or over-discharging of the batteries. Charge controllers can be classified into two types: pulse width modulation (PWM) controllers and maximum power point tracking (MPPT) controllers. PWM controllers are simpler and cheaper, but they waste some energy by switching on and off the charging current. MPPT controllers are more complex and expensive, but they optimize the energy output by adjusting the voltage and current to match the maximum power point of the solar modules or arrays.

• Batteries: These are devices that store excess electricity generated by the solar modules or arrays for later use when there is no sunlight or when the grid is down. Batteries can be classified into two types: lead-acid batteries and lithium-ion batteries. Lead-acid batteries are cheaper and more widely used, but they have a lower energy density, shorter lifespan, and require more maintenance. Lithium-ion batteries are more expensive and less common, but they have higher energy density, longer lifespan, and require less maintenance.

• Switches: These are devices that connect or disconnect different parts of the system, such as solar modules, inverters, batteries, loads, or grids. Switches can be manual or automatic, depending on the level of safety and control needed. Manual switches require human intervention to operate them, while automatic switches operate based on predefined conditions or signals.

• Meters: These are devices that measure and display various parameters of the system, such as voltage, current, power, energy, temperature, or irradiance. Meters can be analog or digital, depending on the type of display and accuracy needed. Analog meters use needles or dials to show values, while digital meters use numbers or graphs to show values.

• Cables: These are wires that transmit electricity between different components of the system. Cables can be classified into two types: DC cables and AC cables. DC cables carry direct current from the solar modules to the inverters or batteries, while AC cables carry alternating current from the inverters to the grid or loads.

The layout of a photovoltaic power plant depends on several factors, such as site conditions, system size, design objectives, and grid requirements. However, a typical layout consists of three main parts: generation part, transmission part, and distribution part.

The generation part includes solar modules, mounting structures, and inverters that produce electricity from sunlight.

The transmission part includes the cables, switches, and meters that transmit electricity from the generation part to the distribution part.

The distribution part includes the batteries, charge controllers, and loads that store or consume electricity.

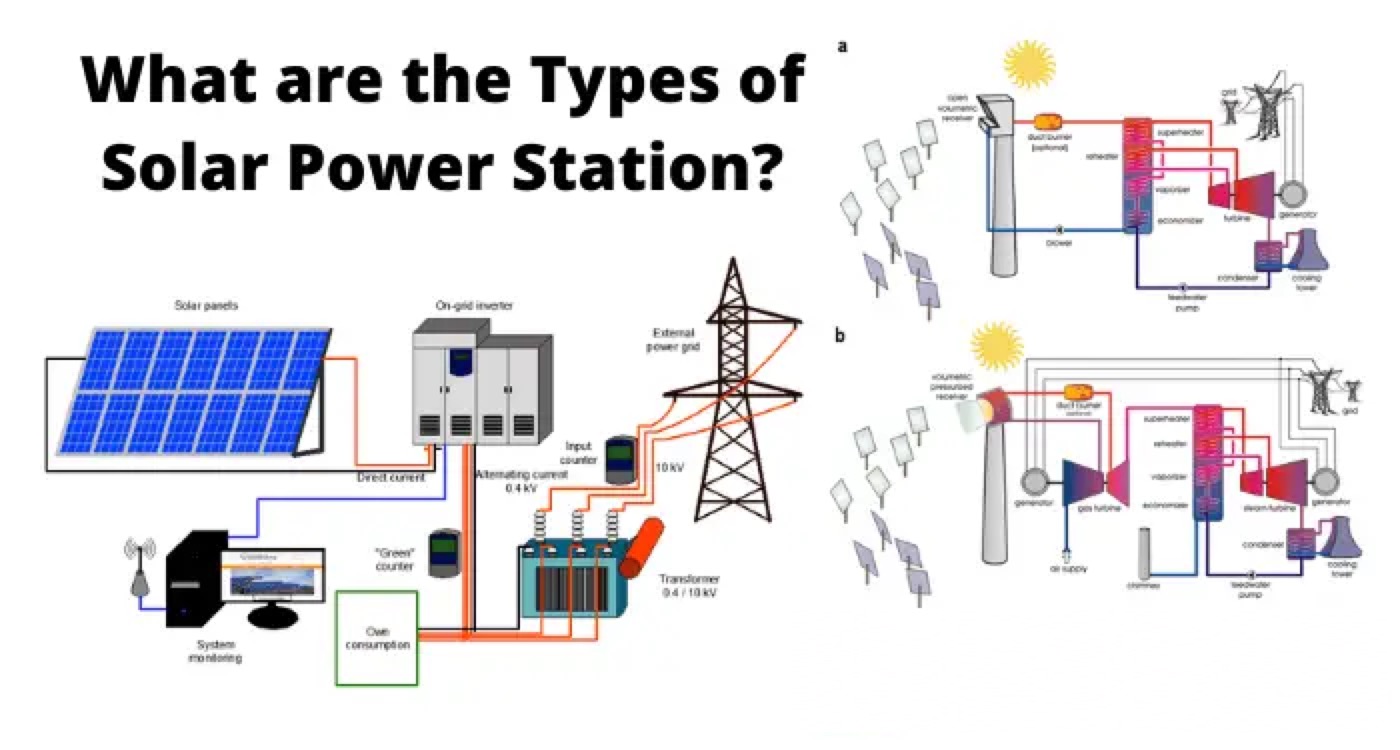

The following diagram shows an example of a photovoltaic power plant layout:

The operation of a photovoltaic power plant depends on several factors, such as weather conditions, load demand, and grid status. However, a typical operation consists of three main modes: charging mode, discharging mode, and grid-tie mode.

The charging mode occurs when there is excess sunlight and low load demand. In this mode, the solar modules generate more electricity than is needed by the loads. The excess electricity is used to charge the batteries through the charge controllers.

The discharging mode occurs when there is no sunlight or high load demand. In this mode, the solar modules generate less electricity than is needed by the loads. The deficit electricity is supplied by the batteries through the inverters.

The grid-tie mode occurs when there is grid availability and favorable tariff rates. In this mode, the solar modules generate electricity that can be fed into the grid through the inverters.

The grid-tie mode can also occur when there is a grid outage, and backup power is needed. In this mode, the solar modules generate electricity that can be used by the loads through the inverters.

What is a Concentrated Solar Power Plant?

A concentrated solar power plant is a large-scale CSP system that uses mirrors or lenses to concentrate sunlight onto a receiver that heats a fluid that drives a turbine or engine to generate electricity. A concentrated solar power plant consists of several components, such as:

• Collectors: These are devices that reflect or refract sunlight onto a receiver. Collectors can be classified into four types: parabolic troughs, parabolic dishes, linear Fresnel reflectors and central receivers. Parabolic troughs are curved mirrors that focus sunlight onto a linear receiver tube that runs along their focal line. Parabolic dishes are concave mirrors that focus sunlight onto a point receiver at their focal point. Linear Fresnel reflectors are flat mirrors that reflect sunlight onto a linear receiver tube above them. Central receivers are towers surrounded by an array of flat mirrors called heliostats that reflect sunlight onto a point receiver at their top.

• Receivers: These are devices that absorb concentrated sunlight and transfer it to a heat transfer fluid (HTF). Receivers can be classified into two types: external receivers and internal receivers. External receivers are exposed to the atmosphere and have high heat losses due to convection and radiation. Internal receivers are enclosed in a vacuum chamber and have low heat losses due to insulation and evacuation.

• Heat transfer fluids: These are fluids that circulate through the receivers and transport heat from the collectors to the power block. Heat transfer fluids can be classified into two types: thermal fluids and molten salts. Thermal fluids are organic liquids such as synthetic oils or hydrocarbons that have high boiling points and low freezing points. Molten salts are inorganic compounds such as sodium nitrate or potassium nitrate that have a high heat capacity and low vapor pressure.

• Power block: This is where electricity is generated from heat using a turbine or engine coupled with a generator. Power block can be classified into two types: steam cycle and Brayton cycle. The steam cycle uses water as HTF and produces steam that drives a steam turbine connected to an electric generator. Brayton cycle uses air as HTF and produces hot air that drives a gas turbine connected to an electric generator.

• Storage system: This is where excess heat is stored for later use when there is no sunlight or when there is high load demand. Storage systems can be classified into two types: sensible heat storage and latent heat storage. Sensible heat storage uses materials such as rocks, water, or molten salts that store heat by increasing their temperature without changing their phase. Latent heat storage uses materials such as phase change materials (PCMs) or thermochemical materials (TCMs) that store heat by changing their phase or chemical state without changing their temperature.

The layout of a concentrated solar power plant depends on several factors, such as site conditions, system size, design objectives, and grid requirements. However, a typical layout consists of three main parts: collection field, power block, and storage system.

The collection field includes the collectors, receivers, and HTFs that collect and transport heat from sunlight.

The power block includes the turbines, engines,

generators and other equipment that convert heat into electricity.

The storage system includes tanks, vessels, and other devices that store heat for later use.

The operation of a concentrated solar power plant depends on several factors, such as weather conditions, load demand, and grid status. However, a typical operation consists of three main modes: charging mode, discharging mode, and grid-tie mode.

The charging mode occurs when there is excess sunlight and low load demand. In this mode, the collectors concentrate sunlight onto the receivers that heat the HTF. The HTF then flows to the power block or the storage system, depending on the system configuration and control strategy.

The discharging mode occurs when there is no sunlight or high load demand. In this mode, the HTF flows from the storage system to the power block, where it produces steam or hot air that drives the turbine or engine to generate electricity.

The grid-tie mode occurs when there is grid availability and favorable tariff rates. In this mode, the electricity generated by the power block can be fed into the grid through a transformer and a switch. The grid-tie mode can also occur when there is a grid outage, and backup power is needed. In this mode, the electricity generated by the power block can be used by the loads through an inverter and a switch.

Advantages and Disadvantages of Solar Power Plants

Solar power plants have several advantages and disadvantages compared to other sources of energy. Some of them are:

• Advantages:

• Solar power plants use renewable and clean energy that does not emit greenhouse gases or pollutants.

• Solar power plants can reduce dependence on fossil fuels and enhance energy security and diversity.

• Solar power plants can provide electricity in remote areas where grid connection is not feasible or reliable.

• Solar power plants can create local jobs and economic benefits for communities and regions.

• Solar power plants can benefit from various incentives and policies that support renewable energy development and deployment.

• Disadvantages:

• Solar power plants require large land areas and may have environmental impacts on wildlife, vegetation, and water resources.

• Solar power plants have high initial capital costs and long payback periods compared to conventional power plants.

• Solar power plants have low capacity factors and depend on weather conditions and diurnal cycles that affect their output and reliability.

• Solar power plants need backup or storage systems to ensure a continuous supply of electricity during periods of low or no sunlight.

• Solar power plants face technical challenges such as grid integration, interconnection, transmission, and distribution.

Conclusion

Solar power plants are systems that use solar energy to generate electricity. They can be classified into two main types: photovoltaic (PV) power plants and concentrated solar power (CSP) plants. Photovoltaic power plants convert sunlight directly into electricity using solar cells, while concentrated solar power plants use mirrors or lenses to concentrate sunlight and heat a fluid that drives a turbine or engine.

Both types of solar power plants have several components, such as collectors, receivers, inverters, batteries, turbines, engines, generators, switches, meters, and cables. The layout and operation of solar power plants depend on several factors, such as site conditions, system size, design objectives, and grid requirements. However, a typical layout consists of three main parts: generation part, transmission part, and distribution part.

A typical operation consists of three main modes: charging mode, discharging mode, and grid-tie mode. Solar power plants have several advantages and disadvantages compared to other sources of energy. Some of them are renewable and clean energy, reduced dependence on fossil fuels, enhanced energy security and diversity, provision of electricity in remote areas, creation of local jobs and economic benefits, high initial capital costs, long payback periods, low capacity factors, dependence on weather conditions and diurnal cycles, need for backup or storage systems, technical challenges such as grid integration, interconnection, transmission, and distribution.
